Consult-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

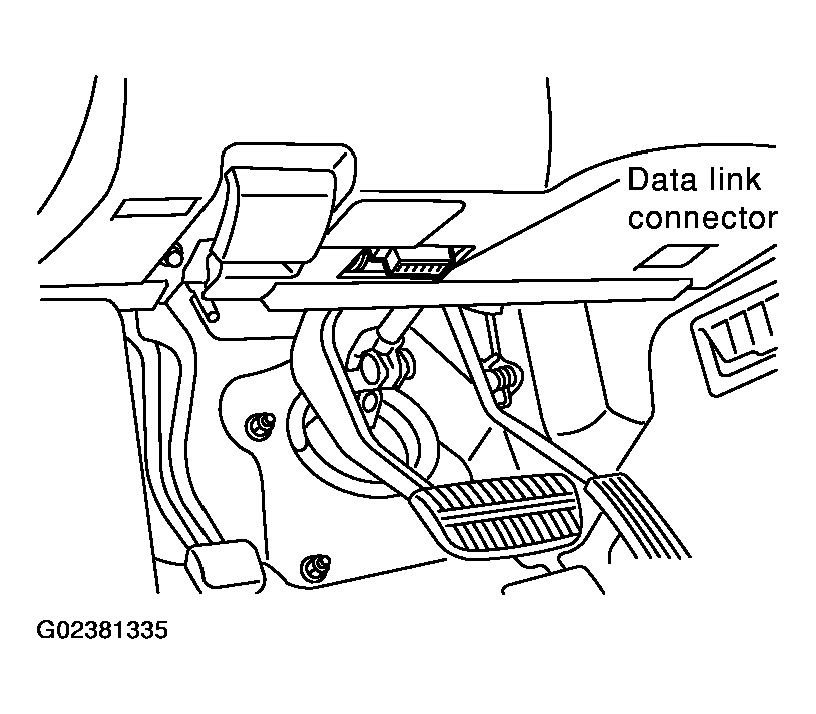

    Fig 1: Identifying Consult-II Converter To Data Link Connector
    G02381335Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

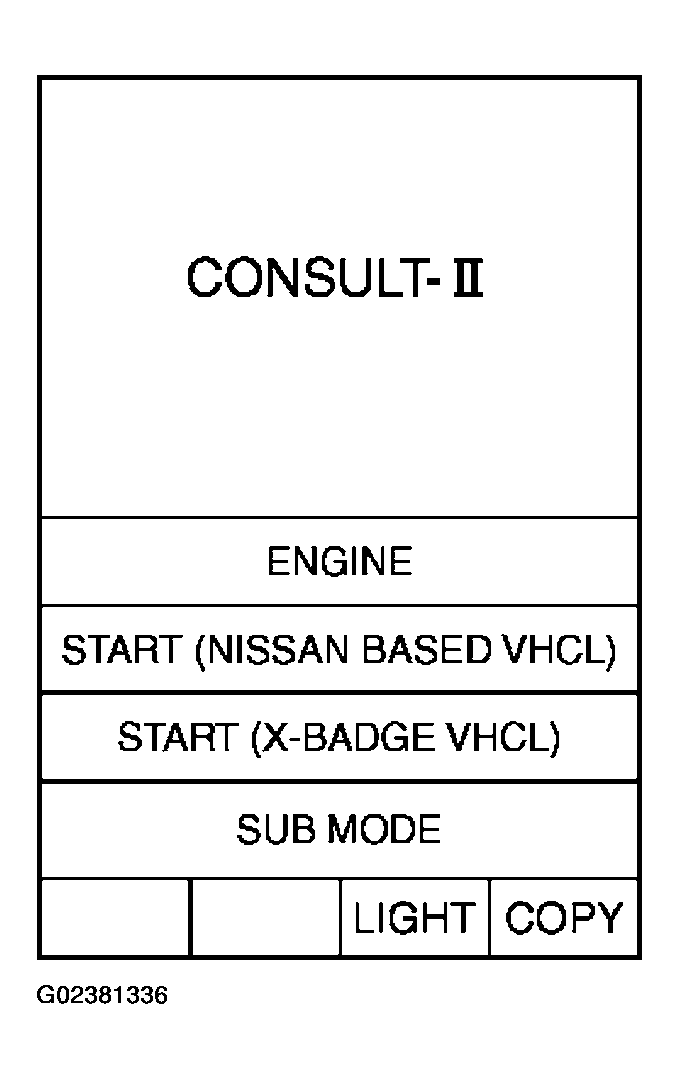

    Fig 2: Displaying Consult II
    G02381336Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "MULTIAV". If "MULTIAV" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

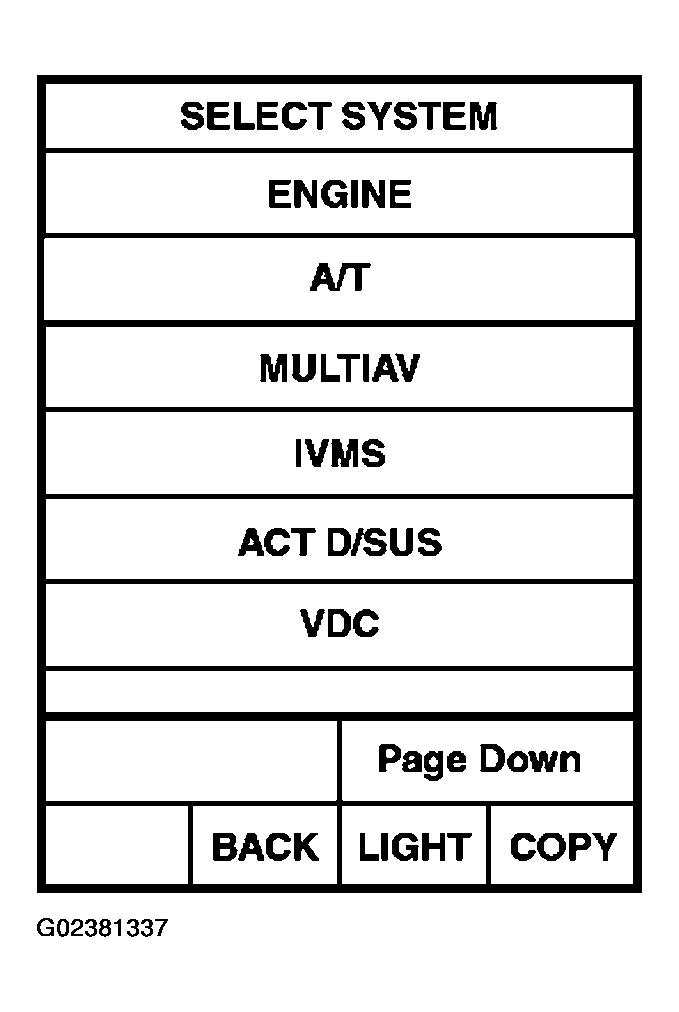

    Fig 3: Displaying Consult II Select System
    G02381337Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Select "VERSION", "SELF-DIAG RESULTS" or "SIGNAL MONITOR".
