Removal and Installation for Voice Activated Control Module: Removal

  1. Remove trunk trim. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
  2. Remove the bolts (3), and disconnect connectors.
  3. Remove voice activated control module.

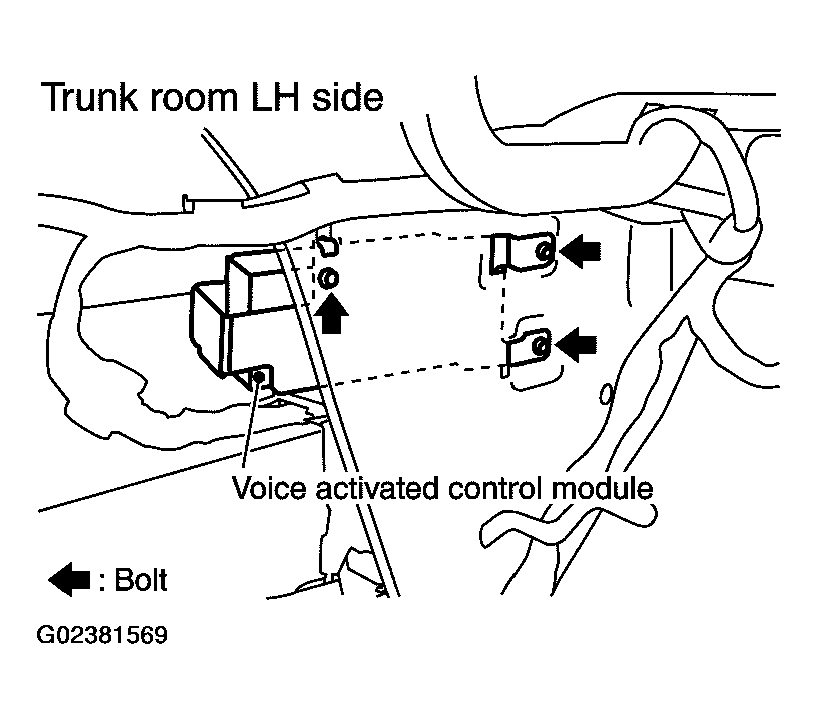

    Fig 1: Removing Voice Activated Control Module
    G02381569Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove bracket from voice activated control module.
    Fig 2: Removing Bracket From Voice Activated Control Module
    G02381570Courtesy of NISSAN MOTOR CO., U.S.A.
