Consult-II Basic Operation Procedure

With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

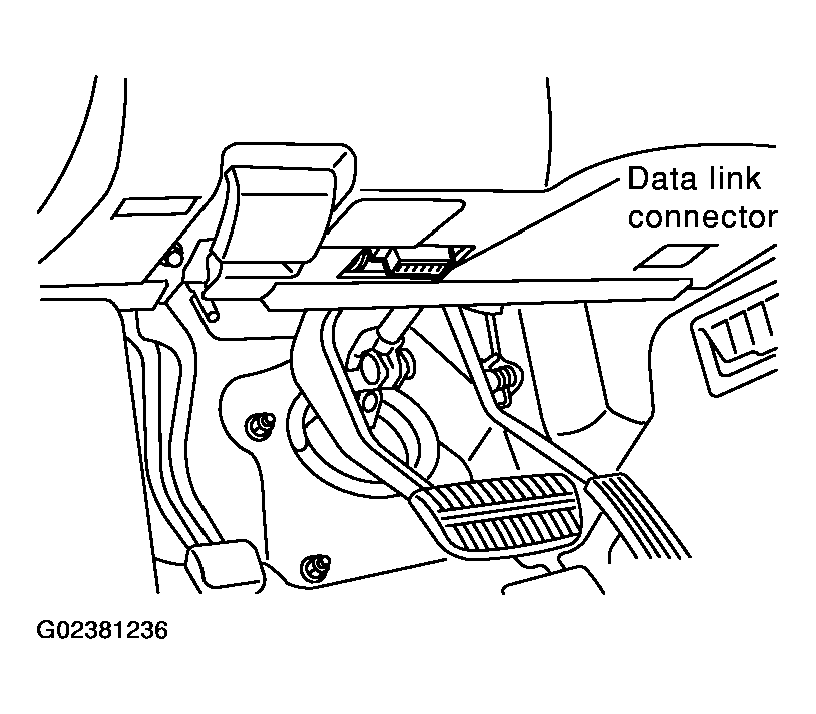

Fig 1: Identifying Ignition Switch Off
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying Consult II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Displaying Consult II Select System (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

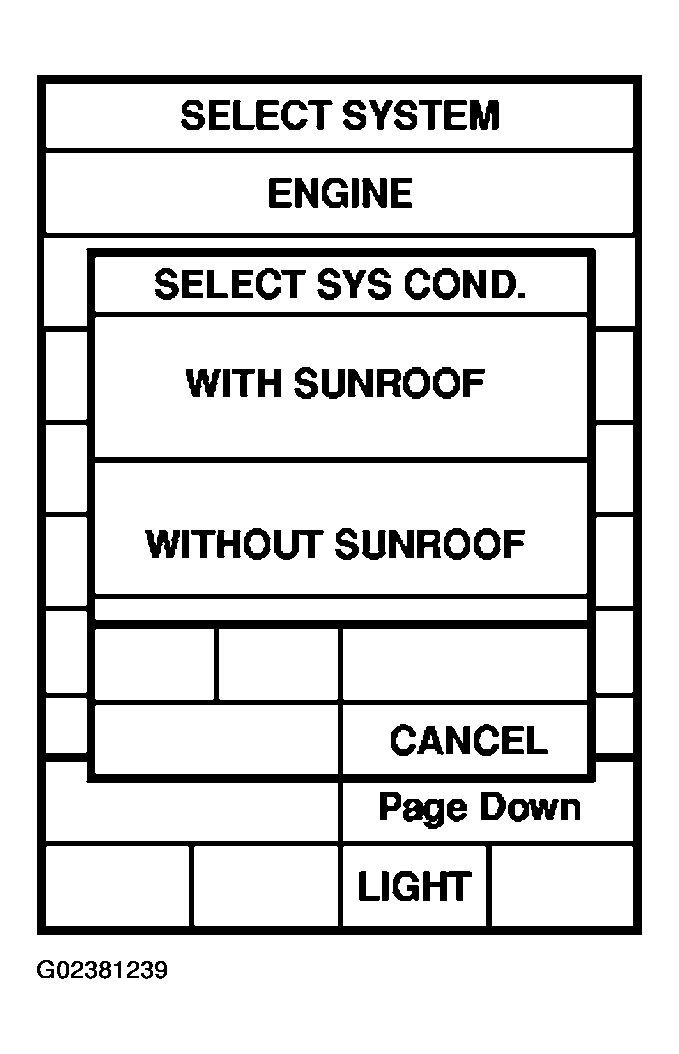

Fig 4: Displaying Consult II Select System (2 Of 2)
