Troubleshooting Chart

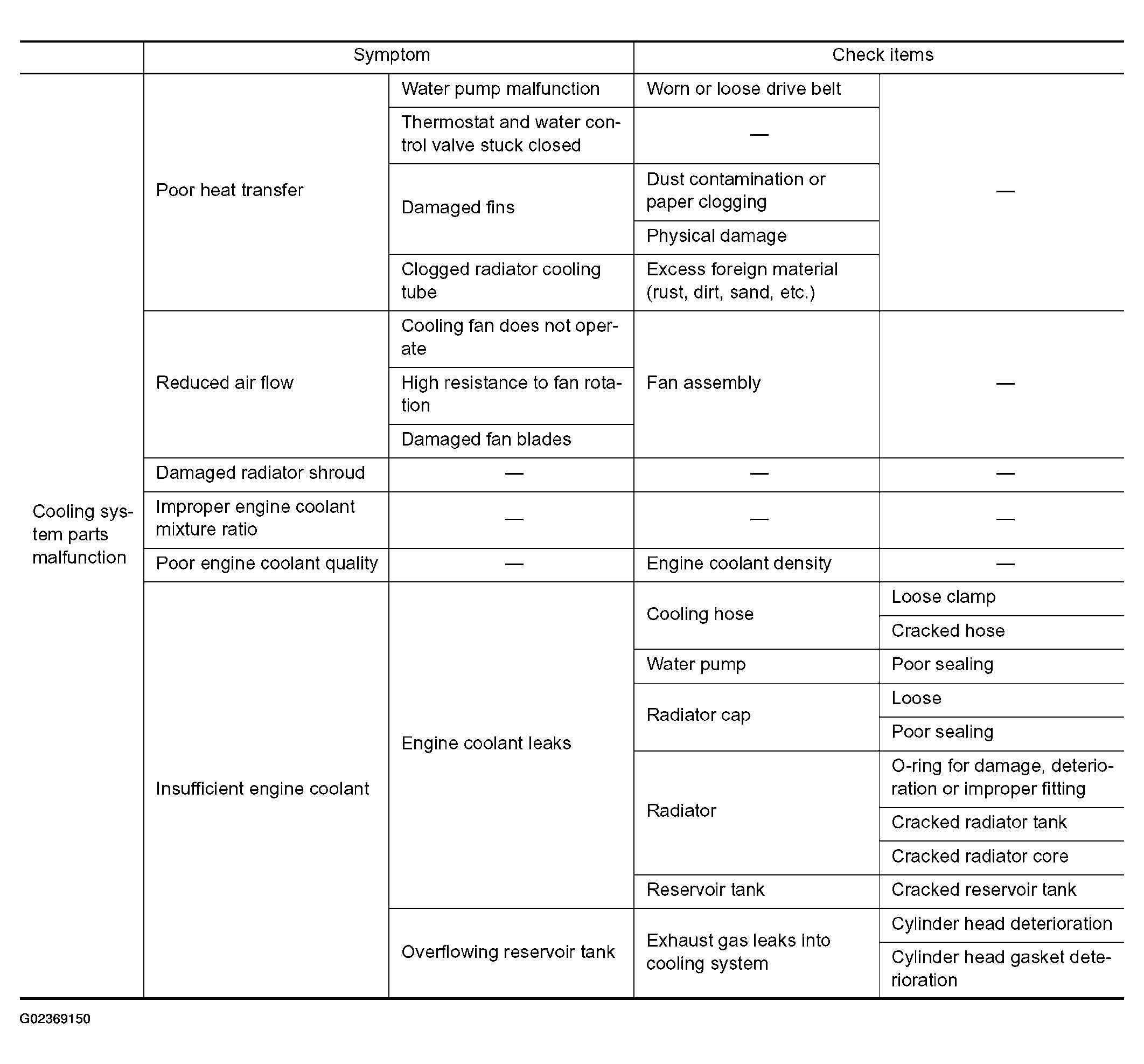

Fig 1: Troubleshooting Chart (1 Of 2)
G02369150Courtesy of NISSAN MOTOR CO., U.S.A.

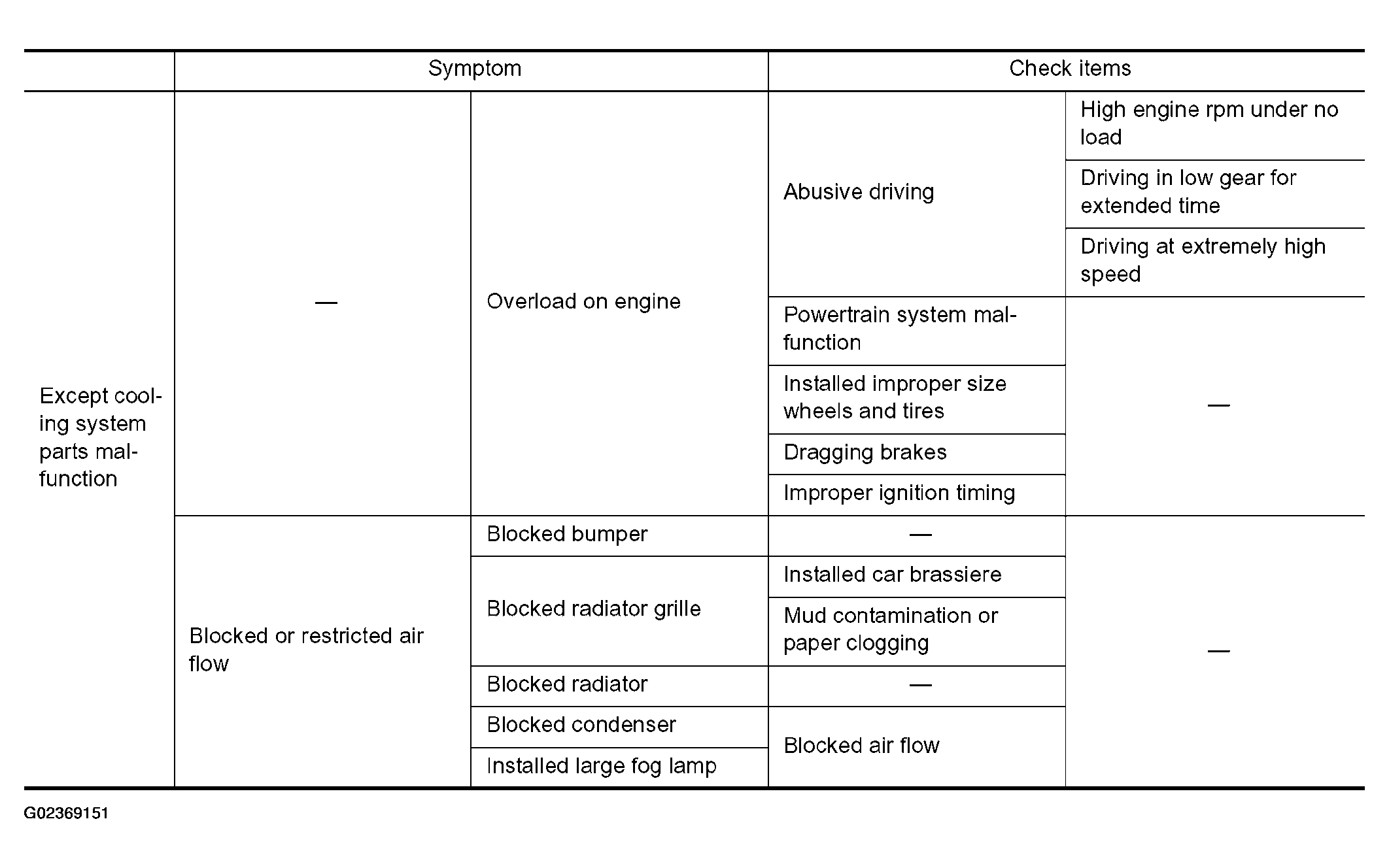

Fig 2: Troubleshooting Chart (2 Of 2)
G02369151Courtesy of NISSAN MOTOR CO., U.S.A.
