With Consult-II

  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.
  5. Make sure that "FUEL T/TEMP SE" is more than 0°C (32°F).
  6. Wait at least 10 seconds.
  7. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

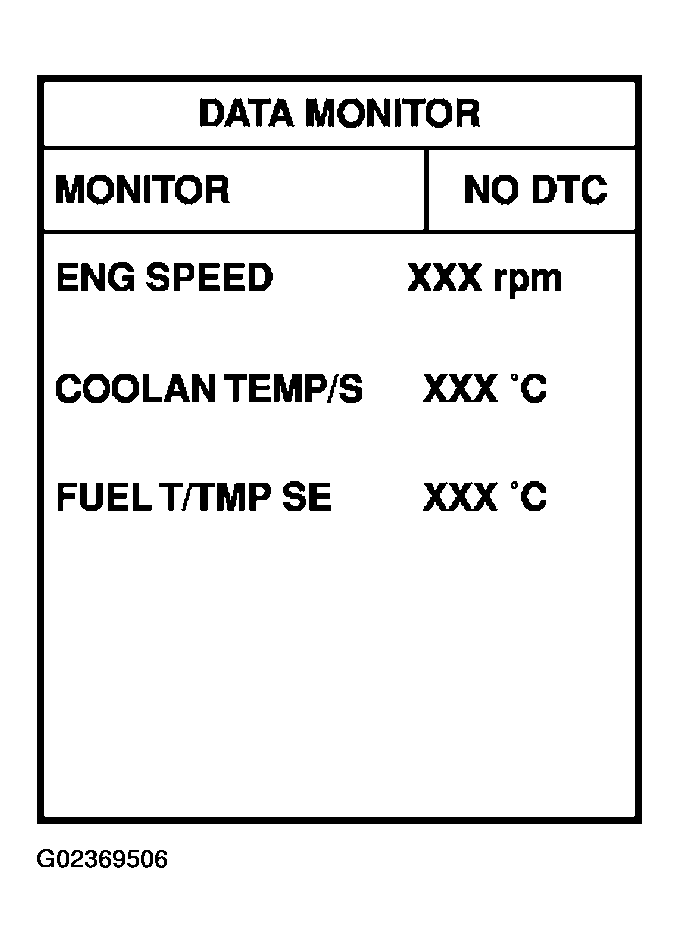

Fig 1: CONSULT-II Data Monitor Mode Reference
G02369506Courtesy of NISSAN MOTOR CO., U.S.A.
