Water Separator

  1. Check visually for insect nests in the water separator air inlet.
  2. Check visually for cracks or flaws in the appearance.
  3. Check visually for cracks or flaws in the hose.
  4. Check that A  and C  are not clogged by blowing air into B  with A  , and then C  plugged.
  5. In case of NG in items 2 - 4, replace the parts.
    NOTE:
    • Do not disassemble water separator.

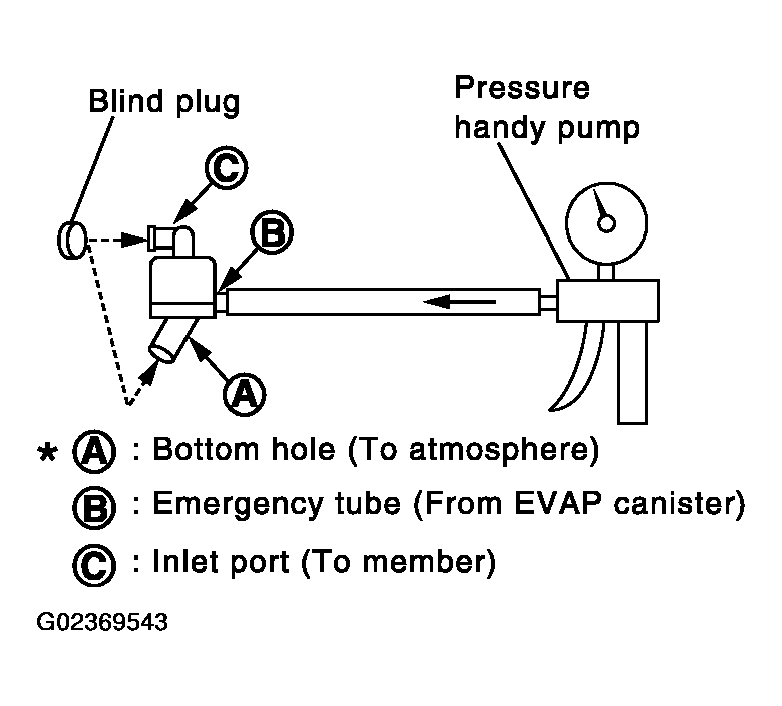

    Fig 1: Locating Component
    G02369543Courtesy of NISSAN MOTOR CO., U.S.A.
