Throttle Control Motor

Disconnect electric throttle control actuator harness connector.
Check resistance between terminals 3 and 6.
1. Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
If NG, replace electric throttle control actuator and go to next step.
Perform " THROTTLE VALVE CLOSED POSITION LEARNING " .
Perform " IDLE AIR VOLUME LEARNING " .

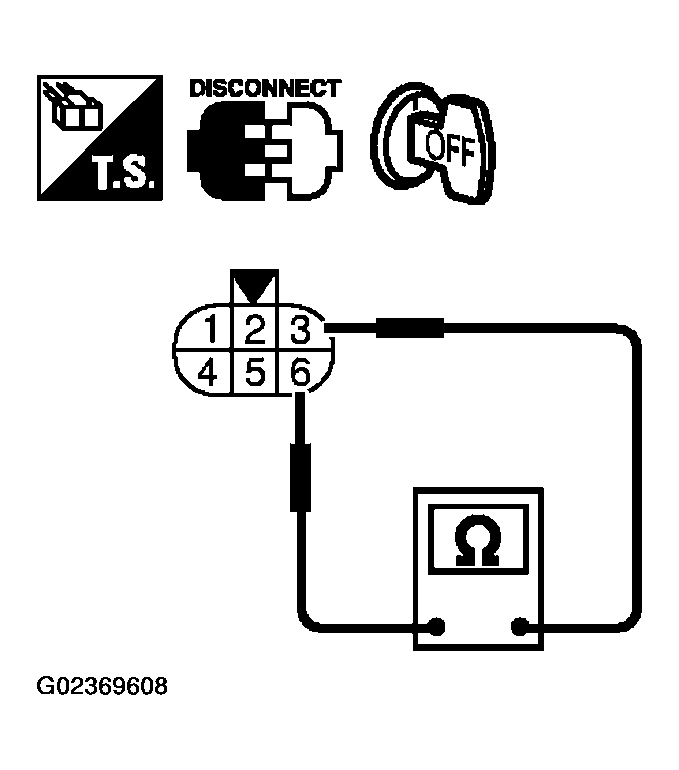

Fig 1: Checking Resistance Between Terminals 3 And 6

Courtesy of NISSAN MOTOR CO., U.S.A.
