Cooling Fan Control

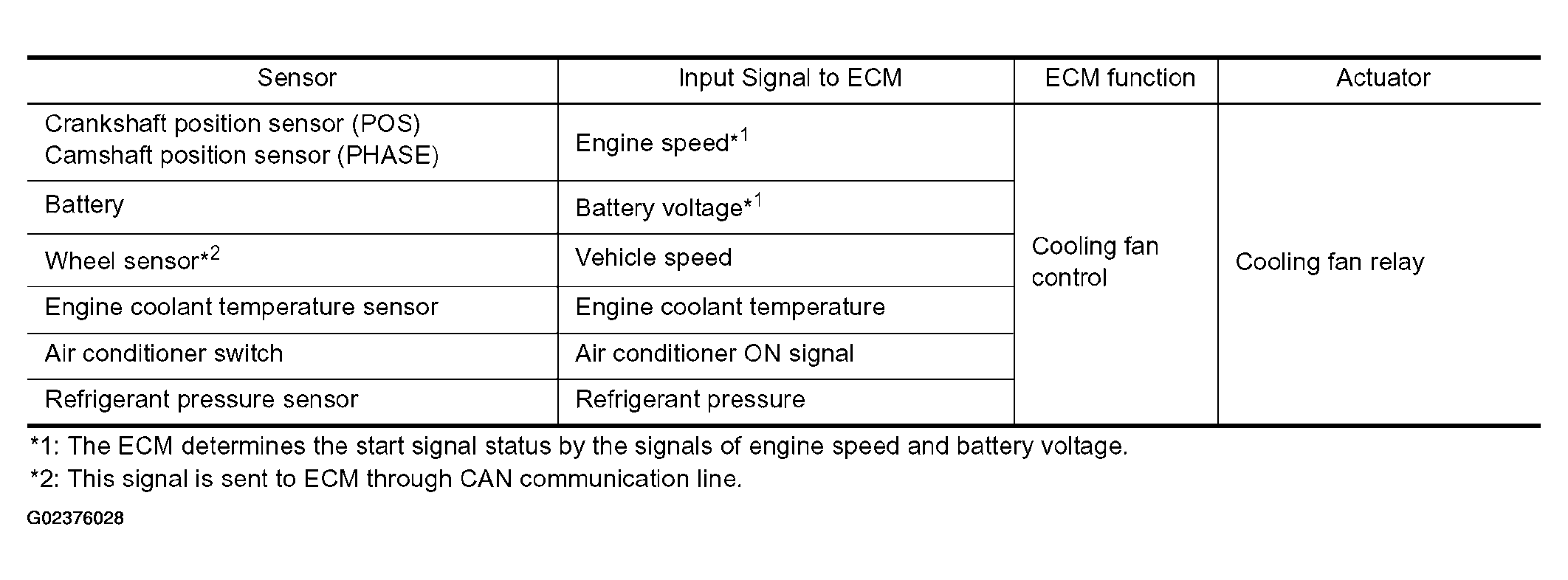

Fig 1: Cooling Fan Control Sensor Reference Chart
G02376028Courtesy of NISSAN MOTOR CO., U.S.A.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 4-step control [HIGH/MIDDLE/LOW/OFF].

Cooling Fan Operation

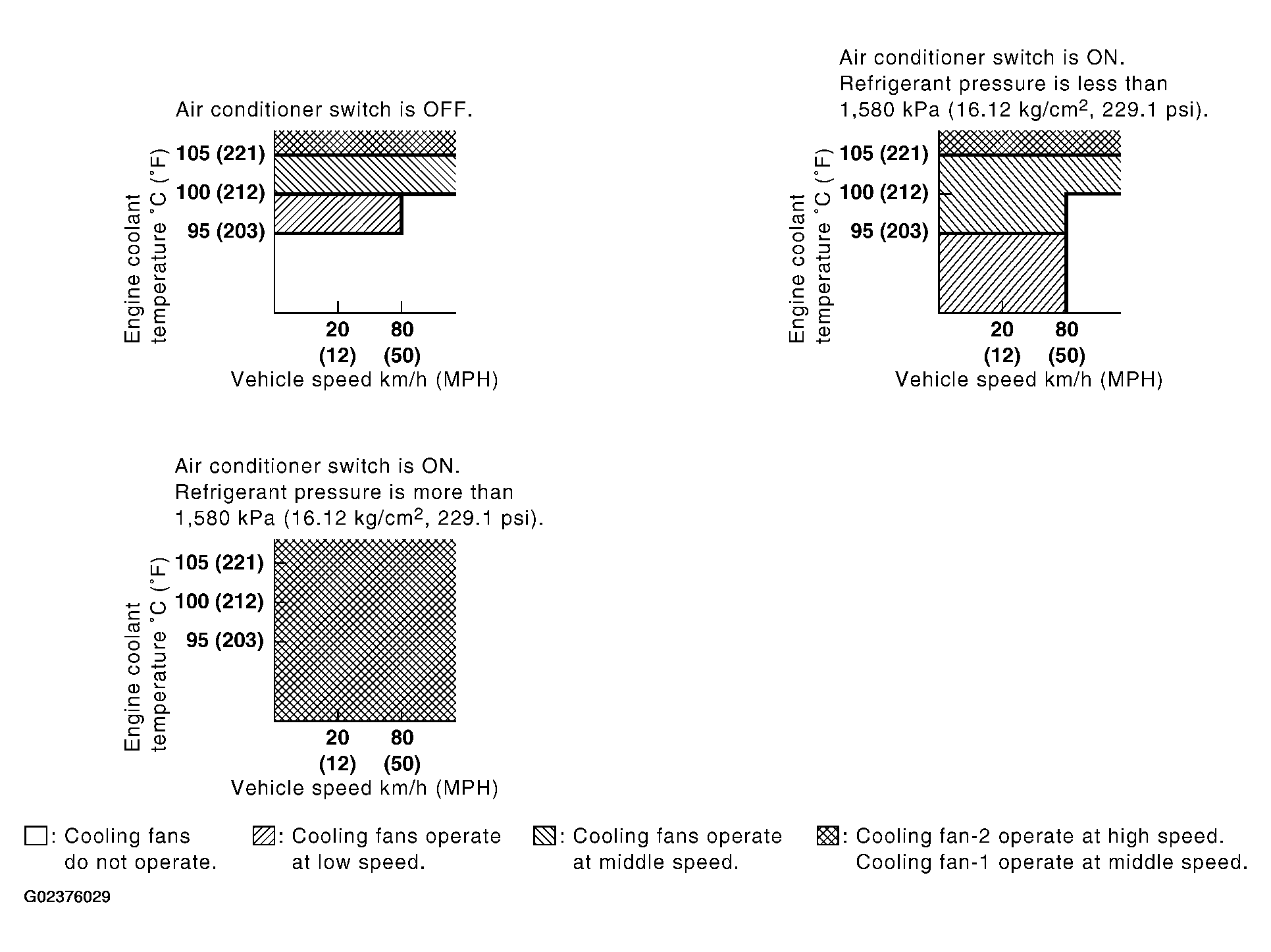

Fig 2: Cooling Fan Operation Conditions Graph
G02376029Courtesy of NISSAN MOTOR CO., U.S.A.
