ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between ASCD steering switch terminals 1 and 2 with pushing each switch.

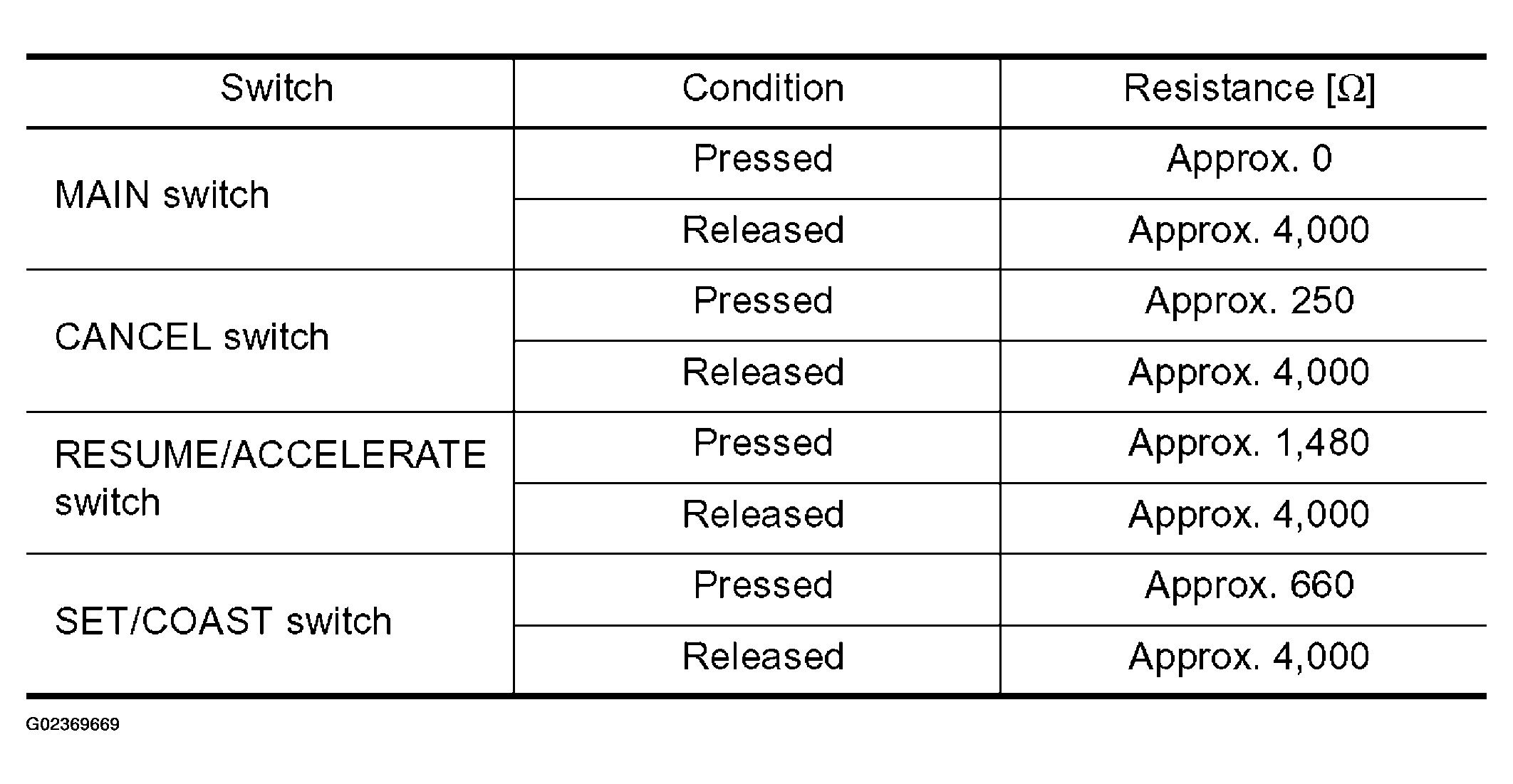

    Fig 1: ASCD Steering Switch Resistance Specifications
    G02369669Courtesy of NISSAN MOTOR CO., U.S.A.

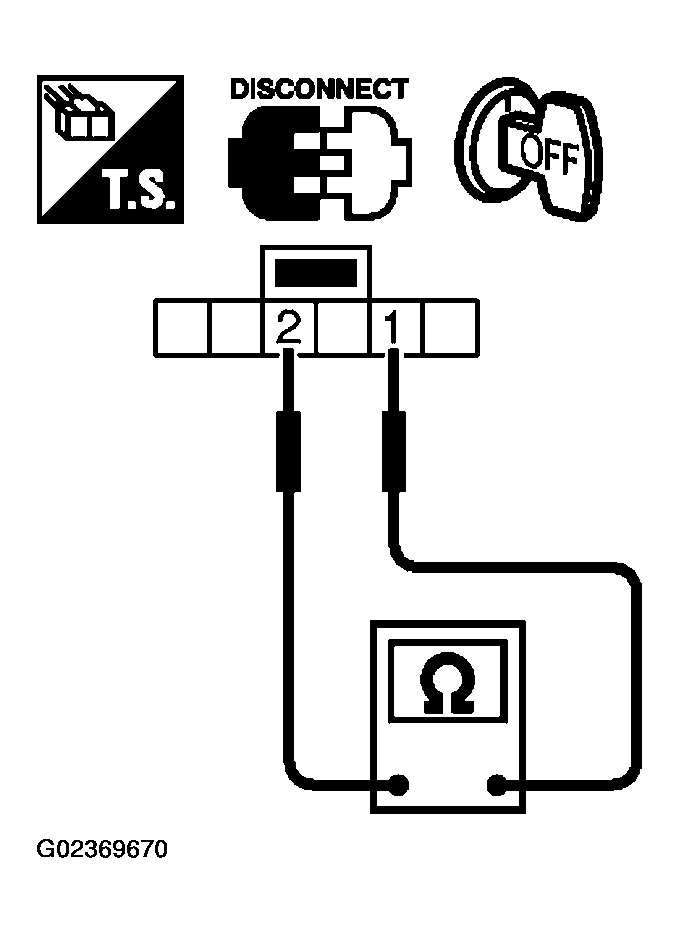

    Fig 2: Checking Continuity Between ASCD Steering Switch Terminals 1 And 2
    G02369670Courtesy of NISSAN MOTOR CO., U.S.A.
