Intake Valve Timing Control Position Sensor

Disconnect intake valve timing control position sensor harness connector.
Loosen the fixing bolt of the sensor.
Remove the sensor.
Visually check the sensor for chipping.

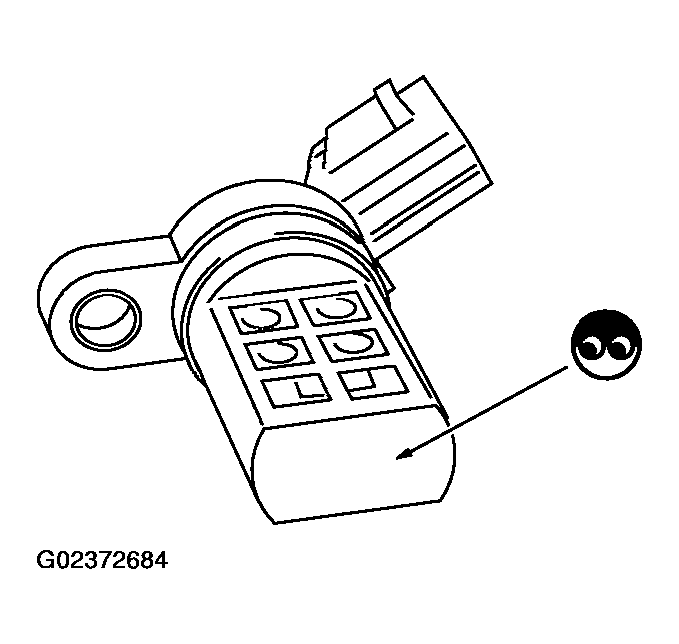

Fig 1: Identifying Sensor For Chipping
Courtesy of NISSAN MOTOR CO., U.S.A.
Check resistance as shown below.

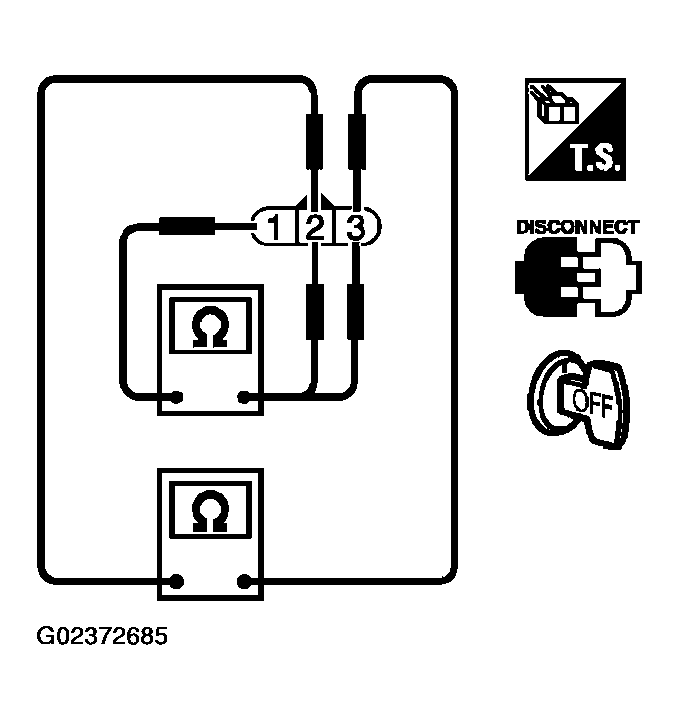

Fig 2: Checking Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace intake valve timing control position sensor.

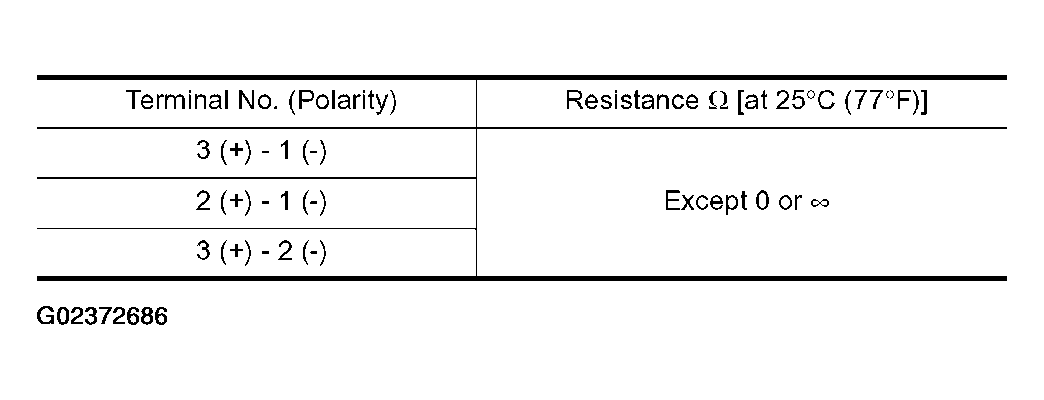

Fig 3: Resistance Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
