With GST

Start engine and warm it up to normal operating temperature.
Set voltmeter probes between ECM terminal 16 [HO2S1(B1) signal] or 35 [HO2S1(B2) signal] and ground.
Check the following with engine speed held at 2, 000 rpm constant under no load.
- The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V more than 5 times within 10 seconds.
  1. 1 time: 0 - 0.3V --> 0.6 - 1.0V --> 0 - 0.3V
  2. 2 times: 0 - 0.3V --> 0.6 - 1.0V --> 0 - 0.3V --> 0.6 - 1.0V --> 0 - 0.3V
If NG, go to "DIAGNOSTIC PROCEDURE ".

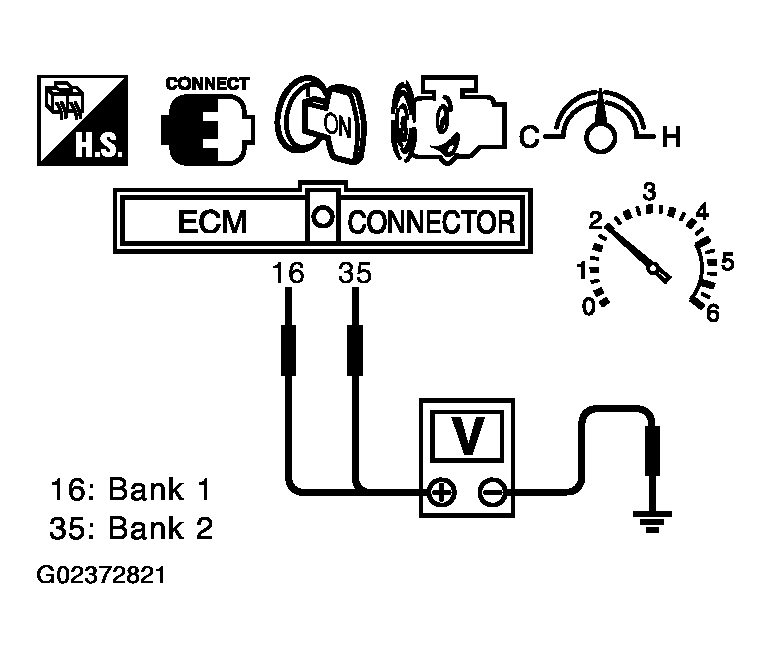

Fig 1: Checking Voltmeter Probes Between ECM Terminal 16 And 35
Courtesy of NISSAN MOTOR CO., U.S.A.
