With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Set voltmeter probes between ECM terminal 16 [HO2S1 (B1) signal] or 35 [HO2S1 (B2) signal] and ground.
  3. Check the following with engine speed held at 2, 000 rpm constant under no load.
    • The voltage does not remain in the range of 0.2 to 0.4V.
  4. If NG, go to "DIAGNOSTIC PROCEDURE ".

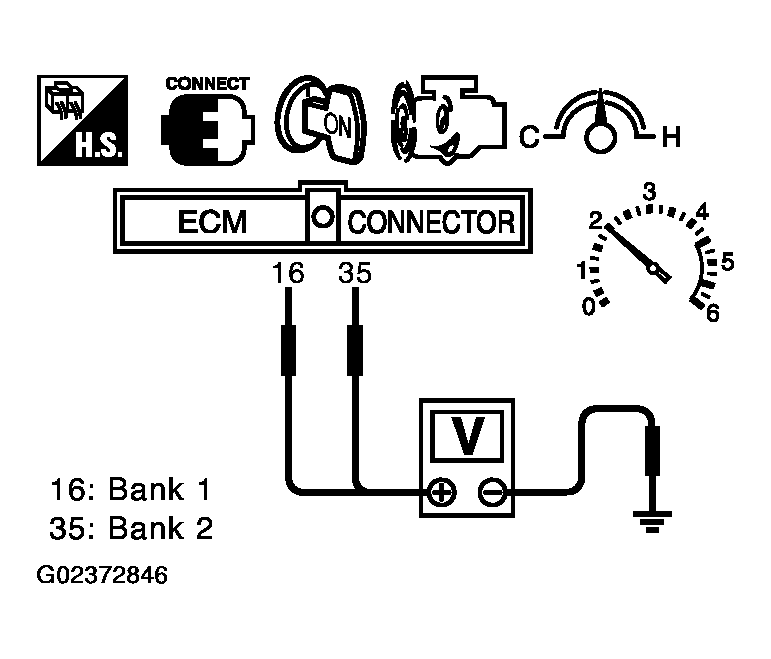

    Fig 1: Checking Voltmeter Probes Between ECM Terminal 16 And 35
    G02372846Courtesy of NISSAN MOTOR CO., U.S.A.
