Tightening Torque

Tighten EVAP canister as shown in the figure.

Make sure new O-ring is installed properly between EVAP canister and EVAP canister vent control valve.

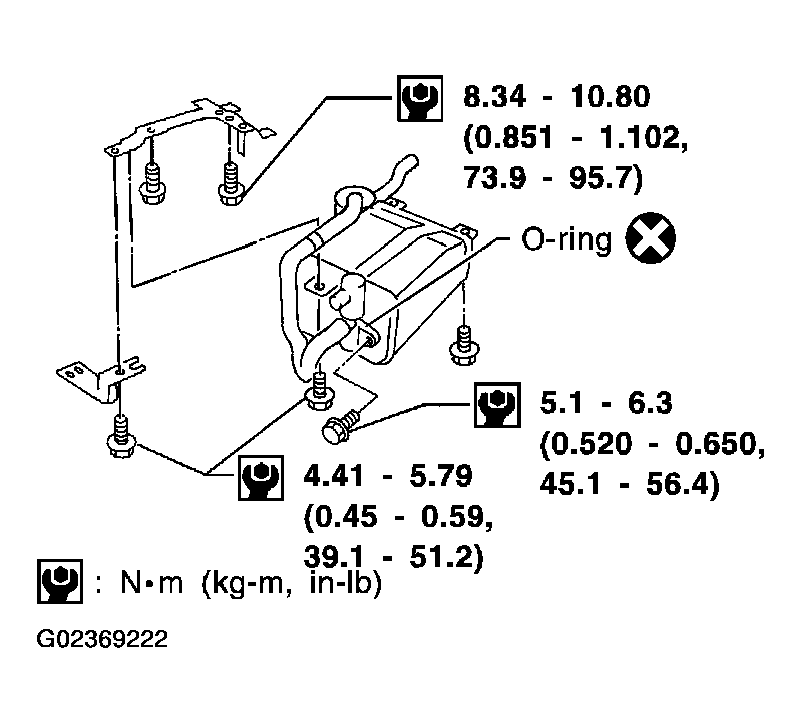

Fig 1: EVAP Canister Torque Specifications
G02369222Courtesy of NISSAN MOTOR CO., U.S.A.
