Evaporative Emission Line Drawing

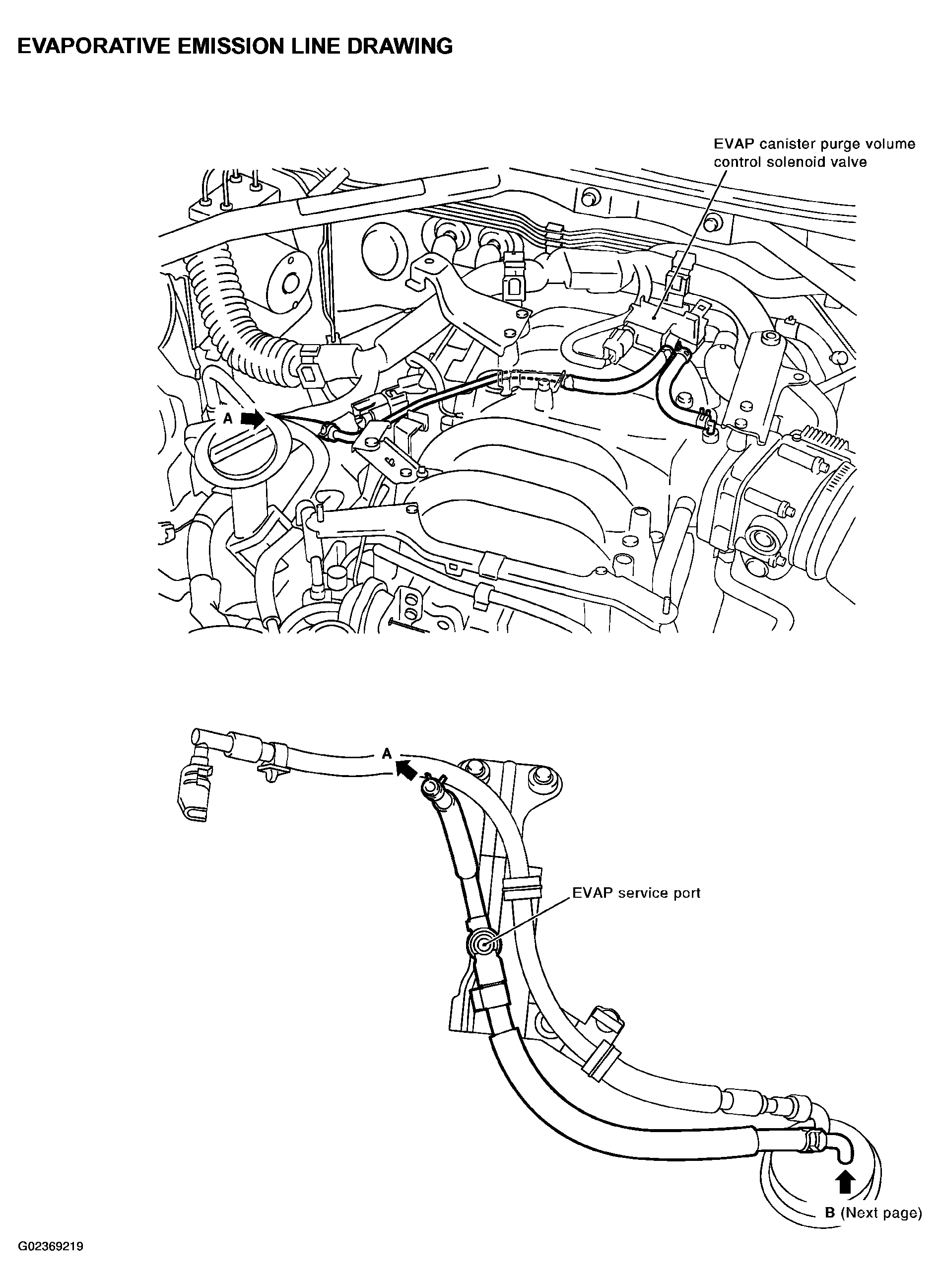

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

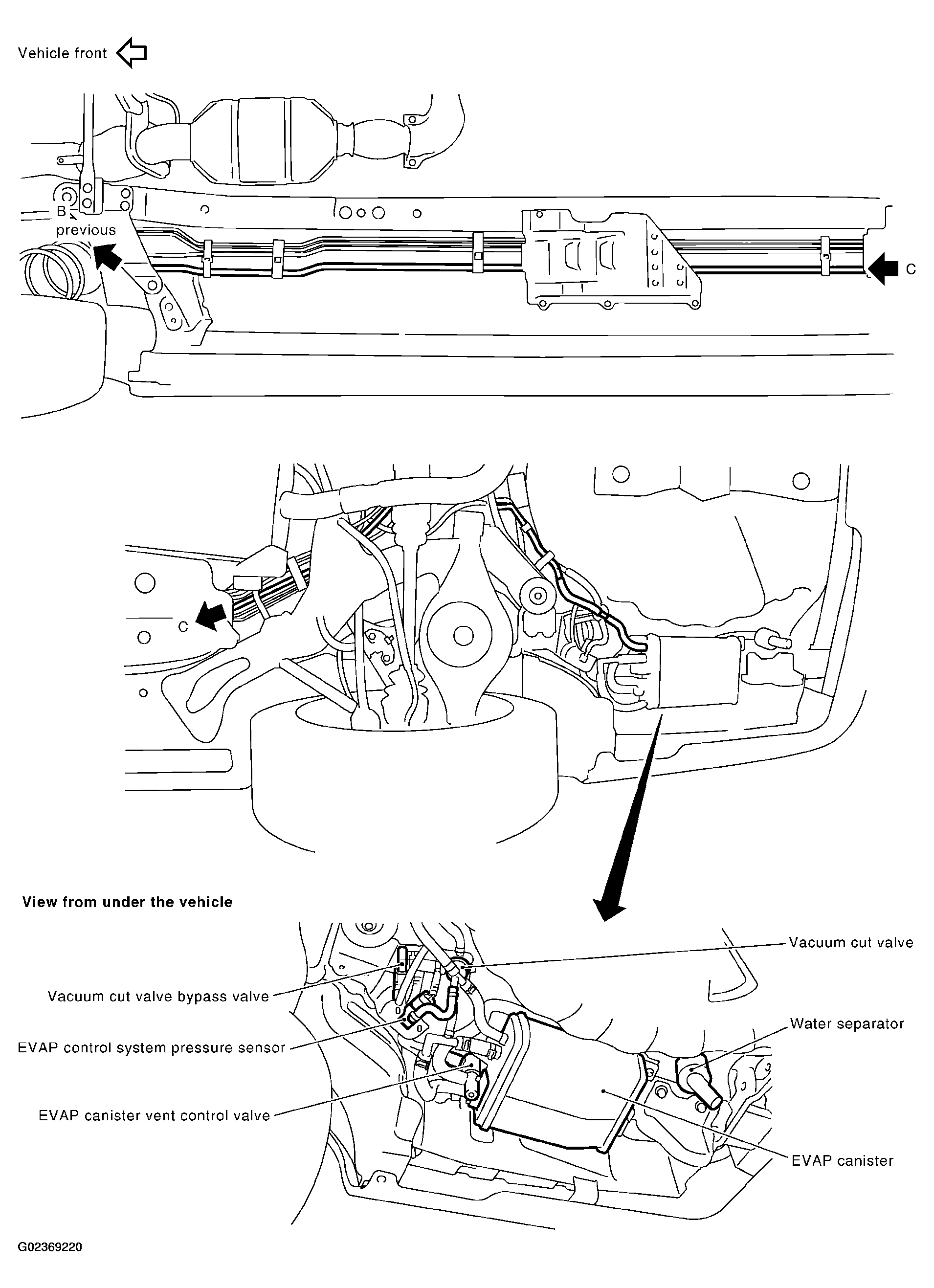

View from under the vehicle

Fig 2: Identifying EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.
