Diagnostic Trouble Codes No. Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

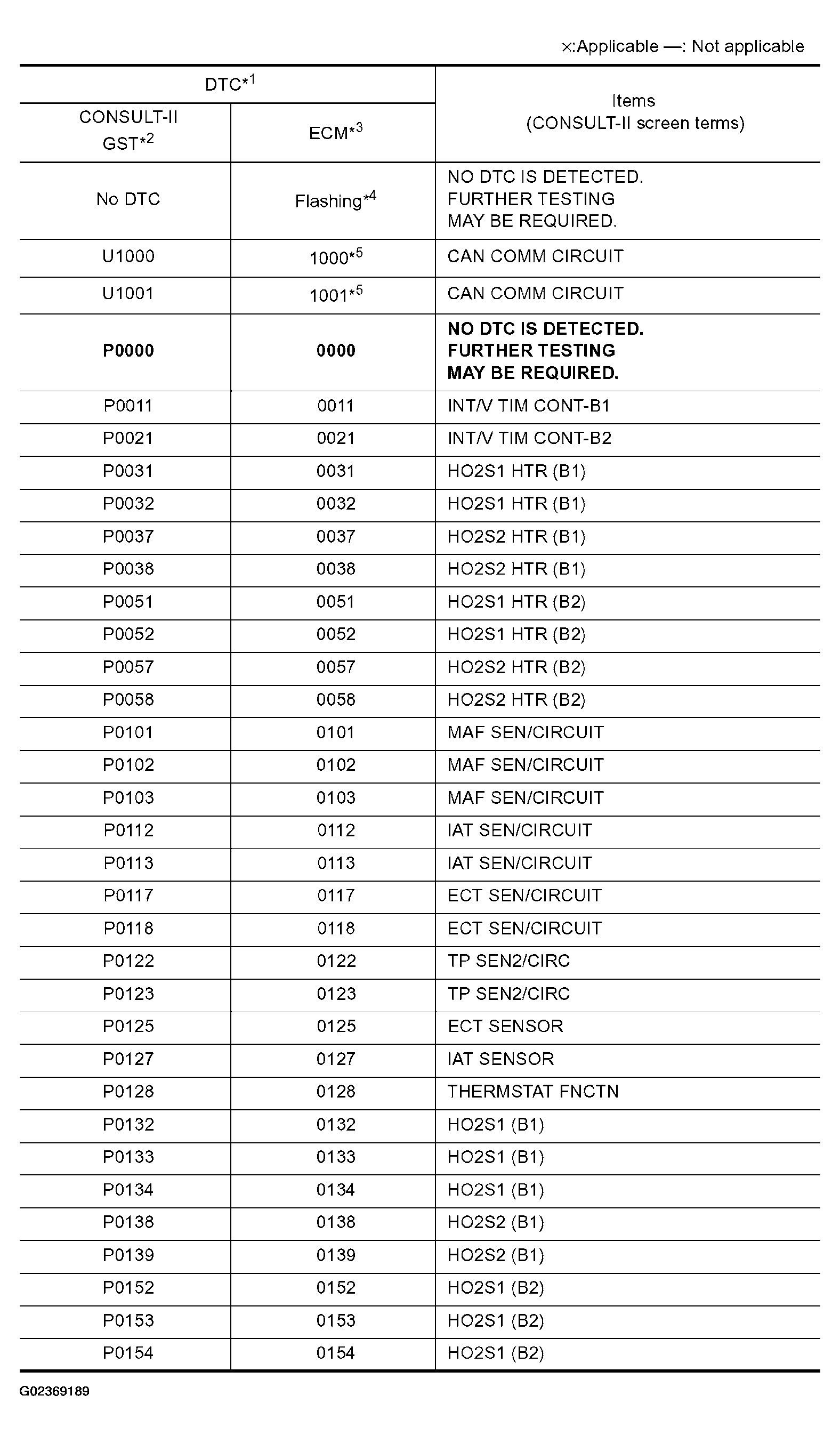

Fig 1: DTC Troubleshooting Chart (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

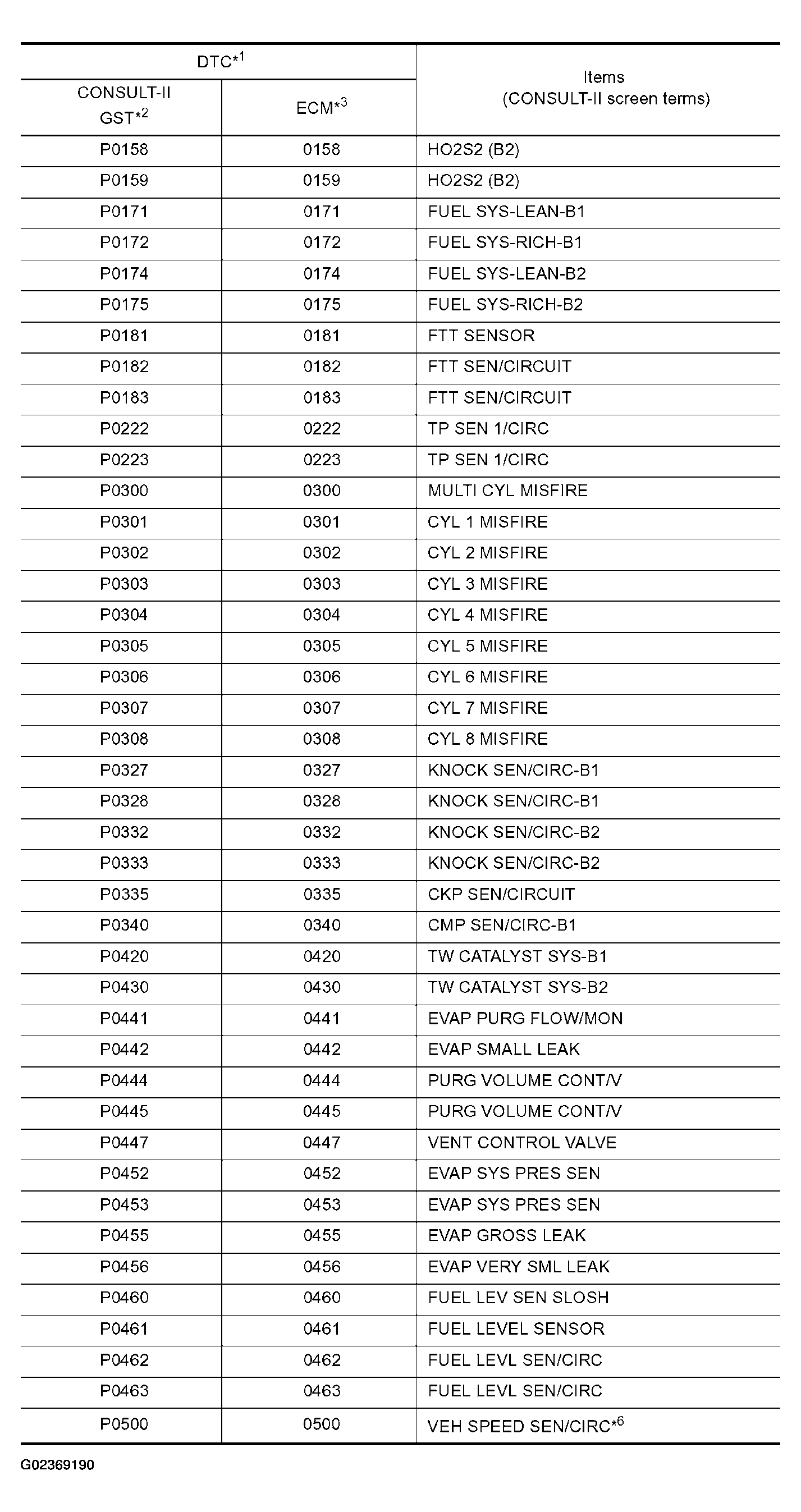

Fig 2: DTC Troubleshooting Chart (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

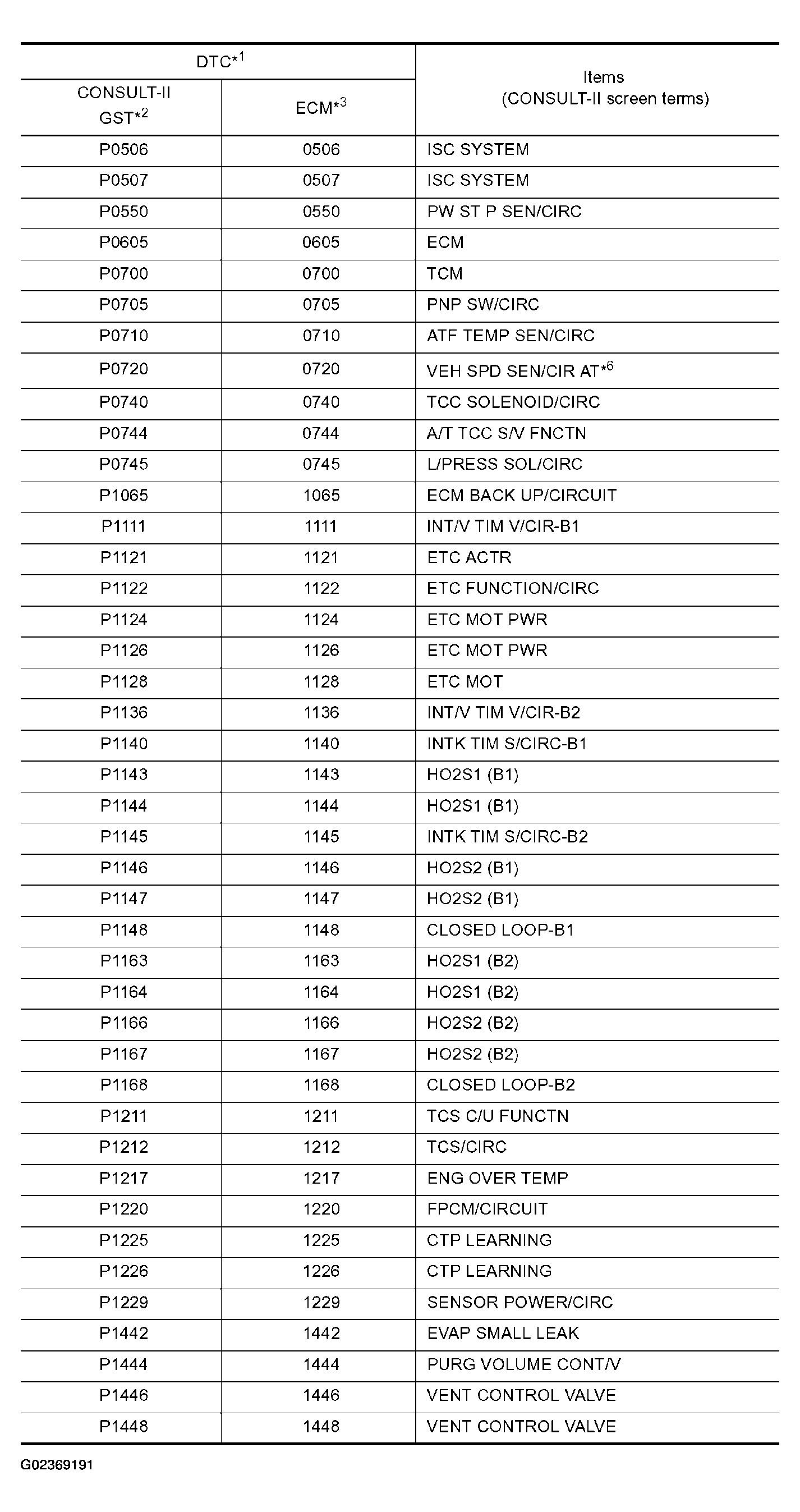

Fig 3: DTC Troubleshooting Chart (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

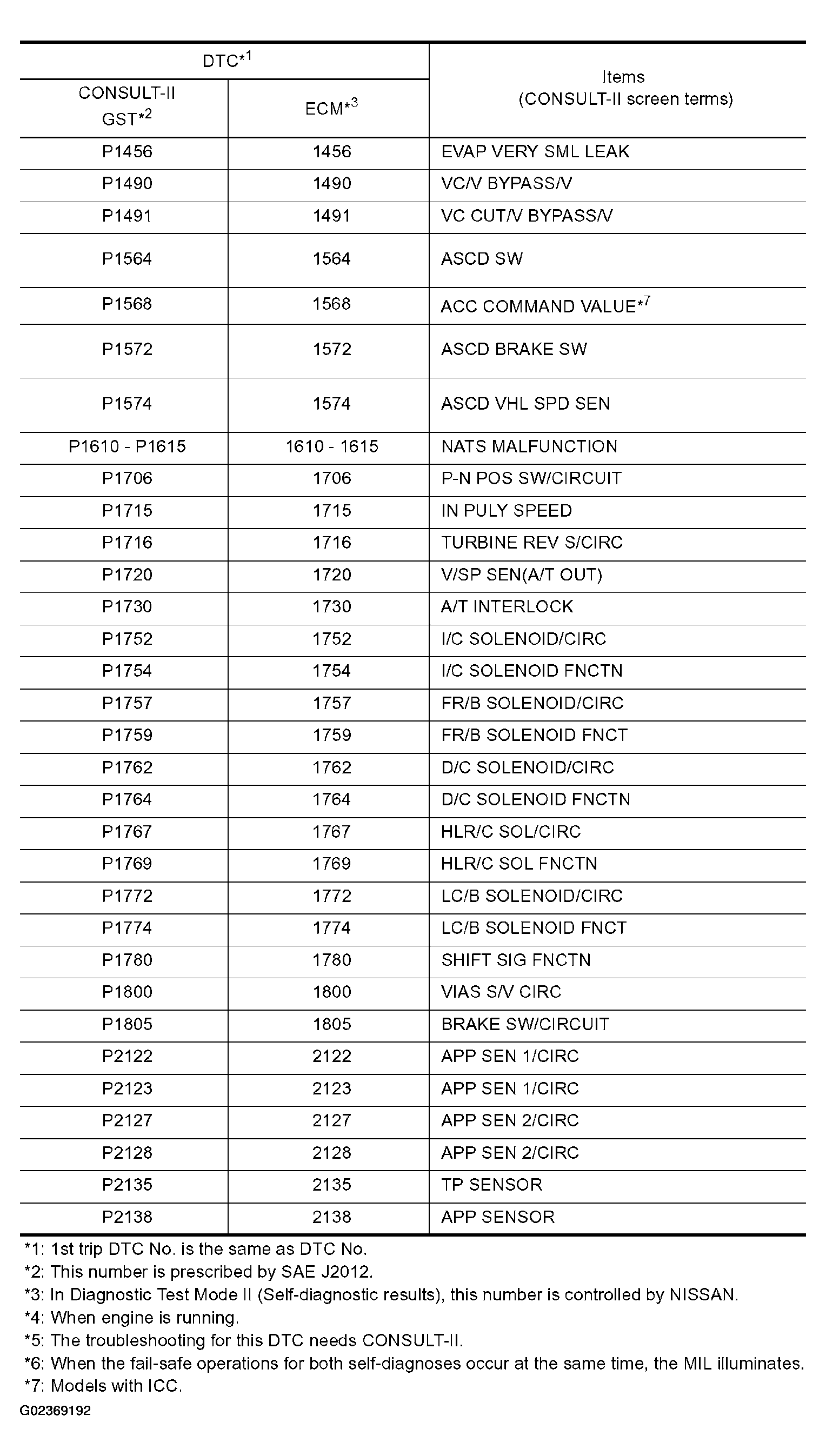

Fig 4: DTC Troubleshooting Chart (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
