Malfunction Indicator Lamp (MIL): Description

The MIL is located on the instrument panel.

1. The MIL will light up when the ignition switch is turned ON without the engine running. This is a bulb check.

   If the MIL does not light up, refer to "WARNING LAMPS ", or see MIL AND DATA LINK CONNECTOR .

2. When the engine is started, the MIL should go off.

   If the MIL remains on, the on board diagnostic system has detected an engine system malfunction.

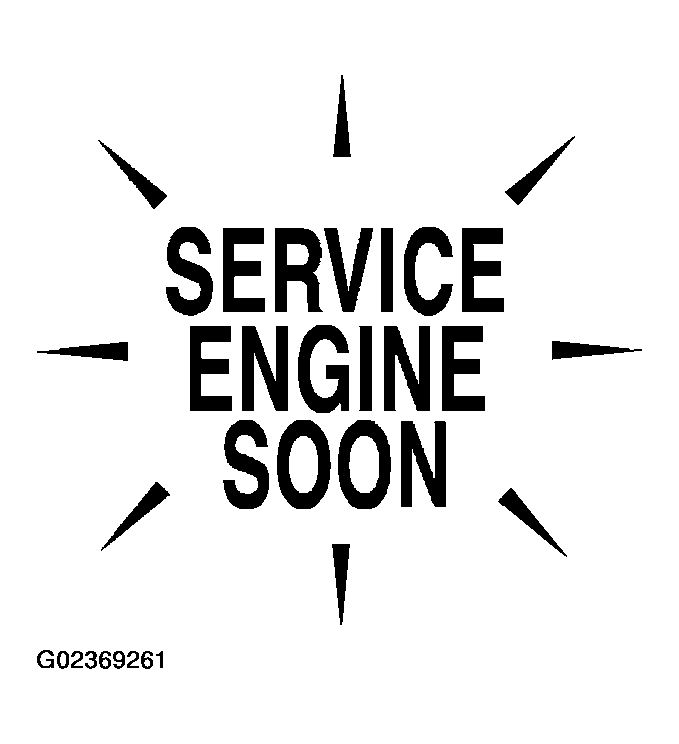

   Fig 1: Identifying Indicator Lamp

   Courtesy of NISSAN MOTOR CO., U.S.A.
