Overall Sequence

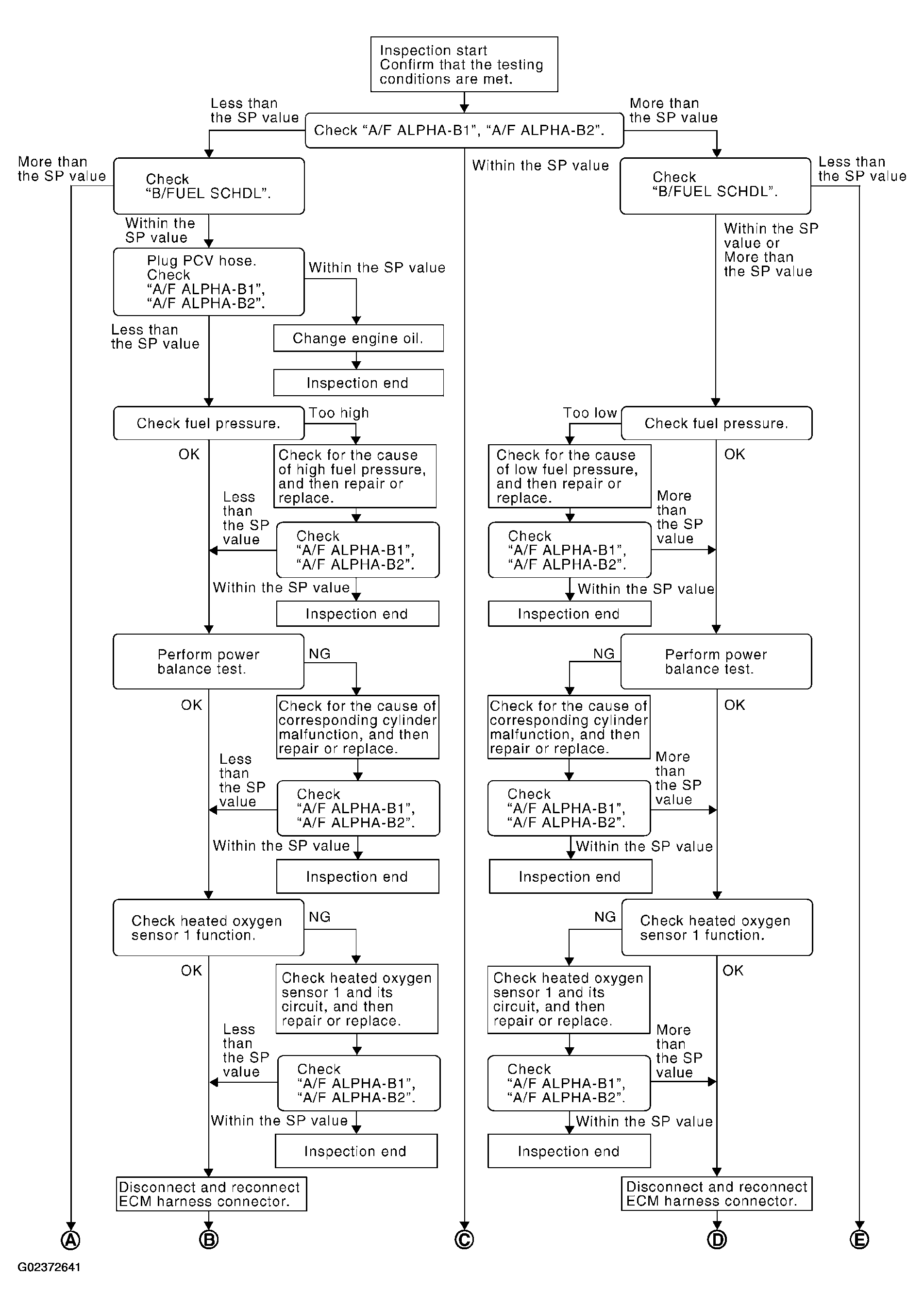

Fig 1: Diagnostic Flow Chart (1 Of 2)
G02372641Courtesy of NISSAN MOTOR CO., U.S.A.

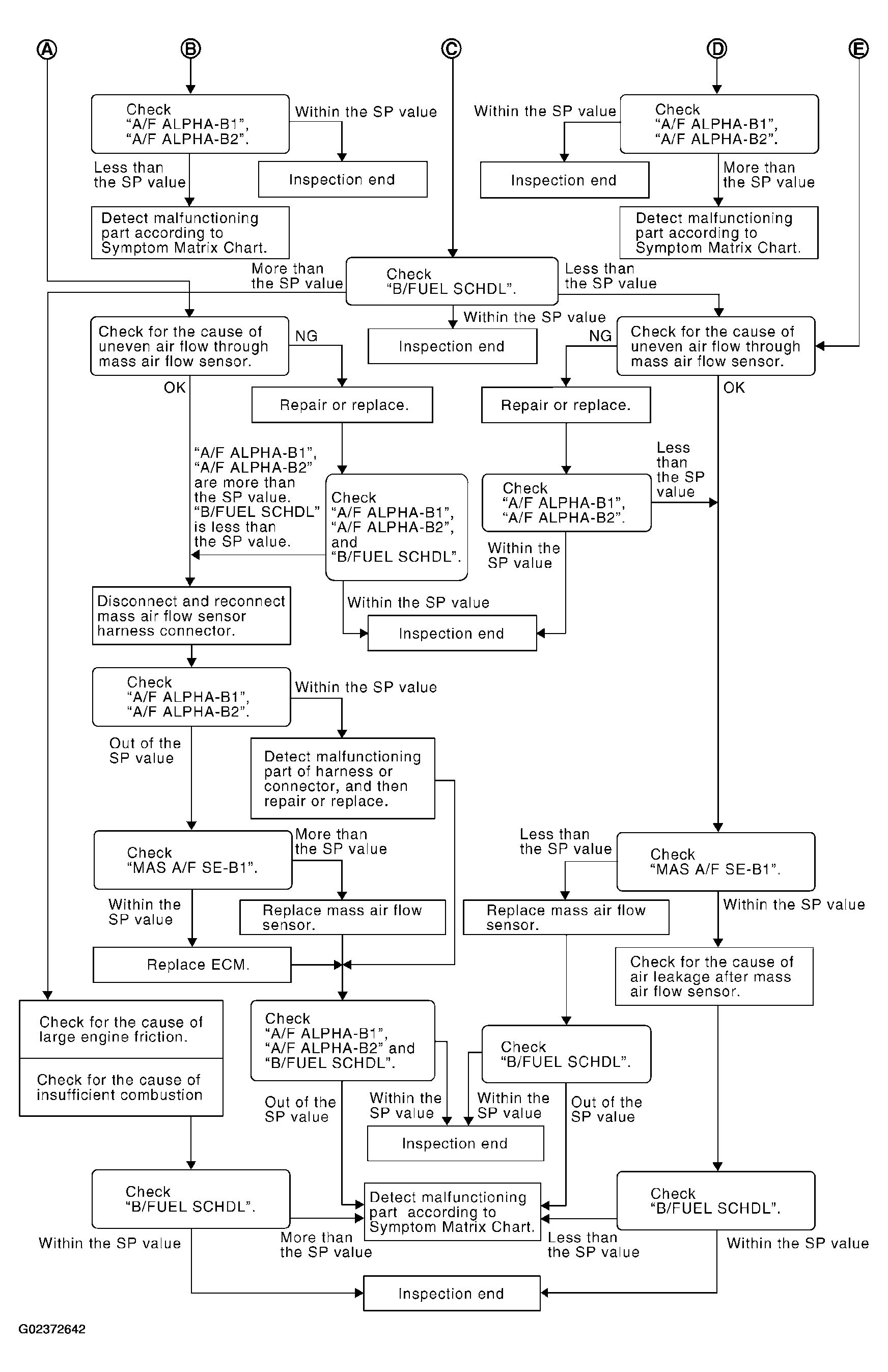

Fig 2: Diagnostic Flow Chart (2 Of 2)
G02372642Courtesy of NISSAN MOTOR CO., U.S.A.
