Vacuum Hose Drawing

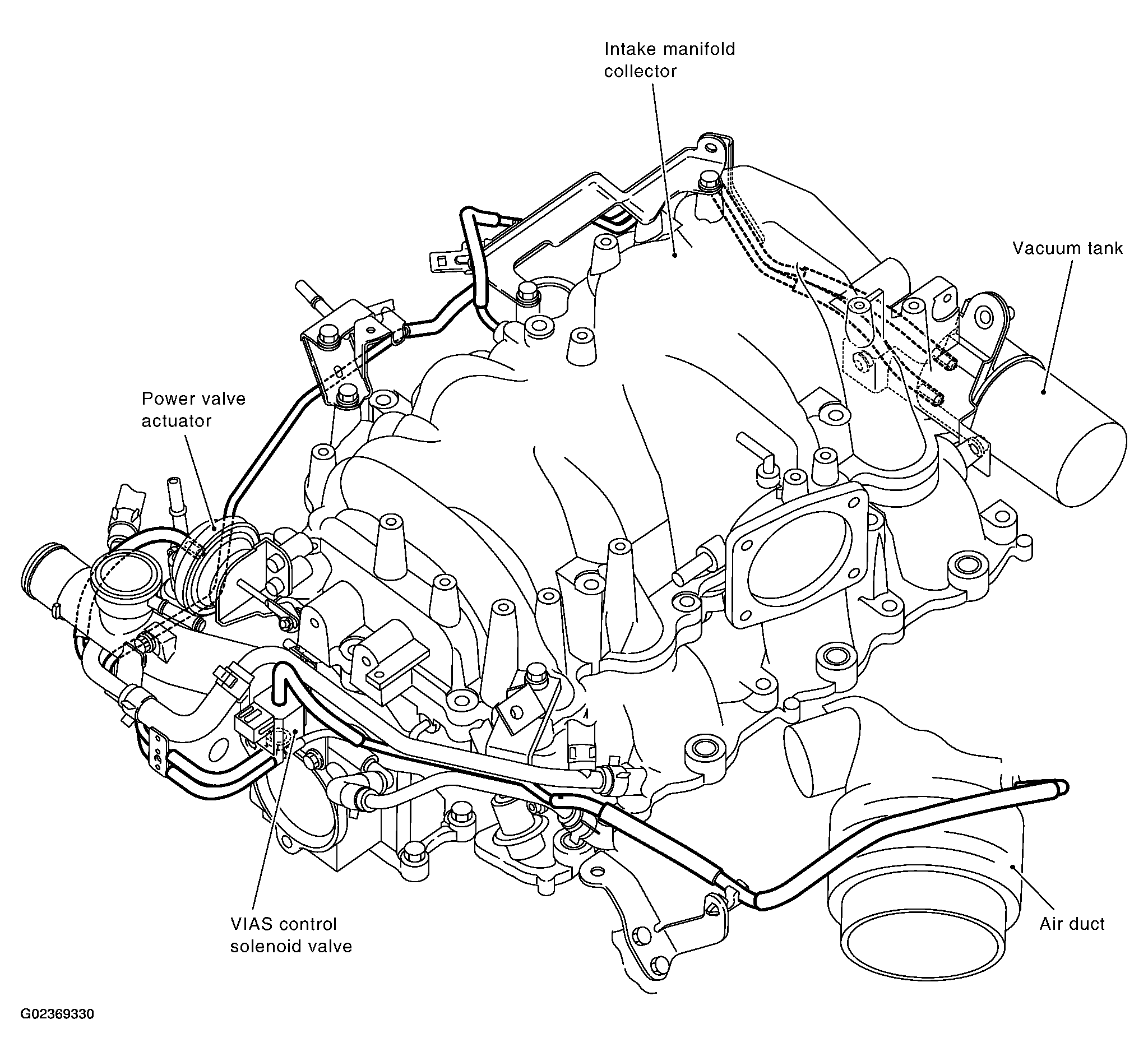

Fig 1: Identifying Vacuum Hose Drawing
G02369330Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to ENGINE CONTROL SYSTEM  for Vacuum Control System.
