Control Unit Inspection Table

The standard values (voltage), measured with an analog tester in contact with control unit terminal, are shown below:

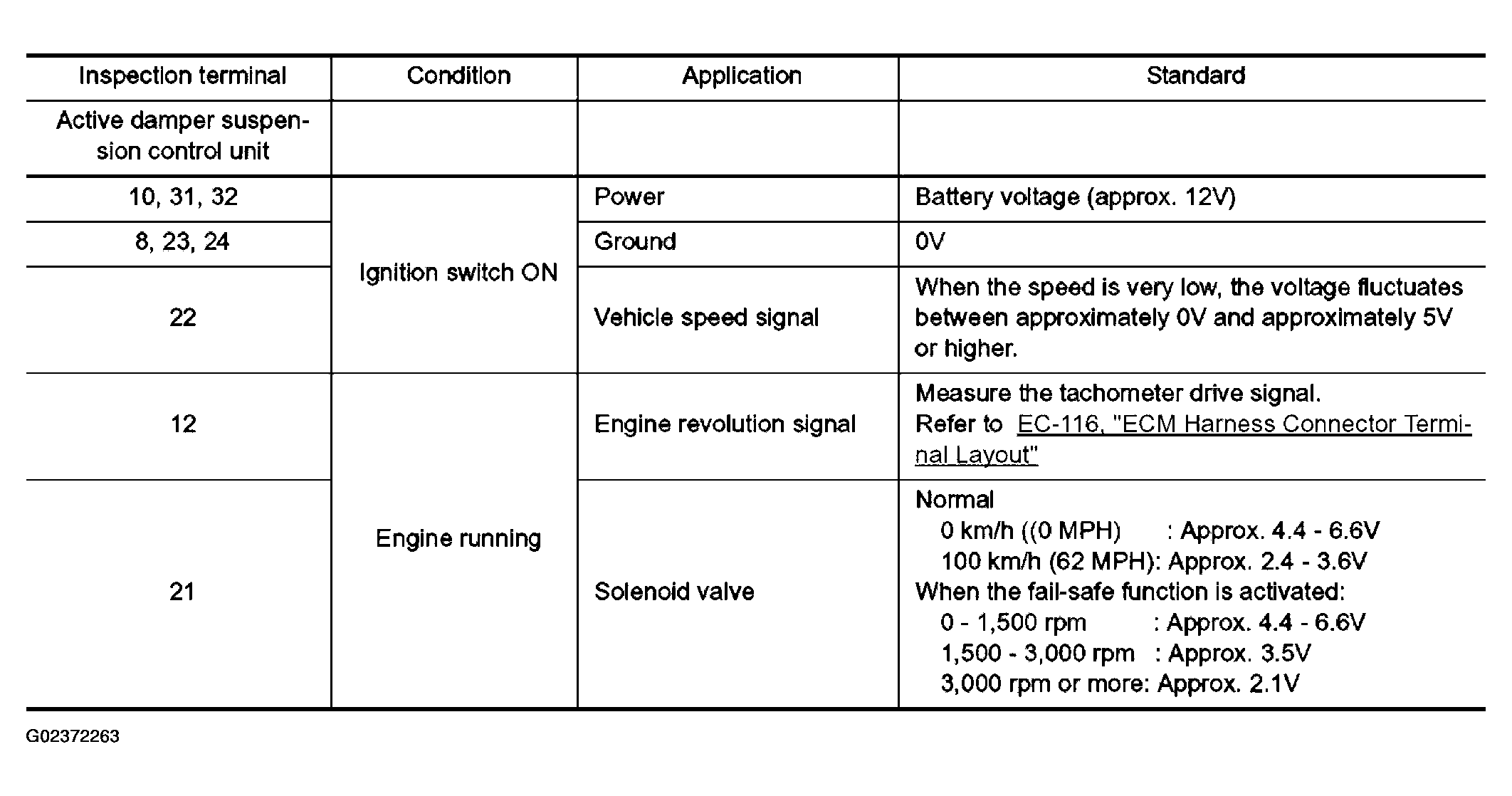

Fig 1: Control Unit Inspection Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
