At Low Fluid Temperature

When the A/T fluid temperature drops below the prescribed temperature, in order to speed up the action of each friction element, the line pressure is set higher than the normal line pressure characteristic.

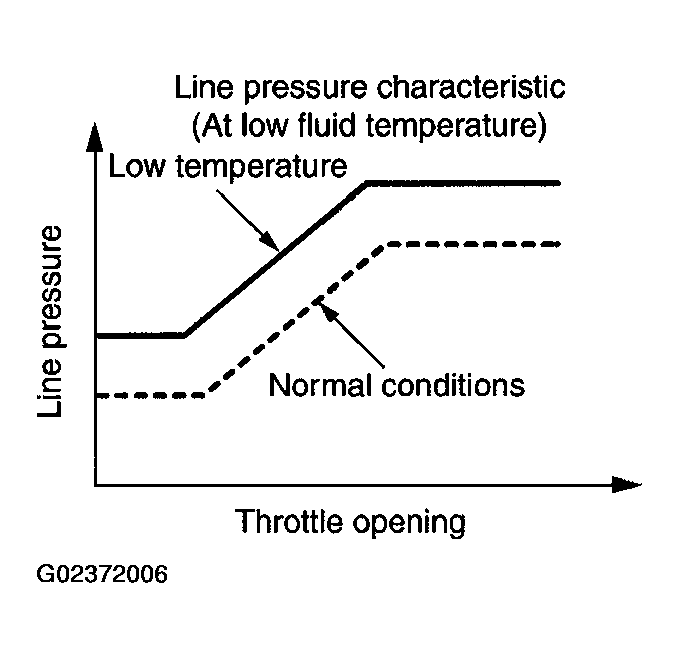

Fig 1: TCM Line Pressure Graph (At Low Fluid Temperature)

Courtesy of NISSAN MOTOR CO., U.S.A.
