Detention Switch

For Key:

• Check continuity between terminals of the A/T device harness connector.

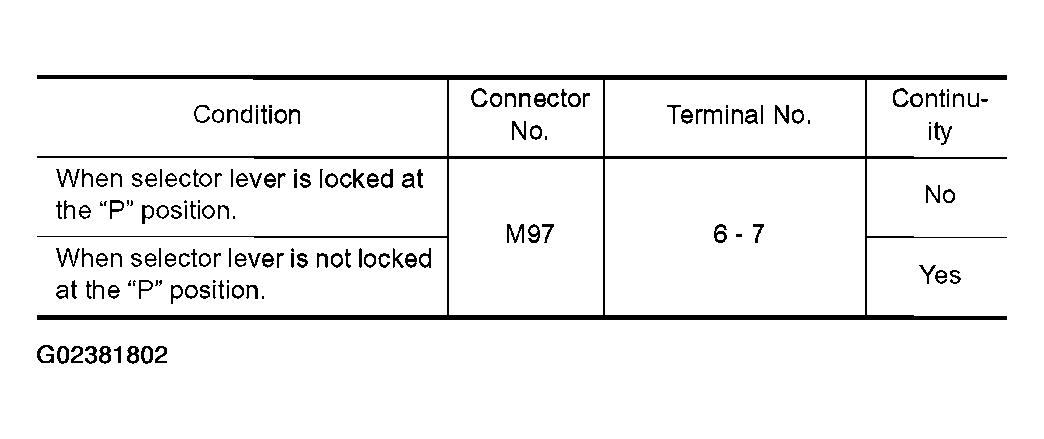

Fig 1: A/T Device Harness Connector Terminals Continuity Chart (For Key)

Courtesy of NISSAN MOTOR CO., U.S.A.

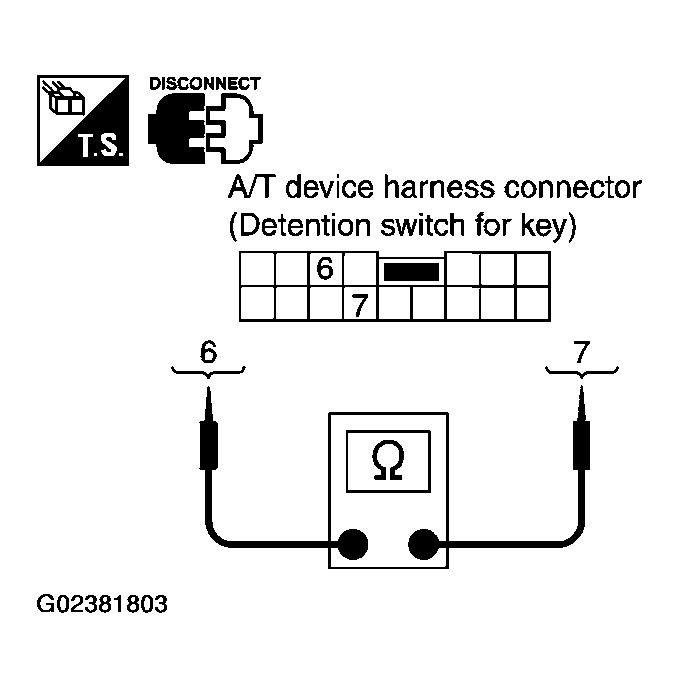

Fig 2: Checking Continuity Between Terminals Of A/T Device Harness Connector Terminals (For Key)

Courtesy of NISSAN MOTOR CO., U.S.A.

For Shift:

• Check continuity between terminals of the A/T device harness connector terminals.

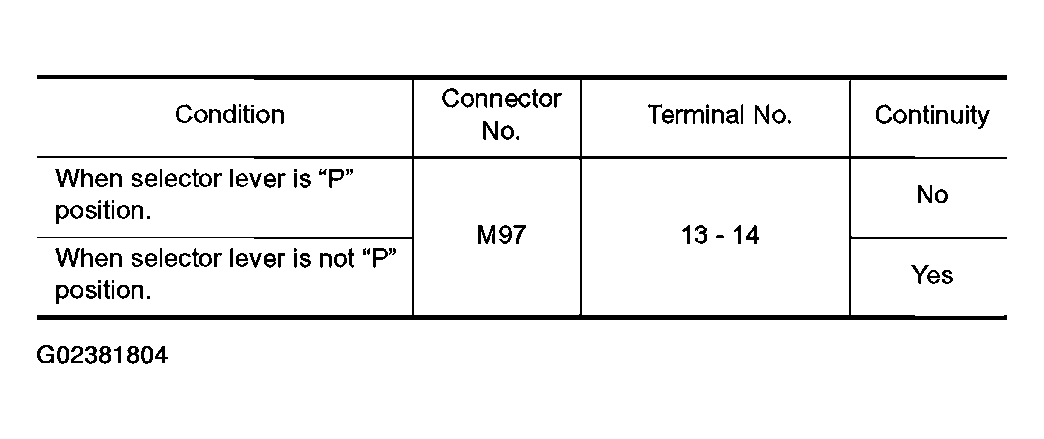

Fig 1: A/T Device Harness Connector Terminals Continuity Chart (For Shift)

Courtesy of NISSAN MOTOR CO., U.S.A.

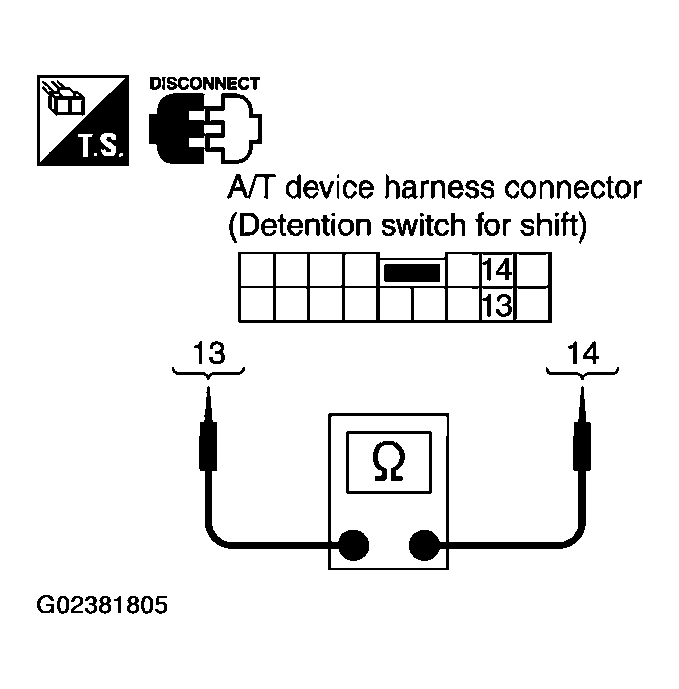

Fig 2: Checking Continuity Between Terminals Of A/T Device Harness Connector Terminals (For Shift)

Courtesy of NISSAN MOTOR CO., U.S.A.
