Key Unlock

Check operation by applying battery voltage to key switch and key lock solenoid harness connector.

CAUTION: Be careful not to cause burnout of the harness.

KEY LOCK SOLENOID HARNESS CONNECTOR TERMINALS (KEY UNLOCK)

Connector No.	Terminal No.
M64	2 (Battery voltage) - 1 (Ground)

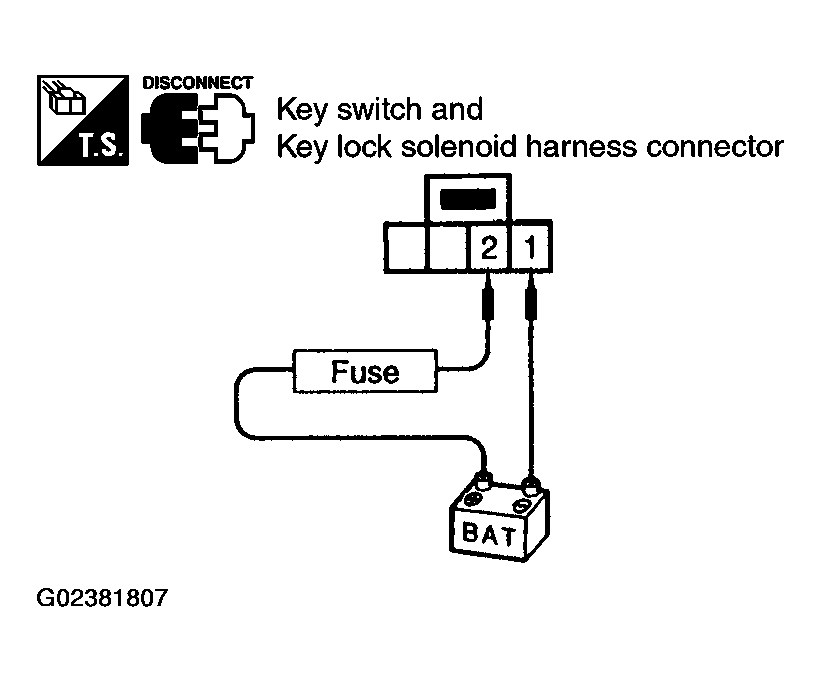

Fig 1: Checking Key Unlock Solenoid Operation By Applying Battery Voltage To Key Switch And Key Lock Solenoid Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
