Shift Lock Solenoid

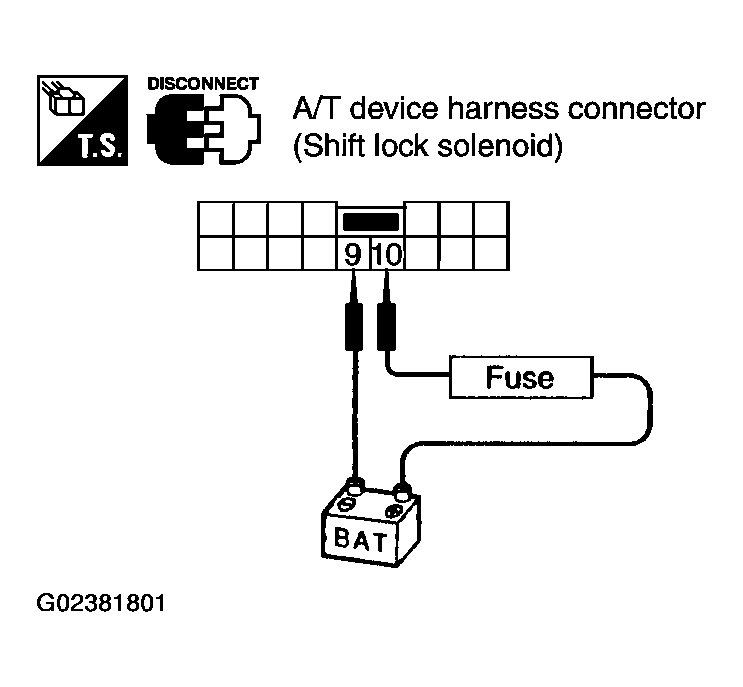

- Check operation by applying battery voltage to the A/T device harness connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.
A/T DEVICE HARNESS CONNECTOR TERMINALS
| Connector No. | Terminal No. |
|---|---|
| M97 | 10 (Battery voltage) - 9 (Ground) |
