Revolution Sensor: Components

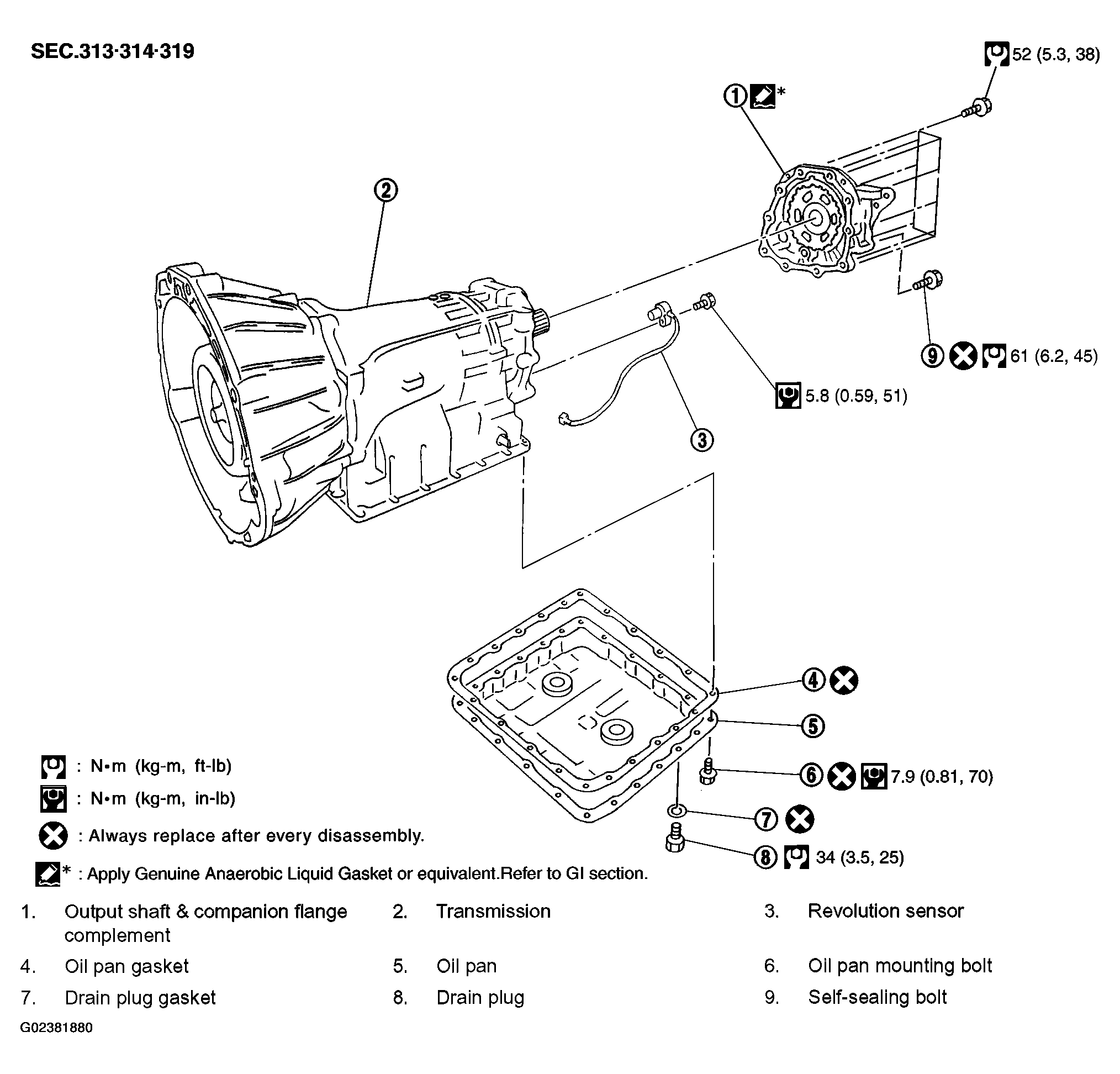

Fig 1: Revolution Sensor Replacement Components With Torque Specifications
G02381880Courtesy of NISSAN MOTOR CO., U.S.A.
