Automatic Transmission: Overhaul: Components

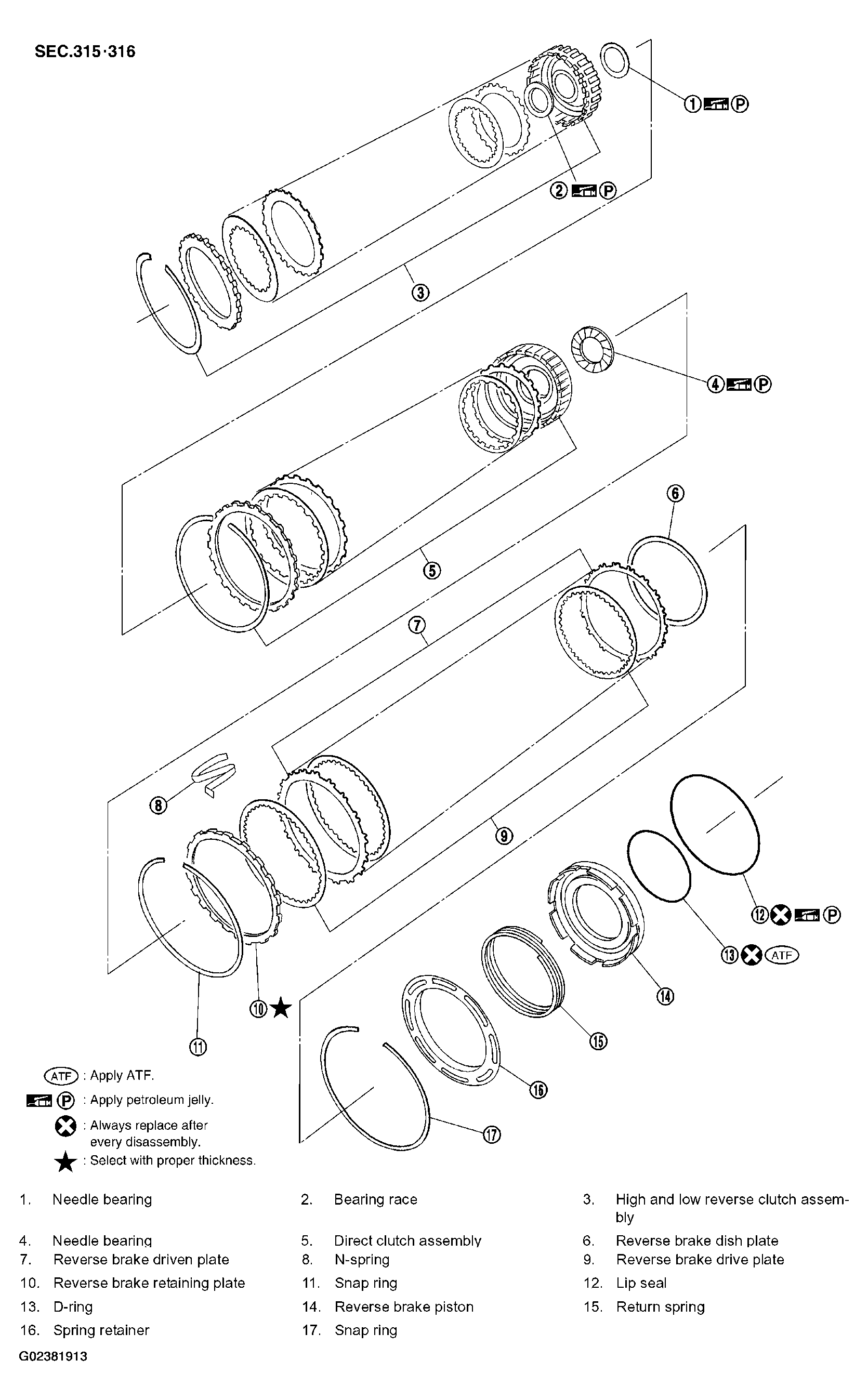

Fig 1: Transmission Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

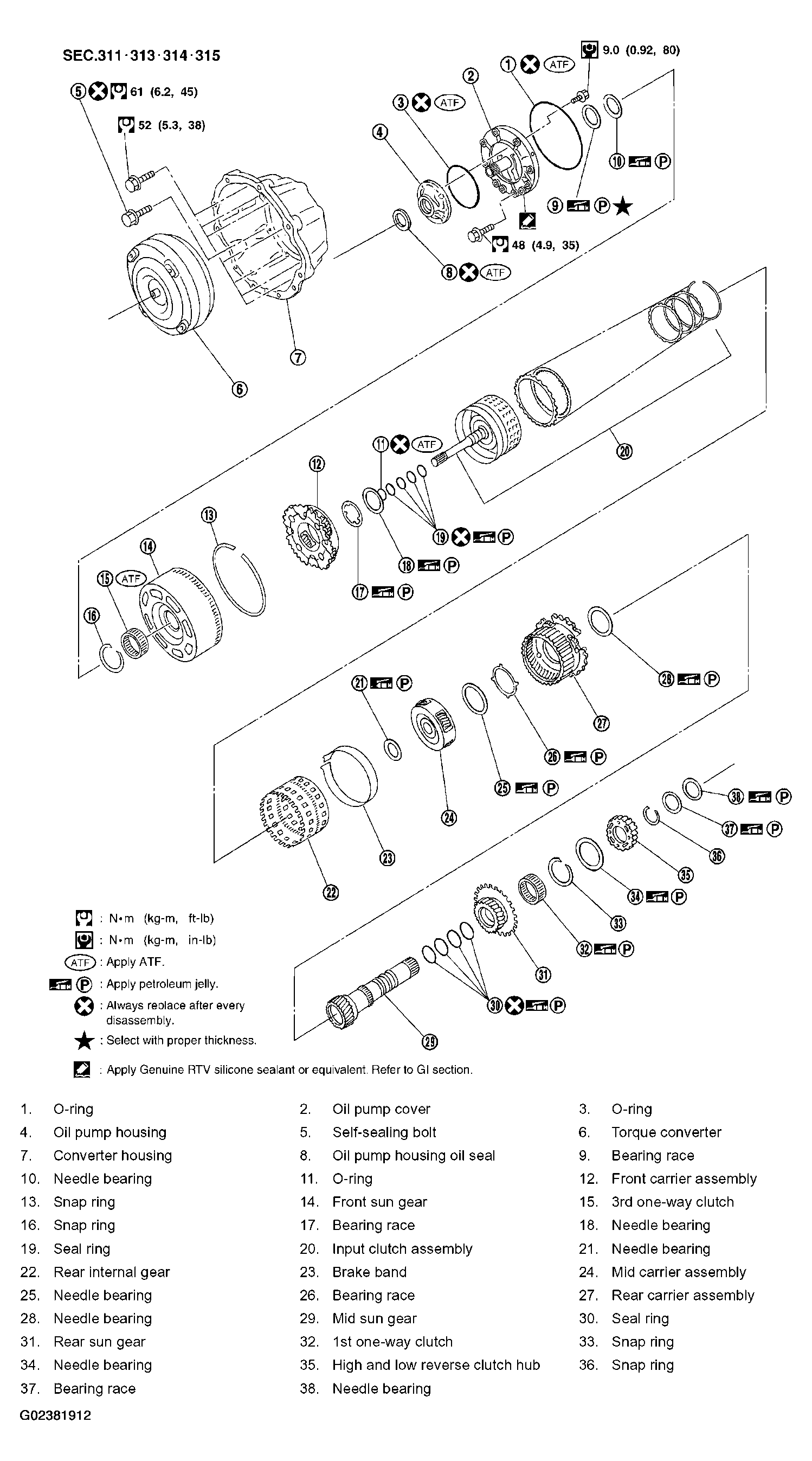

Fig 2: Transmission Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

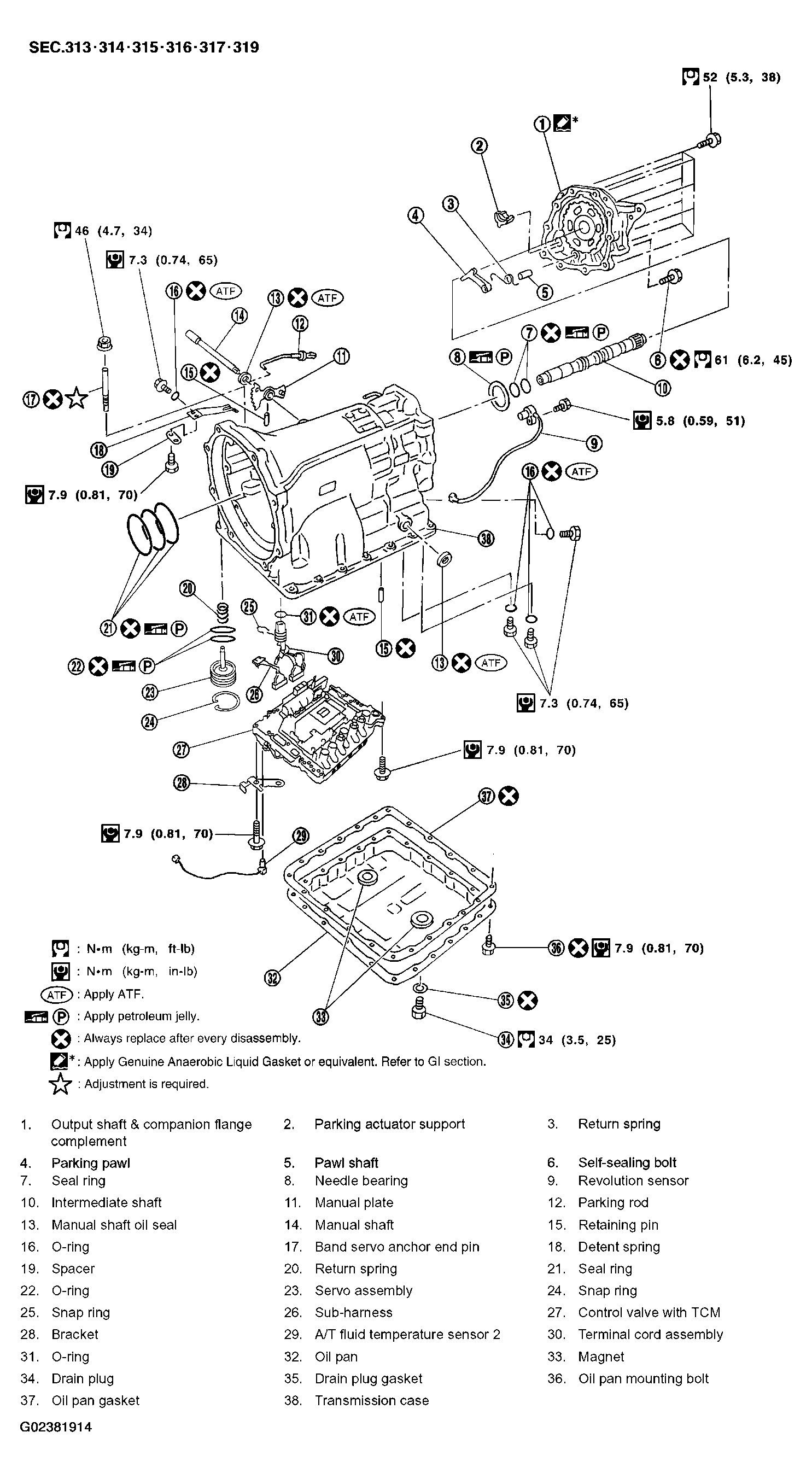

Fig 3: Transmission Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
