Control Device Removal and Installation: Removal

Disconnect lower lever of control device and control rod.
Remove console finisher. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove console box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Remove rear ventilator duct. Refer to "REMOVAL OF REAR VENTILATOR DUCTS ".

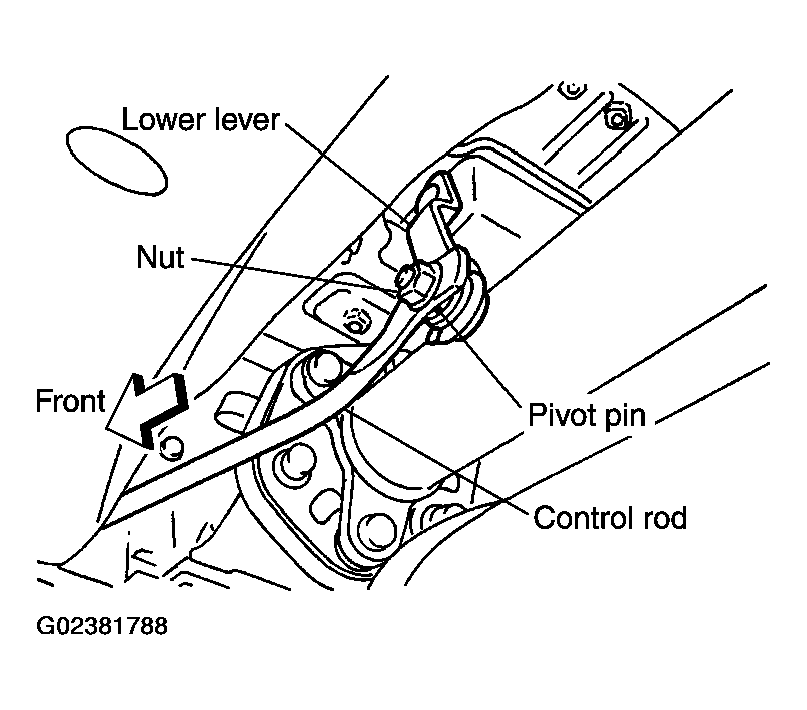

Fig 1: Disconnecting Lower Lever Of Control Device And Control Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect A/T device harness connector.

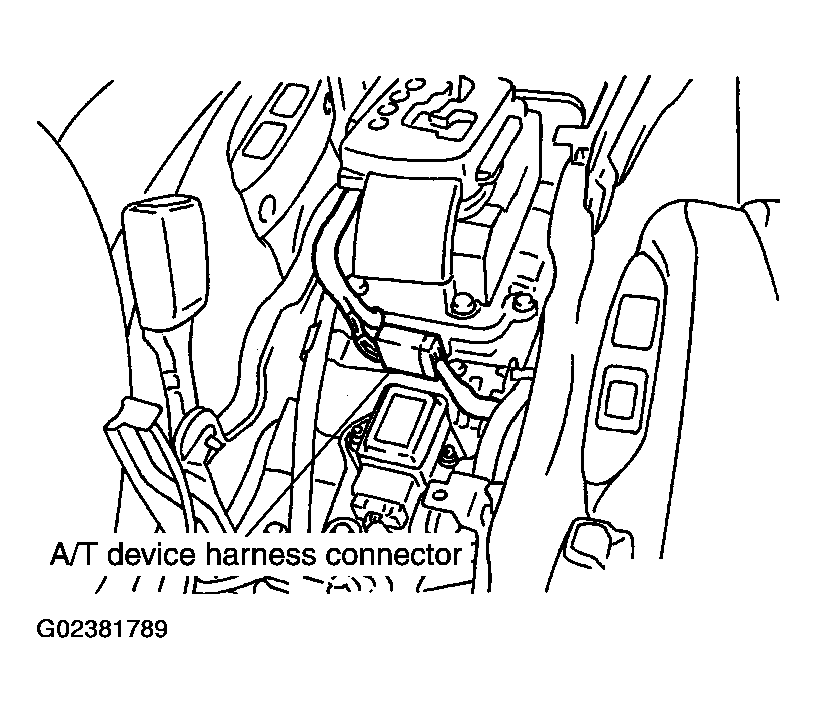

Fig 2: Disconnecting A/T Device Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control device assembly.

Fig 3: Removing Control Device Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
