Control Rod Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.

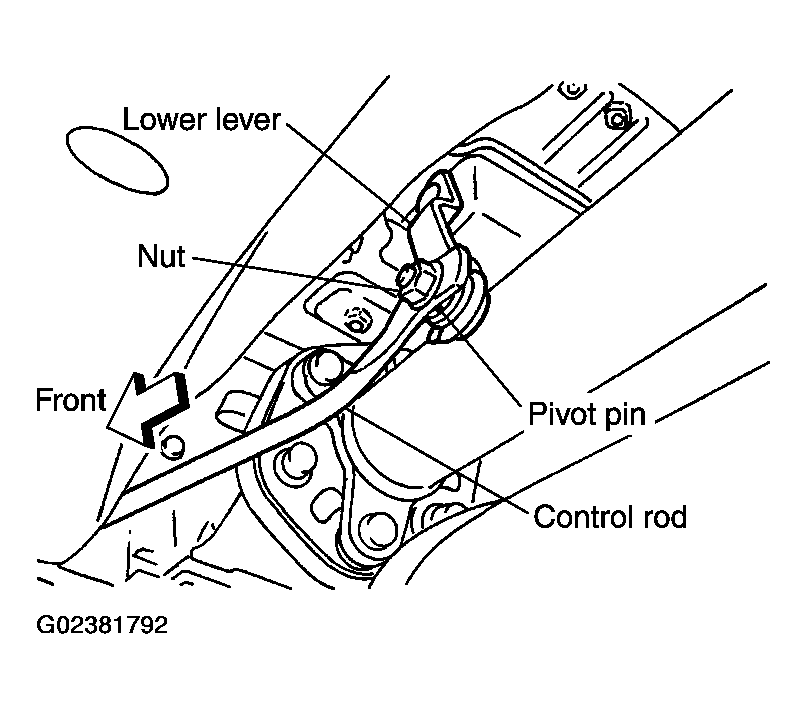

    Fig 1: Disconnecting Lower Lever Of Control Device And Control Rod
    G02381792Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove manual lever from transmission.
  3. Remove control rod from vehicle.

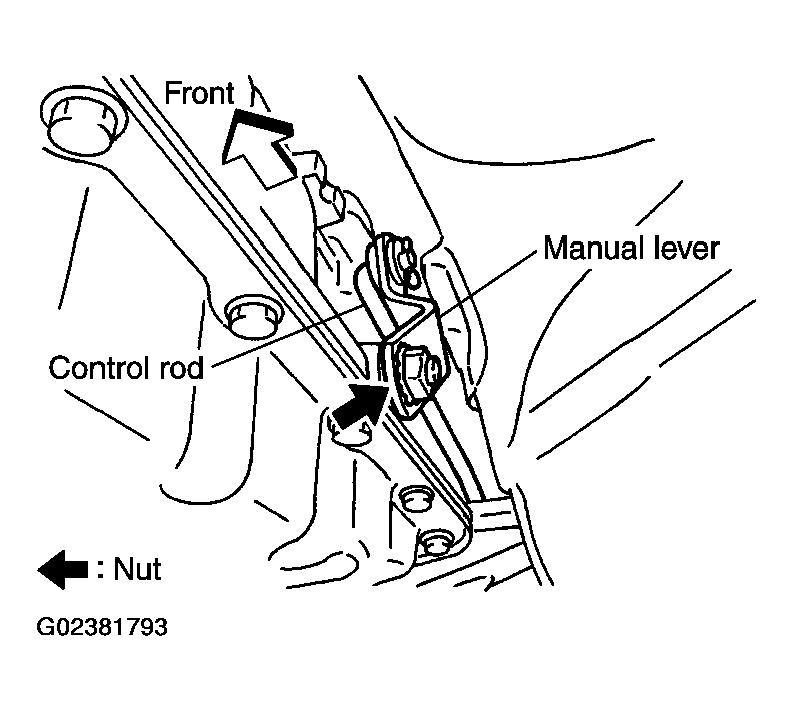

    Fig 2: Removing Manual Lever From Transmission And Control Rod From Vehicle
    G02381793Courtesy of NISSAN MOTOR CO., U.S.A.
