Check On/Off Switch Operation

  1. Start the engine. Then, check that the following operations are performed correctly.
  2. CRUISE lamp (green) illuminates and ICC system indicator goes off when ON/OFF switch is pressed ON for more than 1.5 seconds. The CRUISE lamp goes off when ON/OFF switch is turned to OFF.
  3. Turn off the ignition switch while ON/OFF switch is ON. Turn the ignition switch back to ON and confirm that CRUISE lamp is OFF.

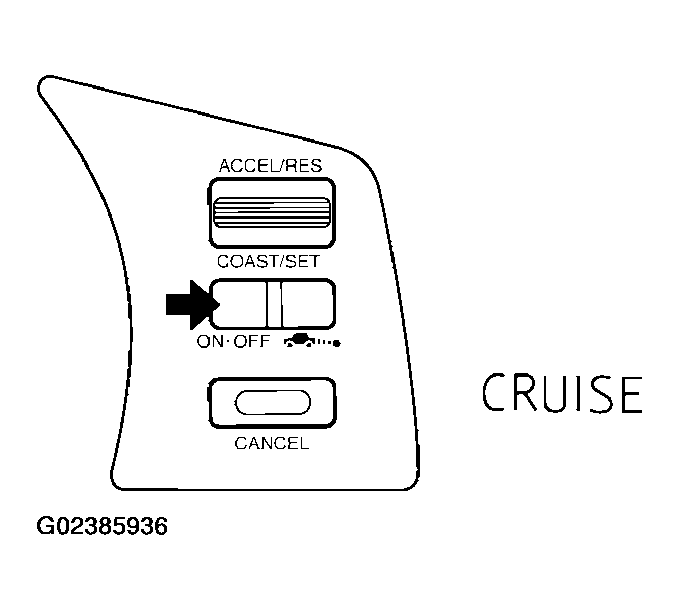

    Fig 1: Checking On/Off Switch Operation
    G02385936Courtesy of NISSAN MOTOR CO., U.S.A.
