AV Communication Line Check (Between Display Control Unit and NAVI Control Unit)

1. Check power supply and ground circuit for NAVI control unit. Refer to "POWER SUPPLY AND GROUND CIRCUIT CHECK FOR NAVI CONTROL UNIT  ".

OK or NG

• OK: GO TO 2.
• NG: Check the malfunctioning parts.

1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector B152 and display control unit connector M95.
3. Check continuity between NAVI control unit and display control unit.

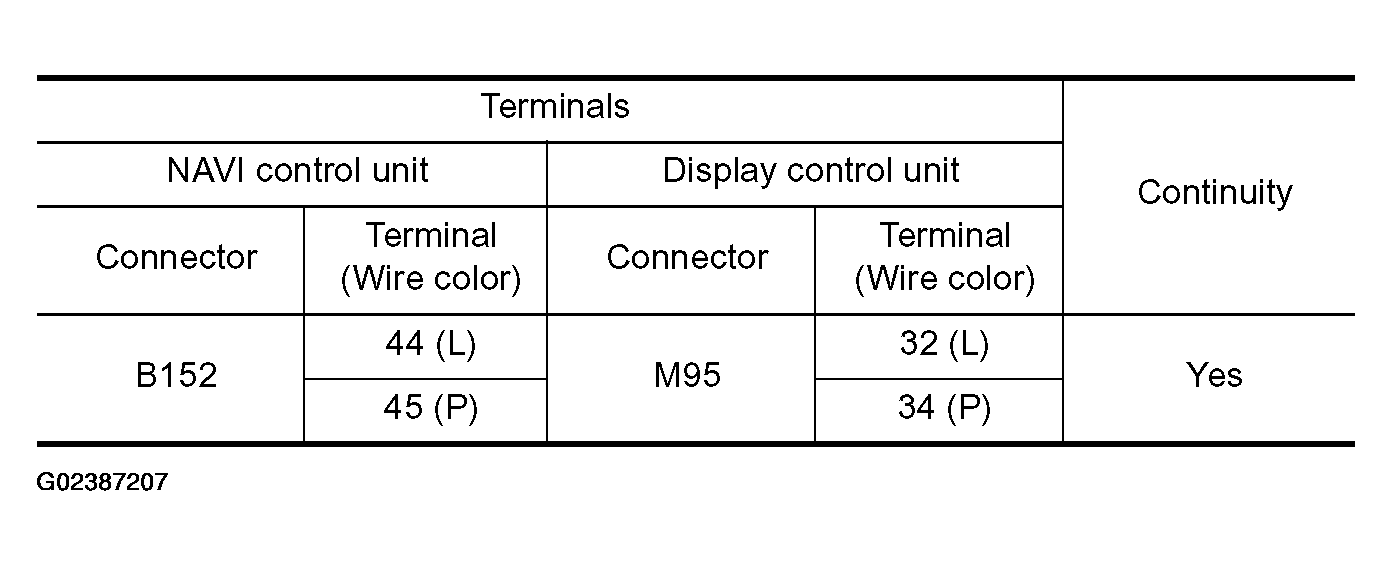

   Fig 1: NAVI Control Unit Connector B152 And Display Control Unit Connector M95 Terminal Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

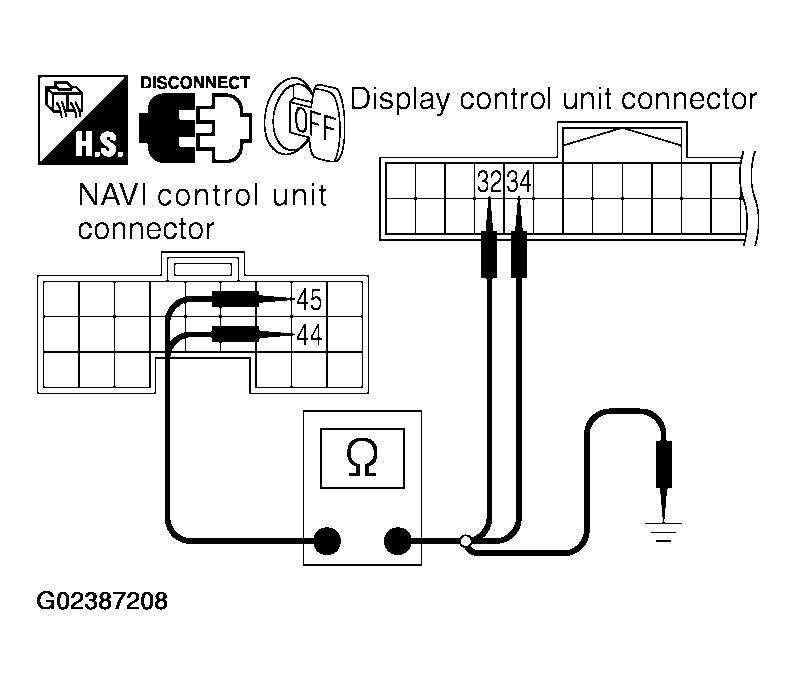

   Fig 2: Checking Continuity Between NAVI Control Unit And Display Control Unit

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between NAVI control unit and ground.

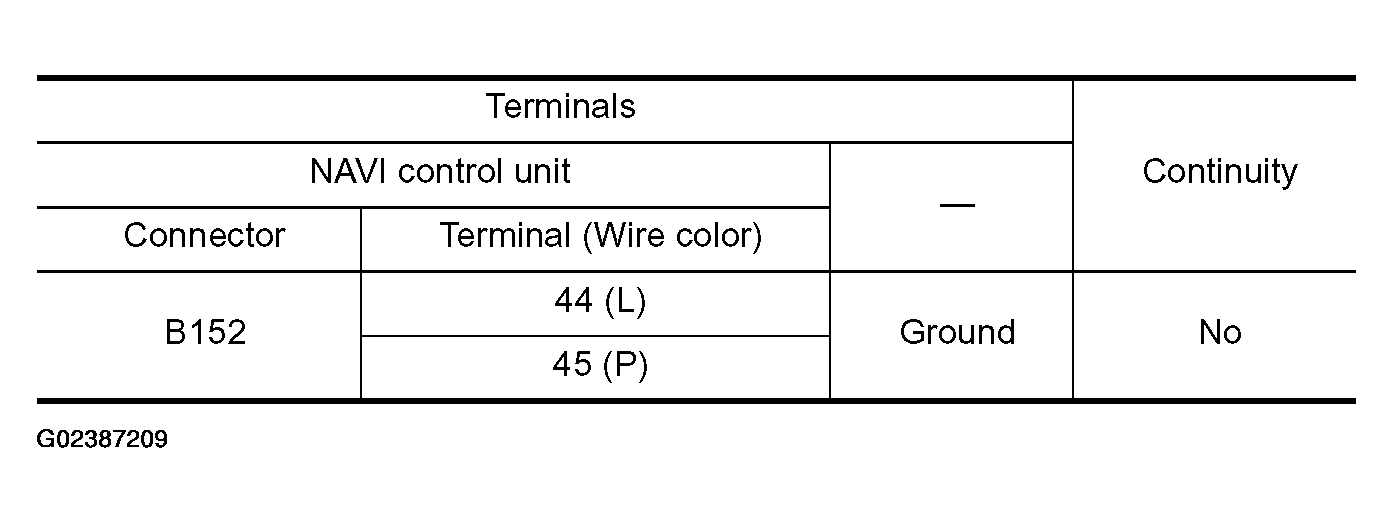

   Fig 3: NAVI Control Unit Connector B152 Terminals And Ground Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 3.
• NG: Repair harness or connector.

1. Replace NAVI control unit.
2. Connect NAVI control unit connector and display control unit connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU and check the self-diagnosis result.

OK or NG

• OK: Inspection End.
• NG: Replace display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT  ".
