Ignition Signal Check for Display Control Unit

CHECK IGNITION SIGNAL
1. Disconnect display control unit connector M94.
2. Turn ignition switch ON.
3. Check voltage between display control unit harness connector M94 terminal 12 (G/R) and ground.
  - Battery voltage should exist.

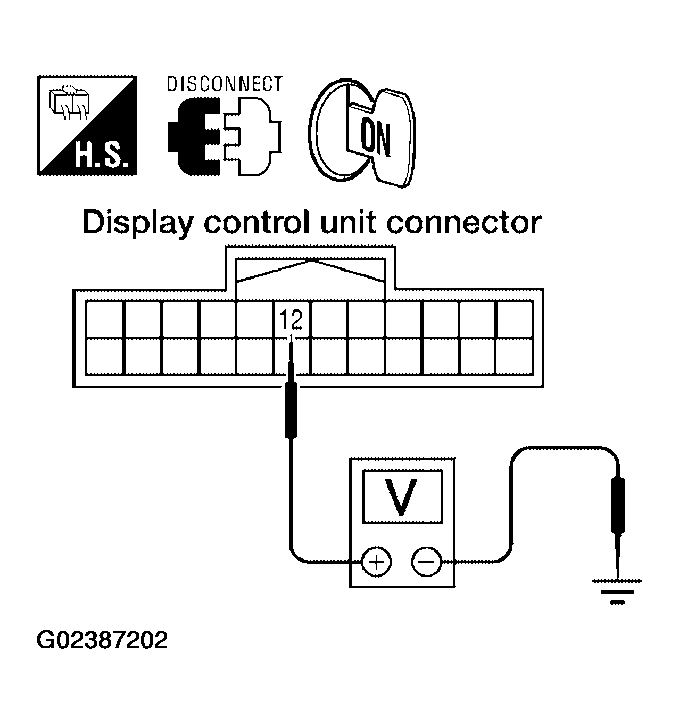

  Fig 1: Checking Voltage Between Display Control Unit Harness Connector M94 Terminal 12 (G/R) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT ".
- NG: Check harness for open or short between display control unit and fuse.
