Terminals and Reference Value for Display Control unit

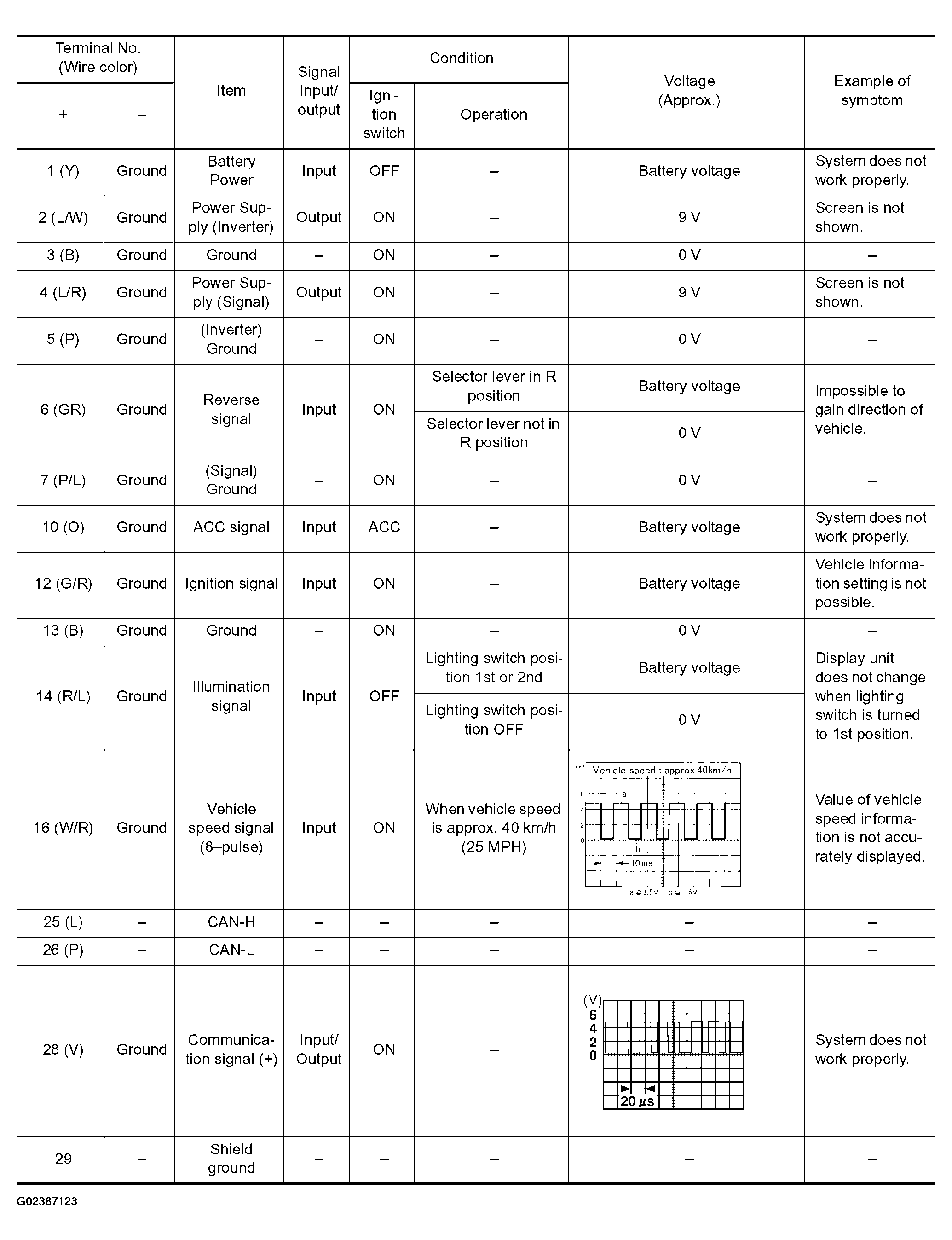

Fig 1: Display Control Unit - Terminals And Reference Value Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

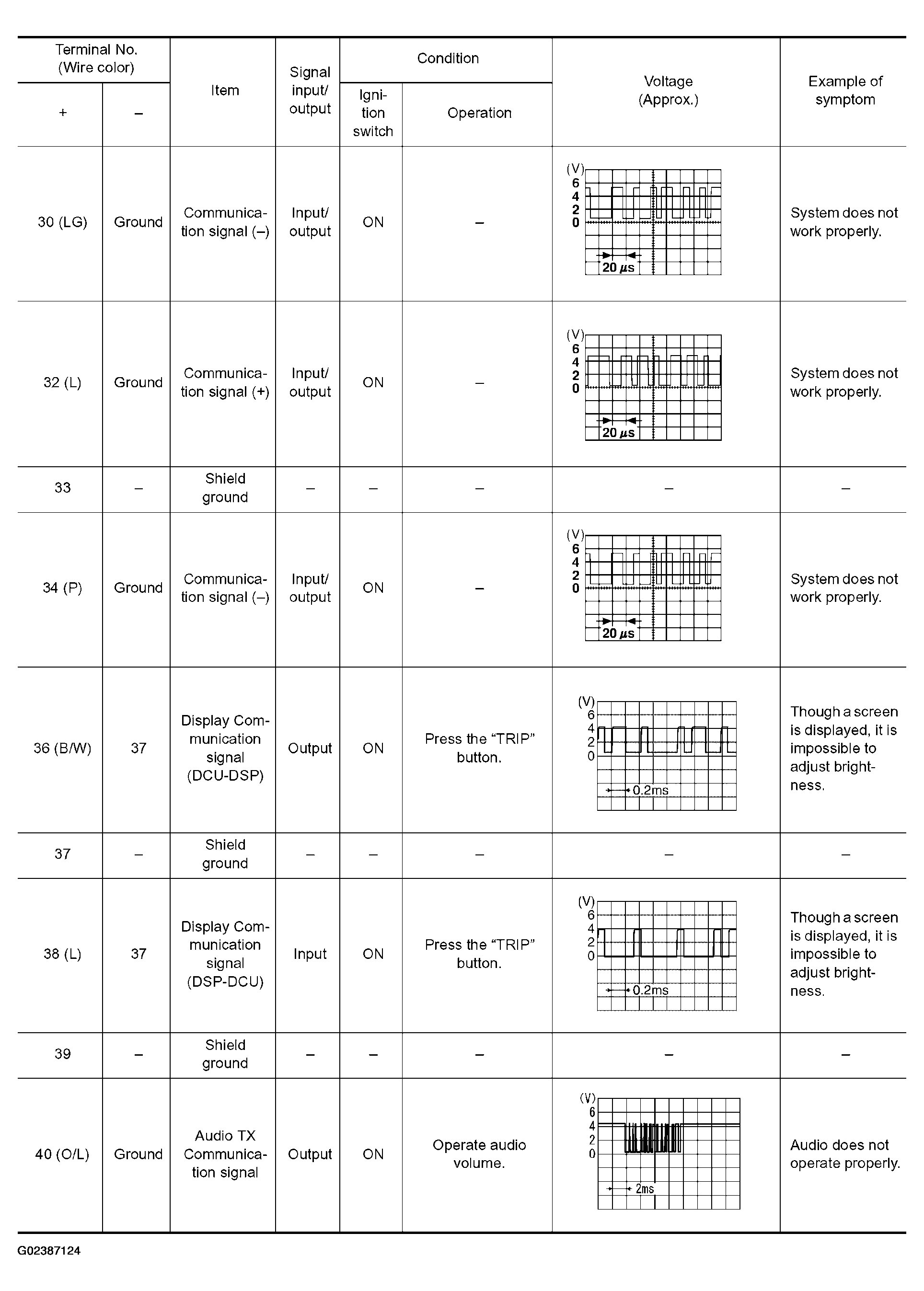

Fig 2: Display Control Unit - Terminals And Reference Value Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

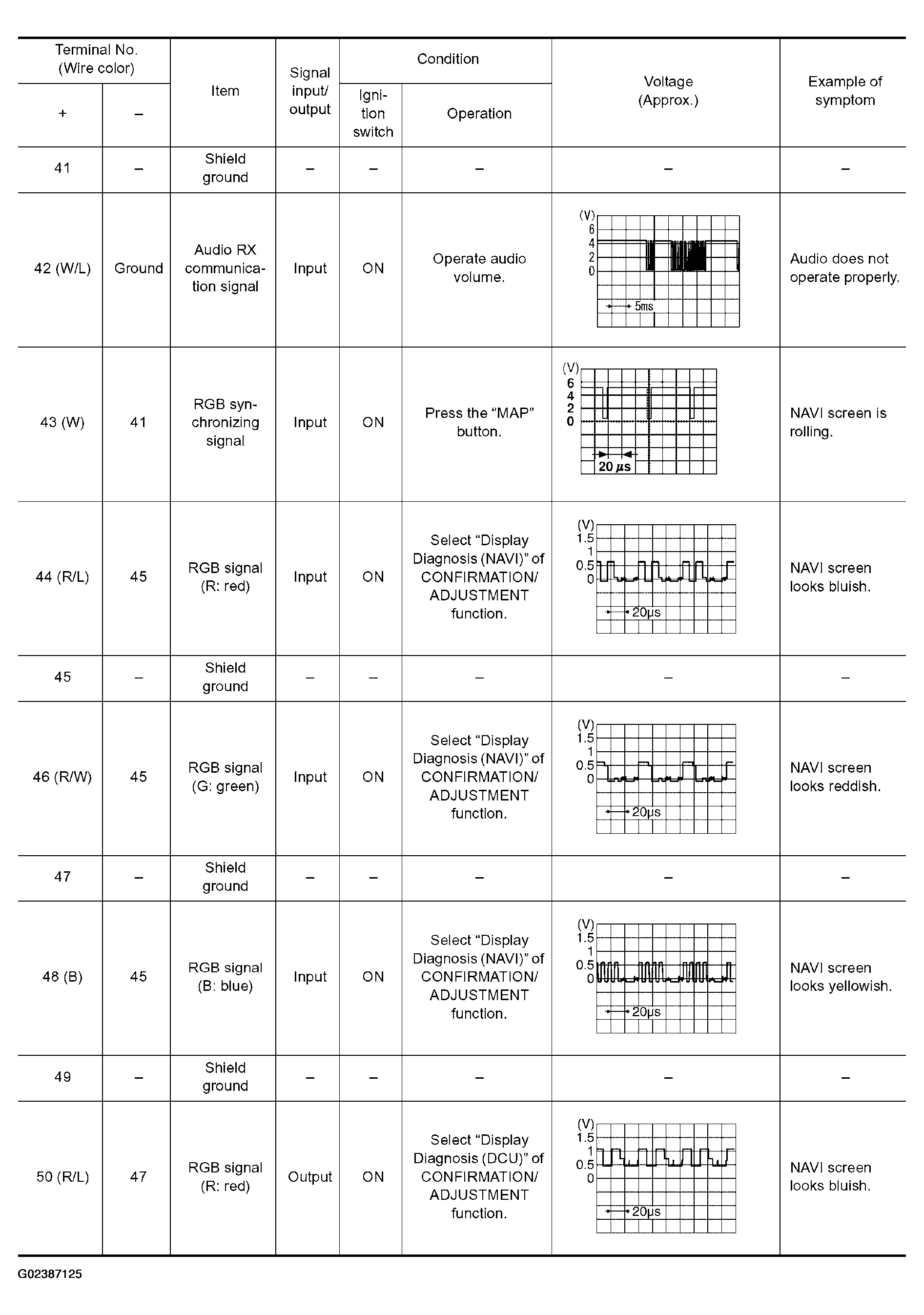

Fig 3: Display Control Unit - Terminals And Reference Value Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

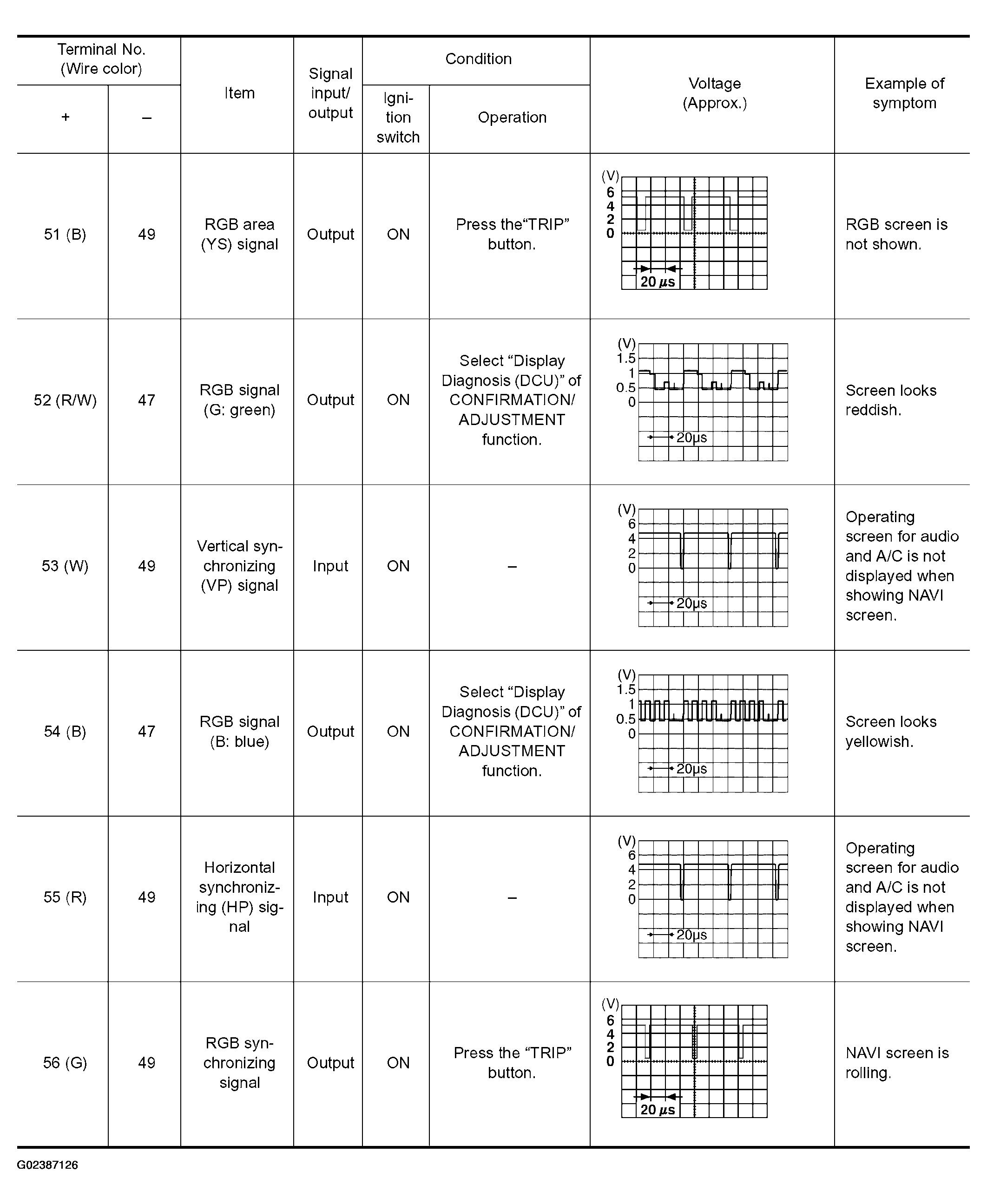

Fig 4: Display Control Unit - Terminals And Reference Value Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
