Reference Value From Consult-II

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short circuited.

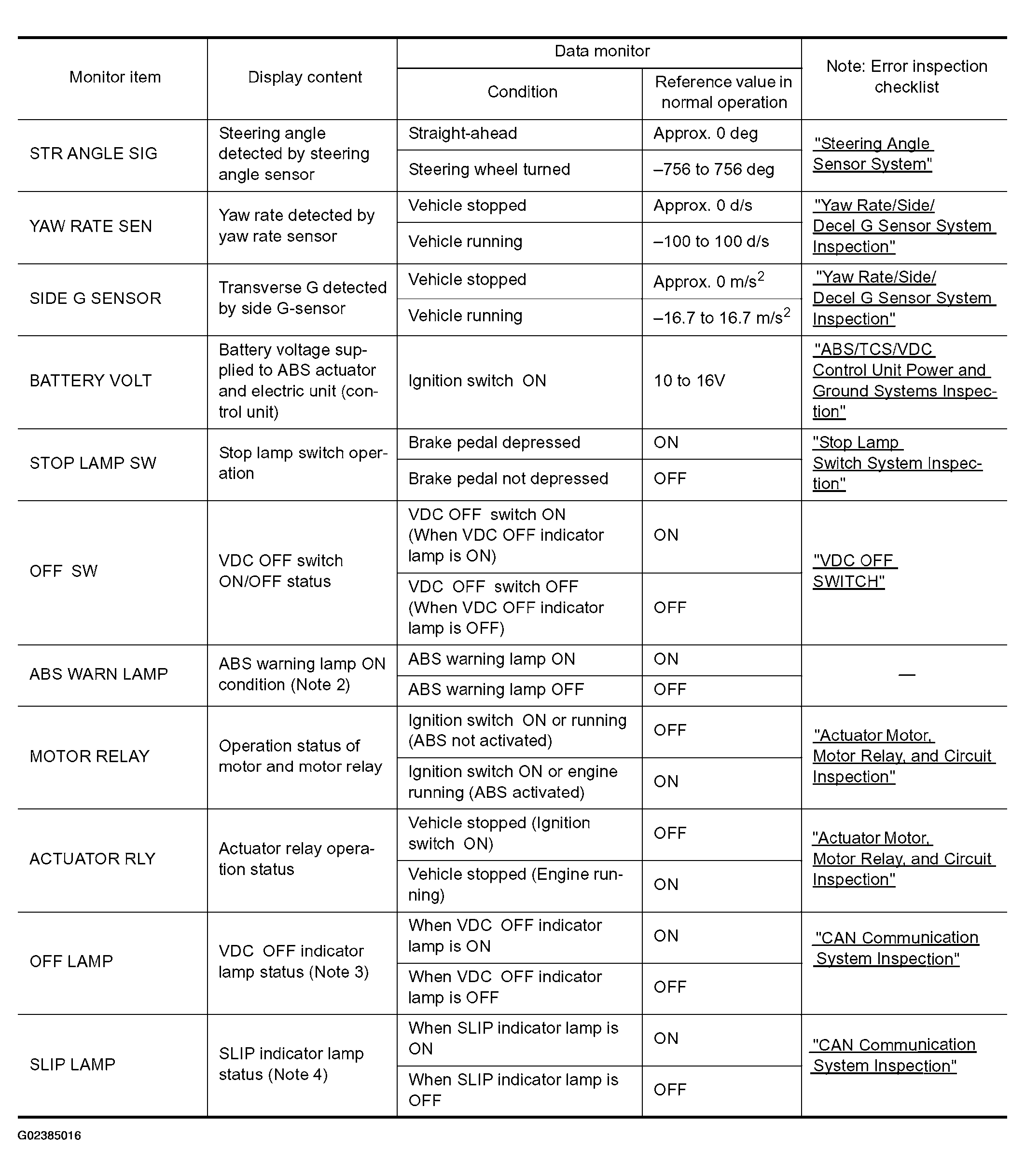

Fig 1: Control Unit Input/Output Signal Standard - CONSULT-II Reference Value (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

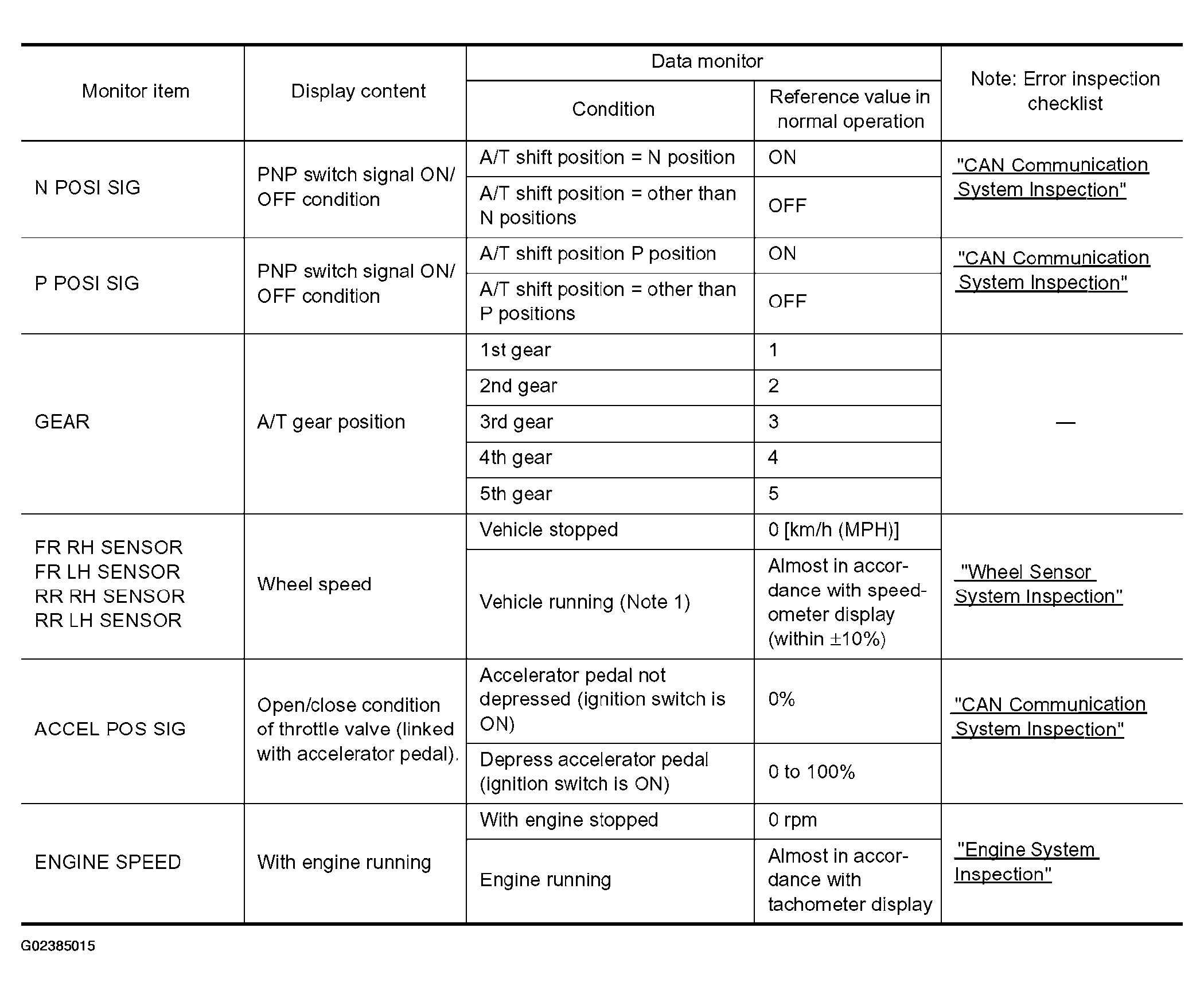

Fig 2: Control Unit Input/Output Signal Standard - CONSULT-II Reference Value (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

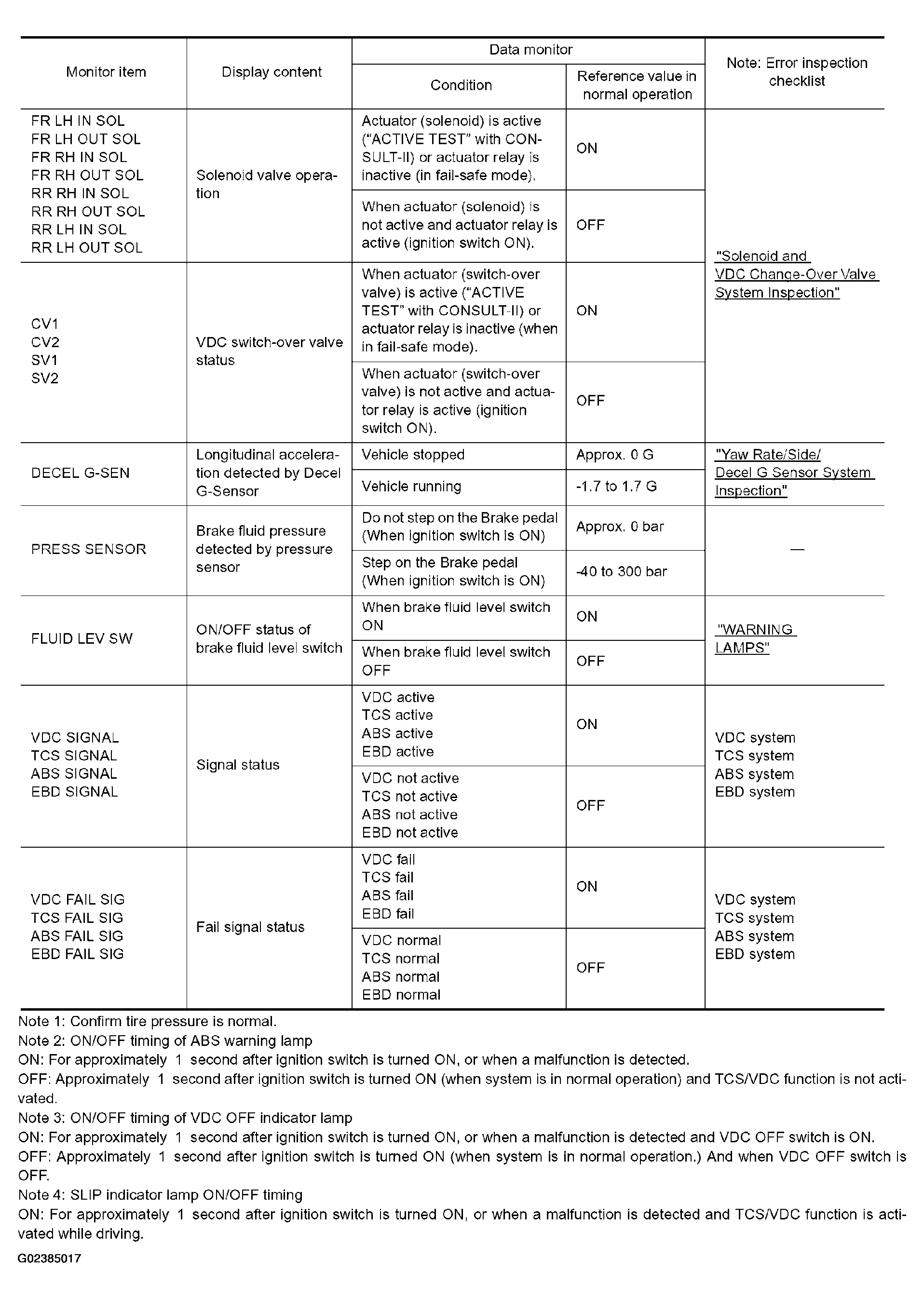

Fig 3: Control Unit Input/Output Signal Standard - CONSULT-II Reference Value (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

OFF: Approximately 1 second after ignition switch is turned ON (when system is in normal operation) and TCS/VDC function is not activated.

Flashing: TCS/VDC function is active during driving
