Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Intelligent Power Distribution Module

G00292308

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Right Rear Corner Of Engine Compartment

G00292484

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Passenger Compartment Components (1 Of 2)

G00292481

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Passenger Compartment Components (2 Of 2)

G00292482

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Compartment

G00292480

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Dash & Center Console

G00360471

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Right Side Of Engine Compartment

G00360472

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Left Side Of Dash

G00292463

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Left Side Of Engine Compartment

G00292464

Courtesy of NISSAN MOTOR CO., U.S.A.

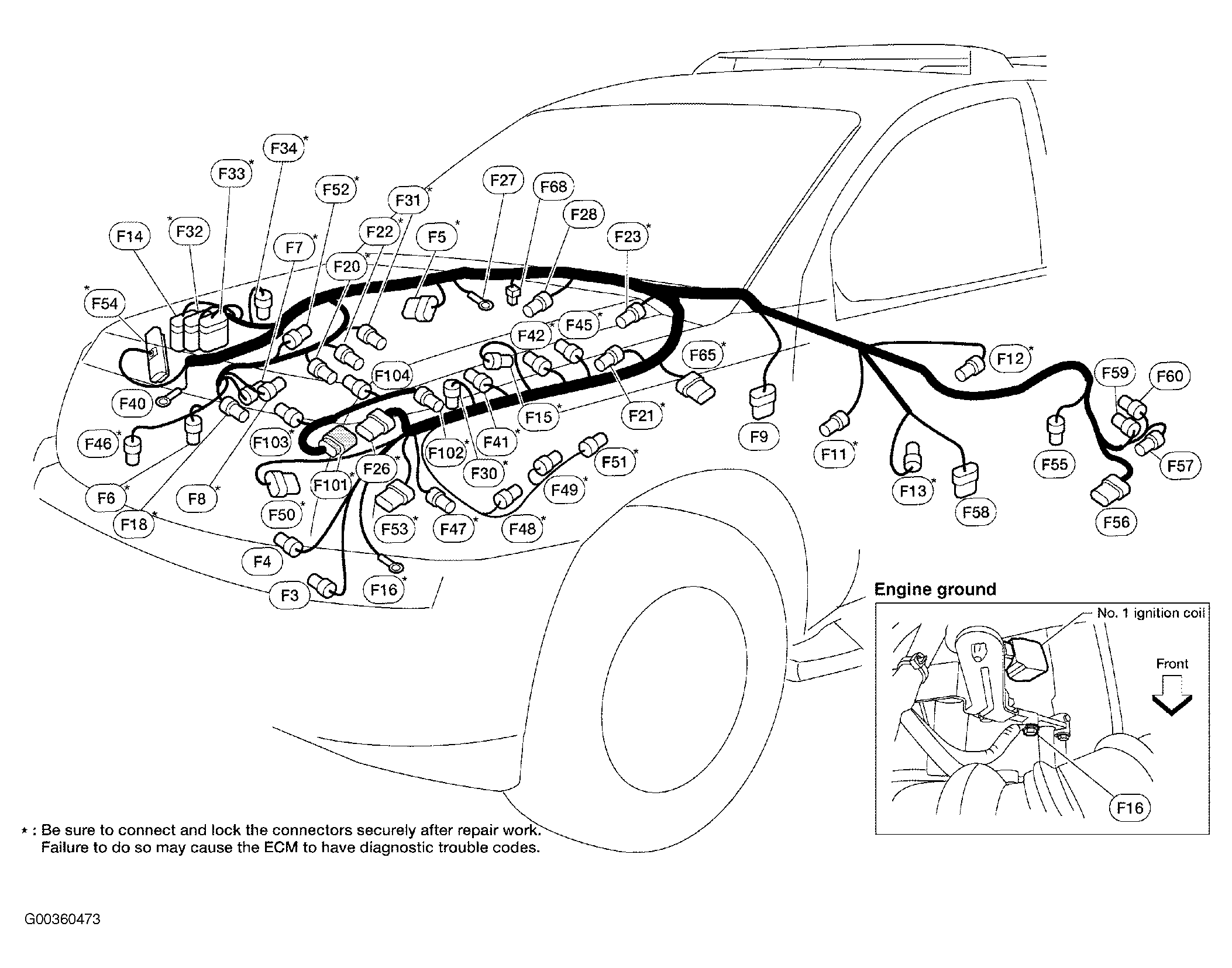

Fig 10: Engine

G00360473

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Rear Of Vehicle

G00292468

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Left Side Of Vehicle

G00292470

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Right Side Of Vehicle

G00292472

Courtesy of NISSAN MOTOR CO., U.S.A.

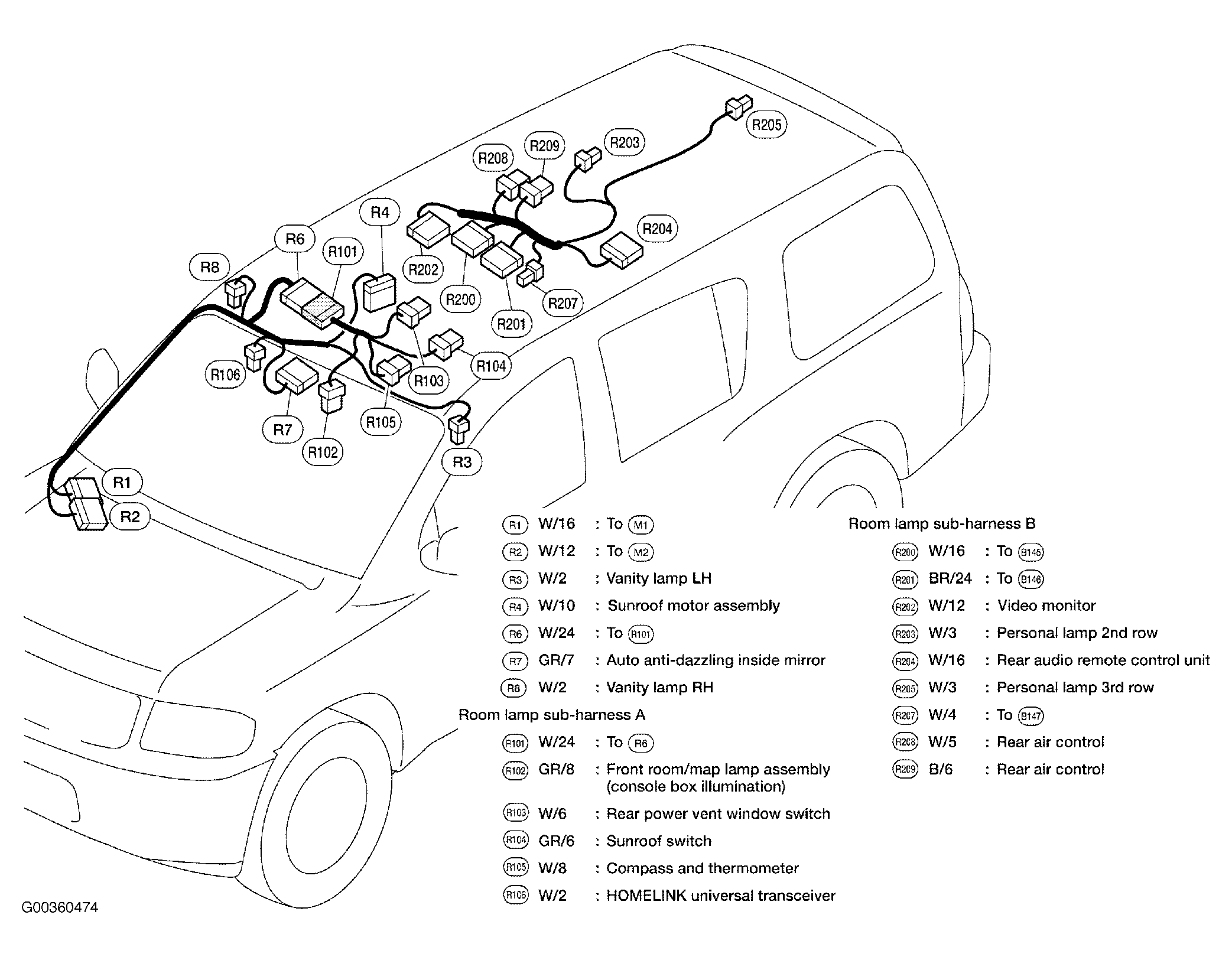

Fig 14: Roof

G00360474

Courtesy of NISSAN MOTOR CO., U.S.A.

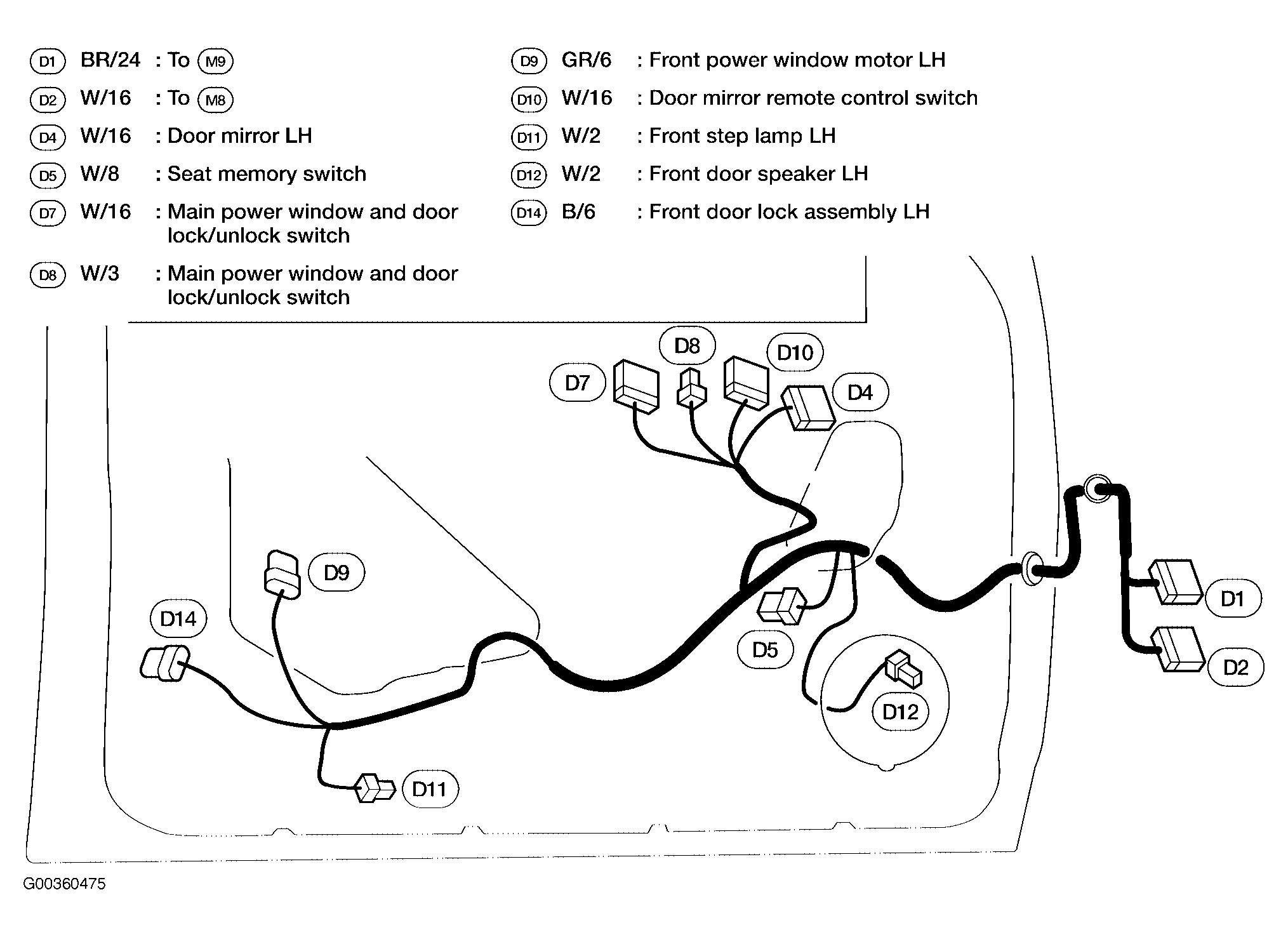

Fig 15: Left Front Door

G00360475

Courtesy of NISSAN MOTOR CO., U.S.A.

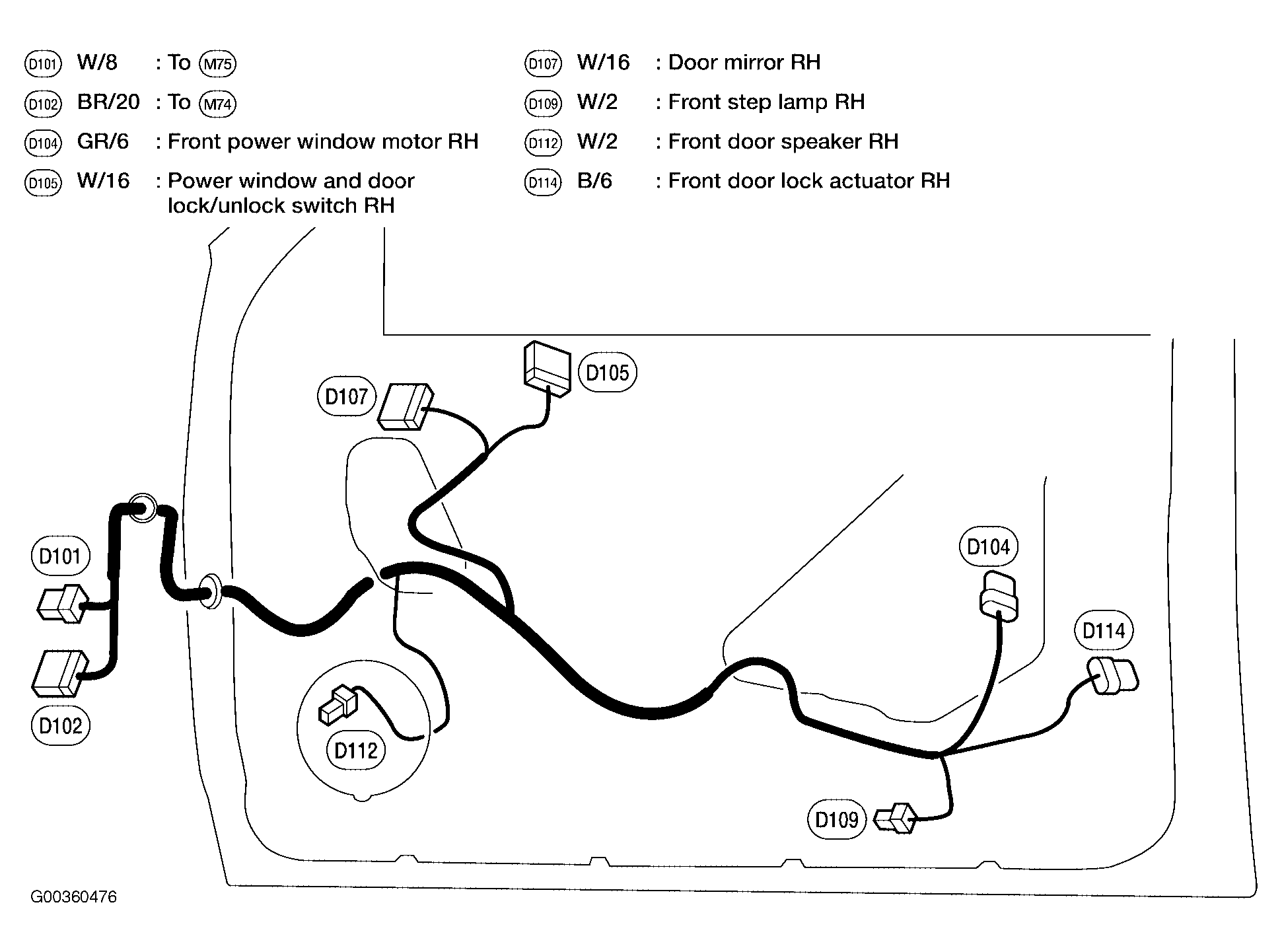

Fig 16: Right Front Door

G00360476

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Left Rear Door

G00292477

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Right Rear Door

G00292478

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Back Door

G00360477

Courtesy of NISSAN MOTOR CO., U.S.A.
