On Board Diagnosis Logic: Notes

These self-diagnoses have the one trip detection logic.

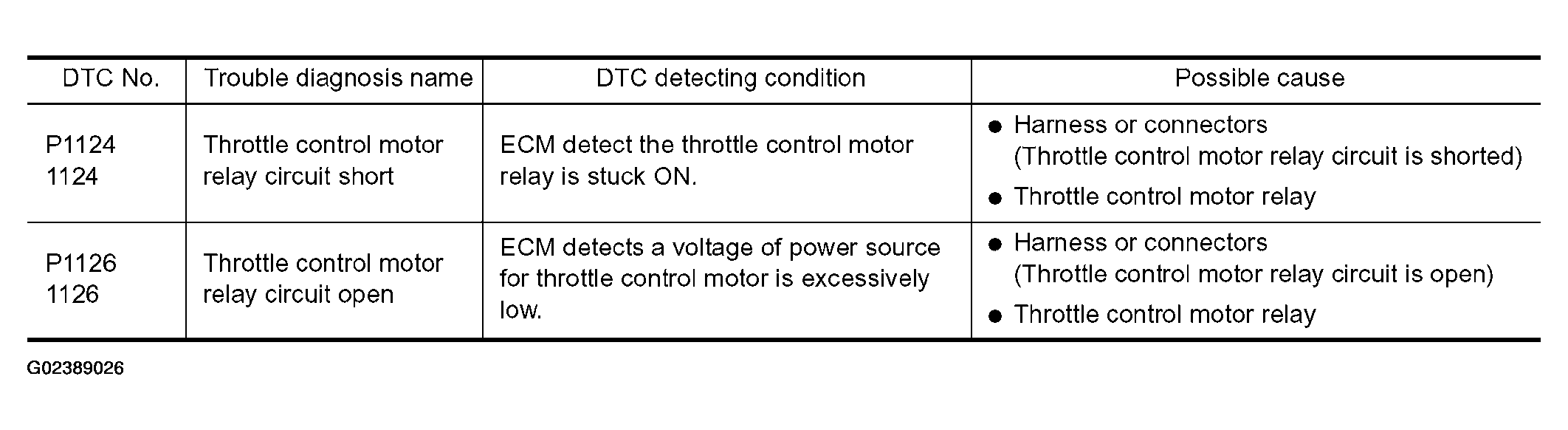

Fig 1: DTC P1124, P1126 Throttle Control Motor Relay - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
