DTC P1217: Engine Over Temperature
>>
Description
>>
System Description
>>
Cooling Fan Operation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cooling Fan Operation

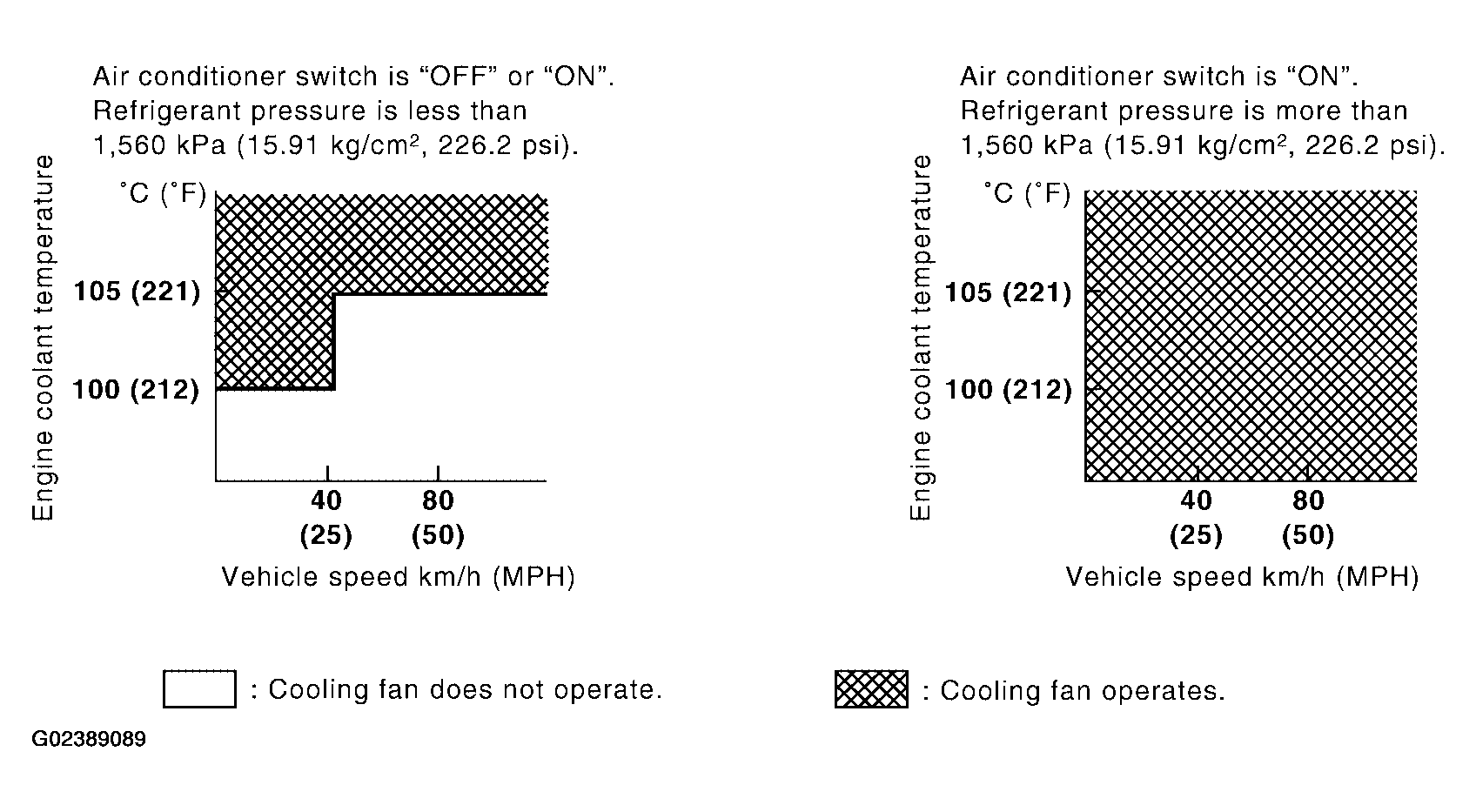

Fig 1: DTC P1217 Cooling Fan Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
