With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

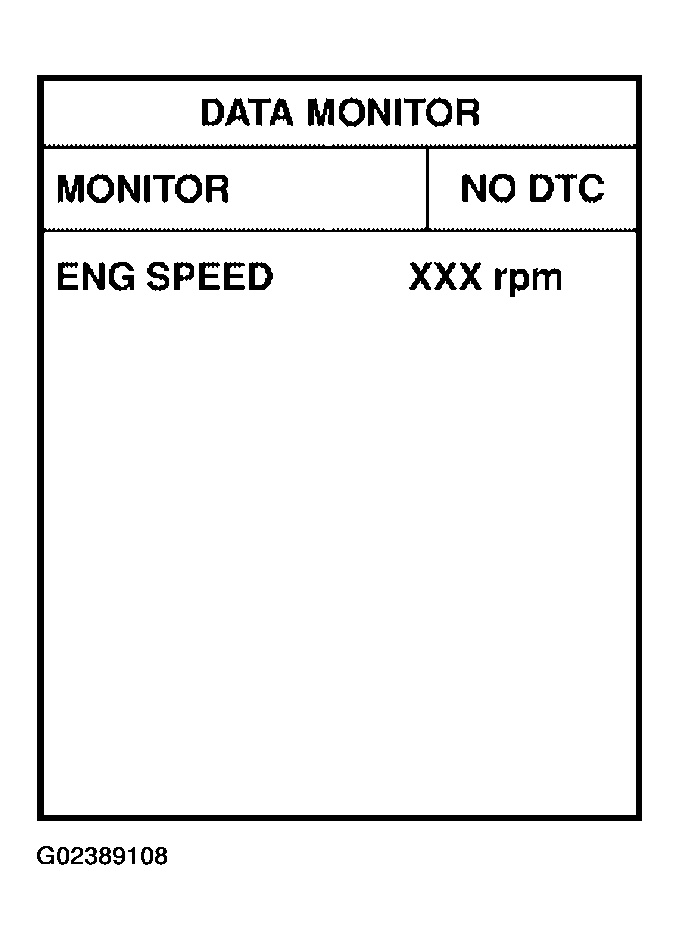

    Fig 1: DTC P1225 Selecting "DATA MONITOR" Mode With CONSULT-II
    G02389108Courtesy of NISSAN MOTOR CO., U.S.A.
