On Board Diagnosis Logic

To judge the malfunction, the A/F signal computed by ECM from the A/F sensor 1 signal is monitored not to be shifted to LEAN side or RICH side.

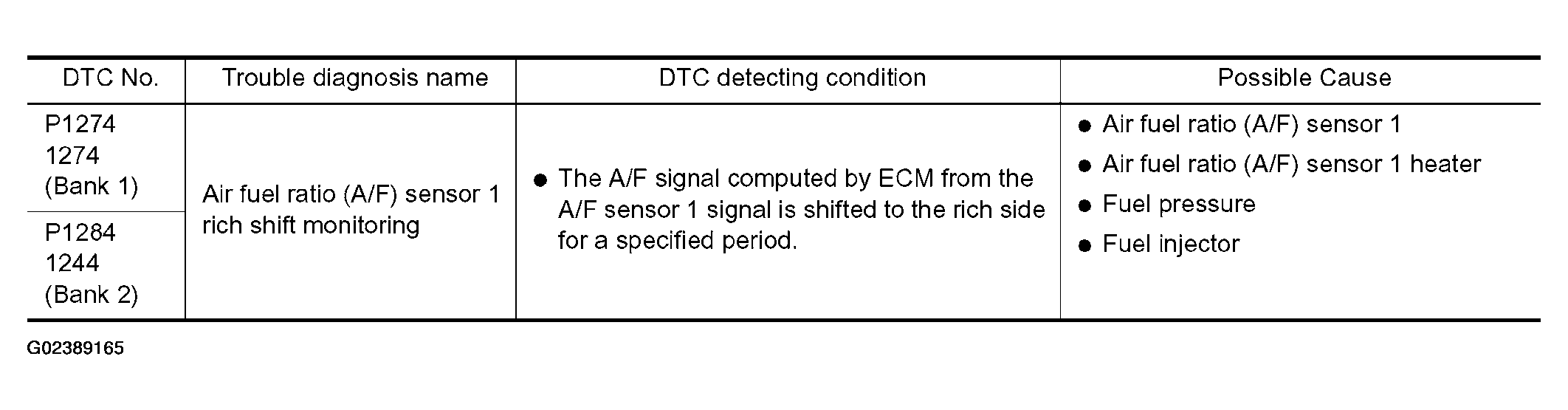

Fig 1: DTC P1274, P1284 A/F Sensor 1 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
