On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this diagnosis.

NOTE: If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to "DTC P0605 ECM ".

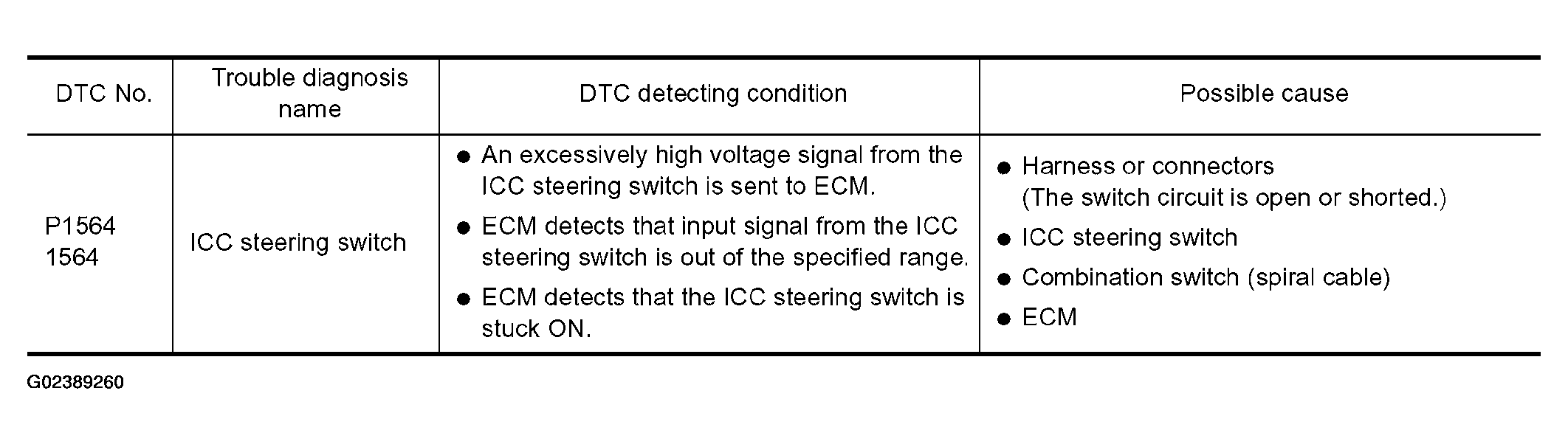

Fig 1: DTC P1564 - On Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
