Monitored Item

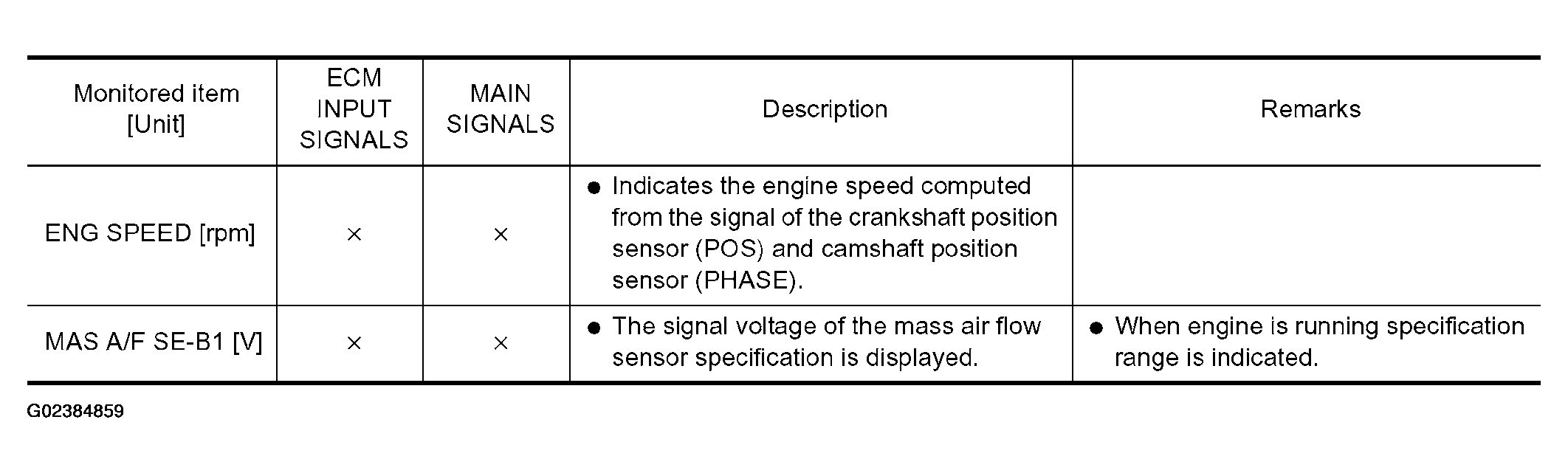

Fig 1: Data Monitor (SPEC) Mode - Monitored Item Description (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

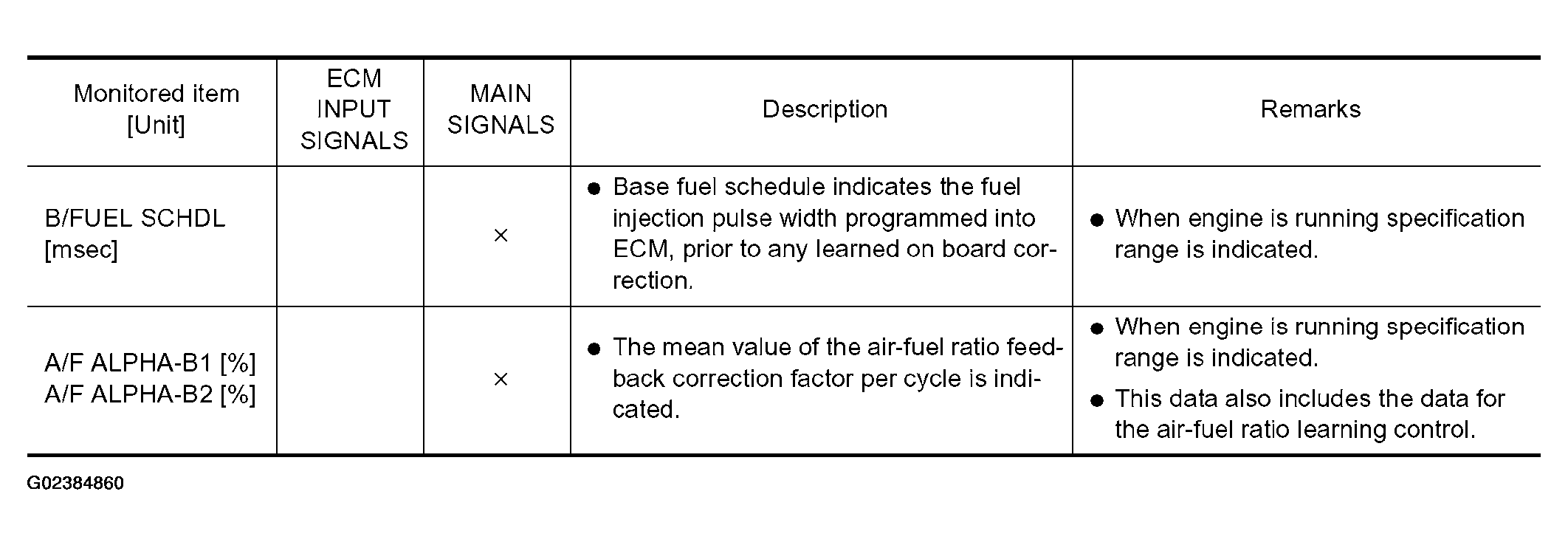

Fig 2: Data Monitor (SPEC) Mode - Monitored Item Description (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
