Automatic Transmission: Overhaul: Components

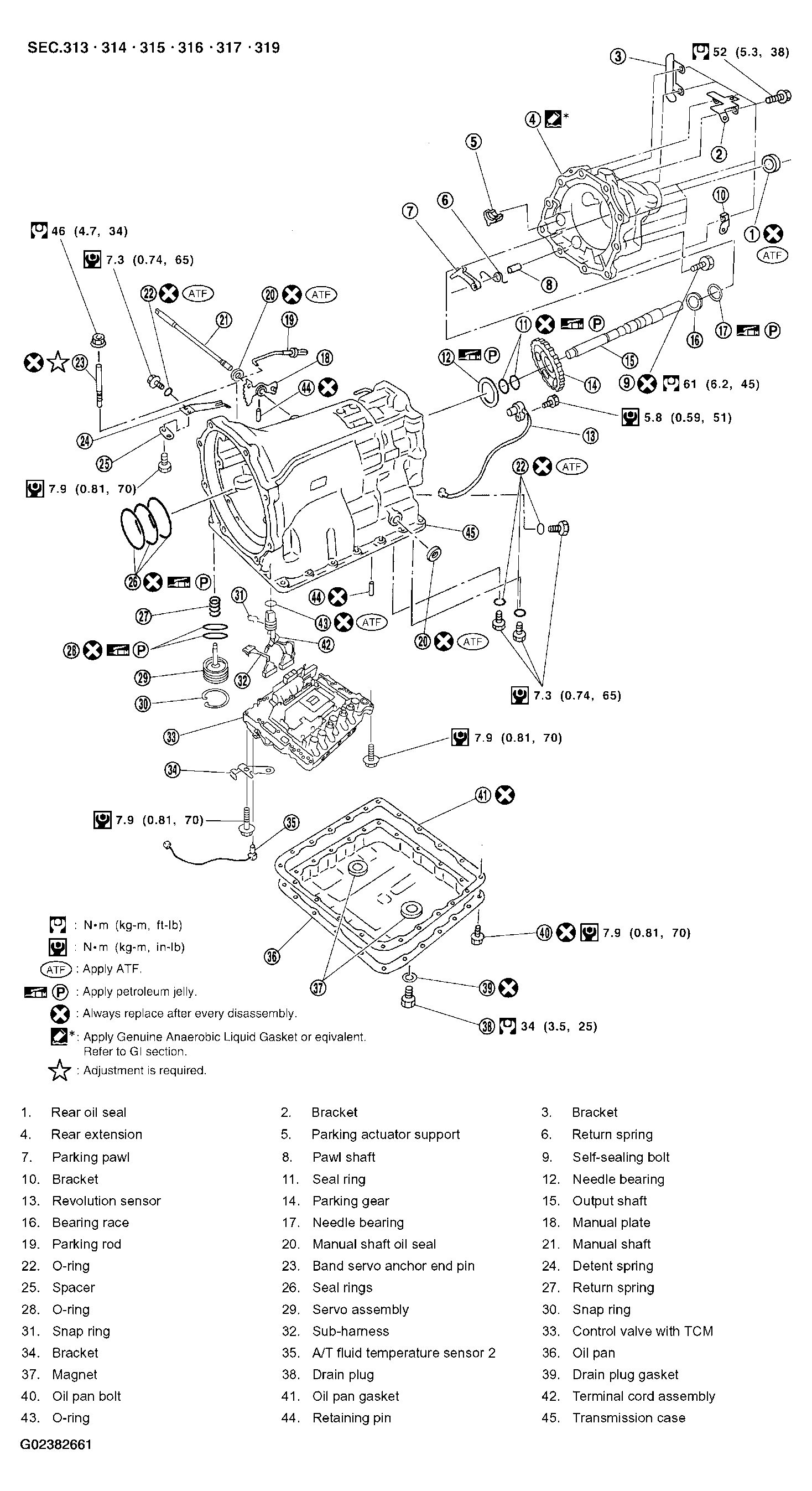

Fig 1: Exploded View Of Transmission Assembly Components - With Torque Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

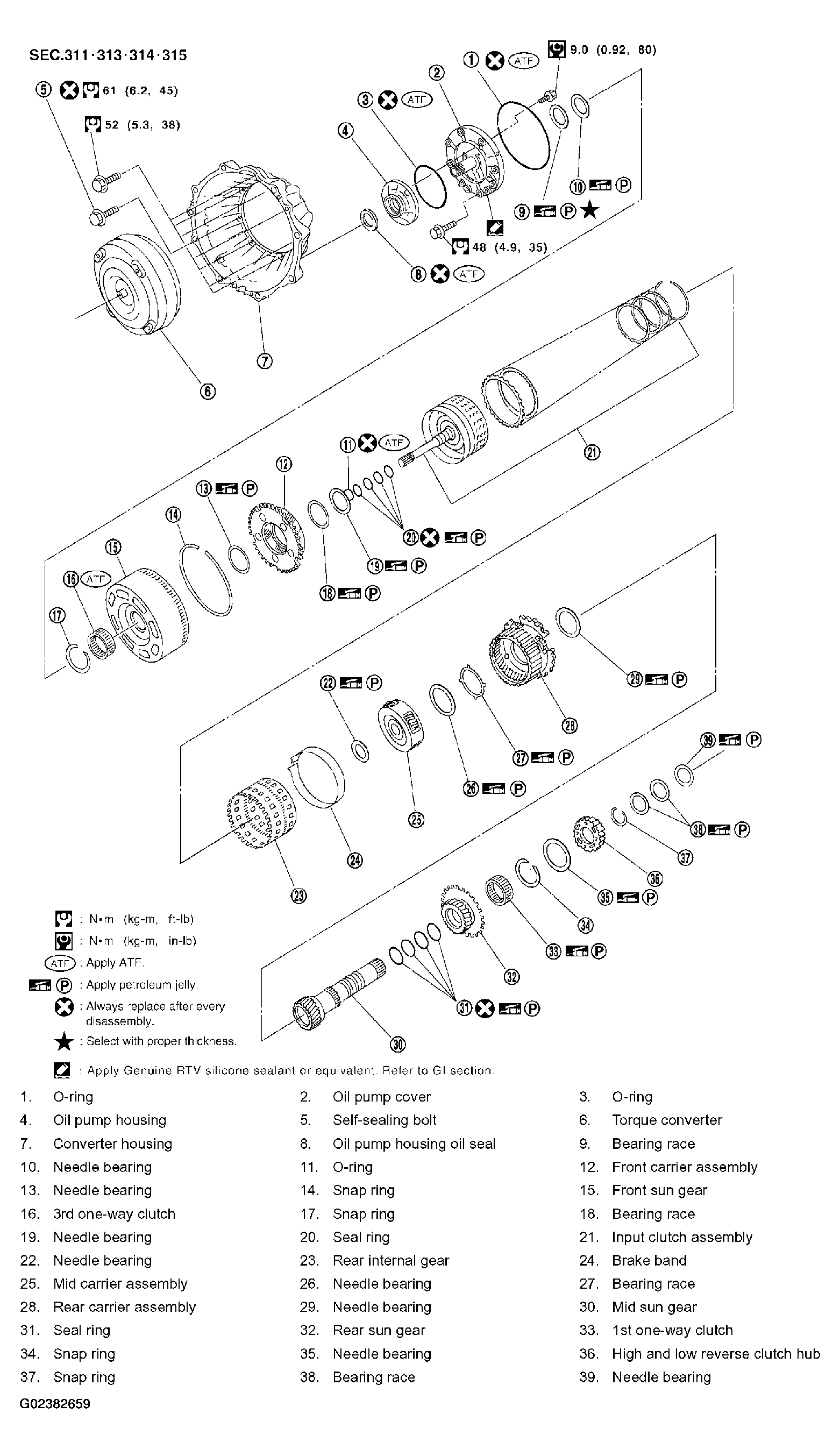

Fig 2: Exploded View Of Transmission Assembly Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Exploded View Of Transmission Assembly Components - 2WD Models - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

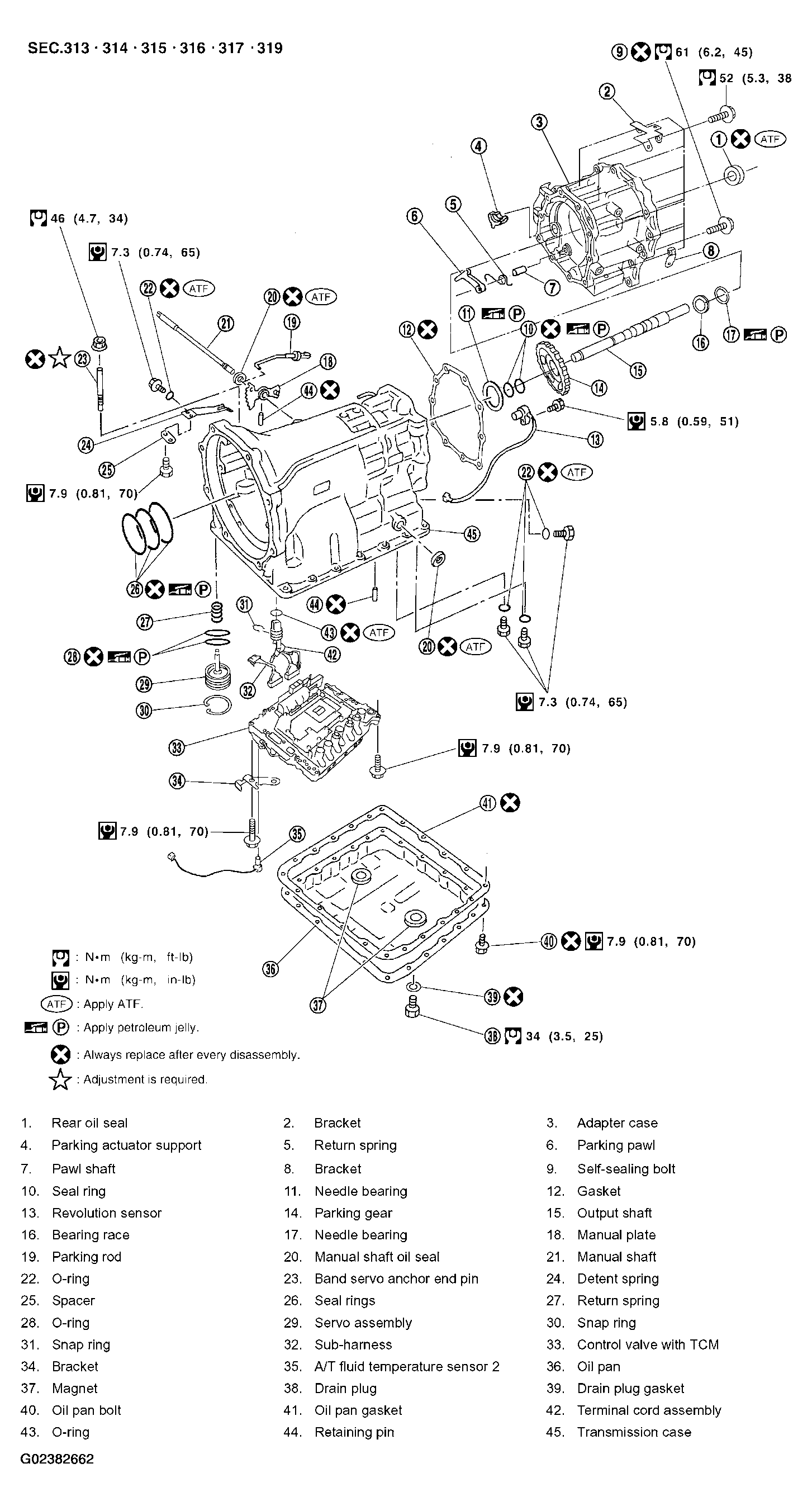

Fig 4: Exploded View Of Transmission Assembly Components - 4WD Models - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
