ALL-MODE 4WD Transfer Basic Control

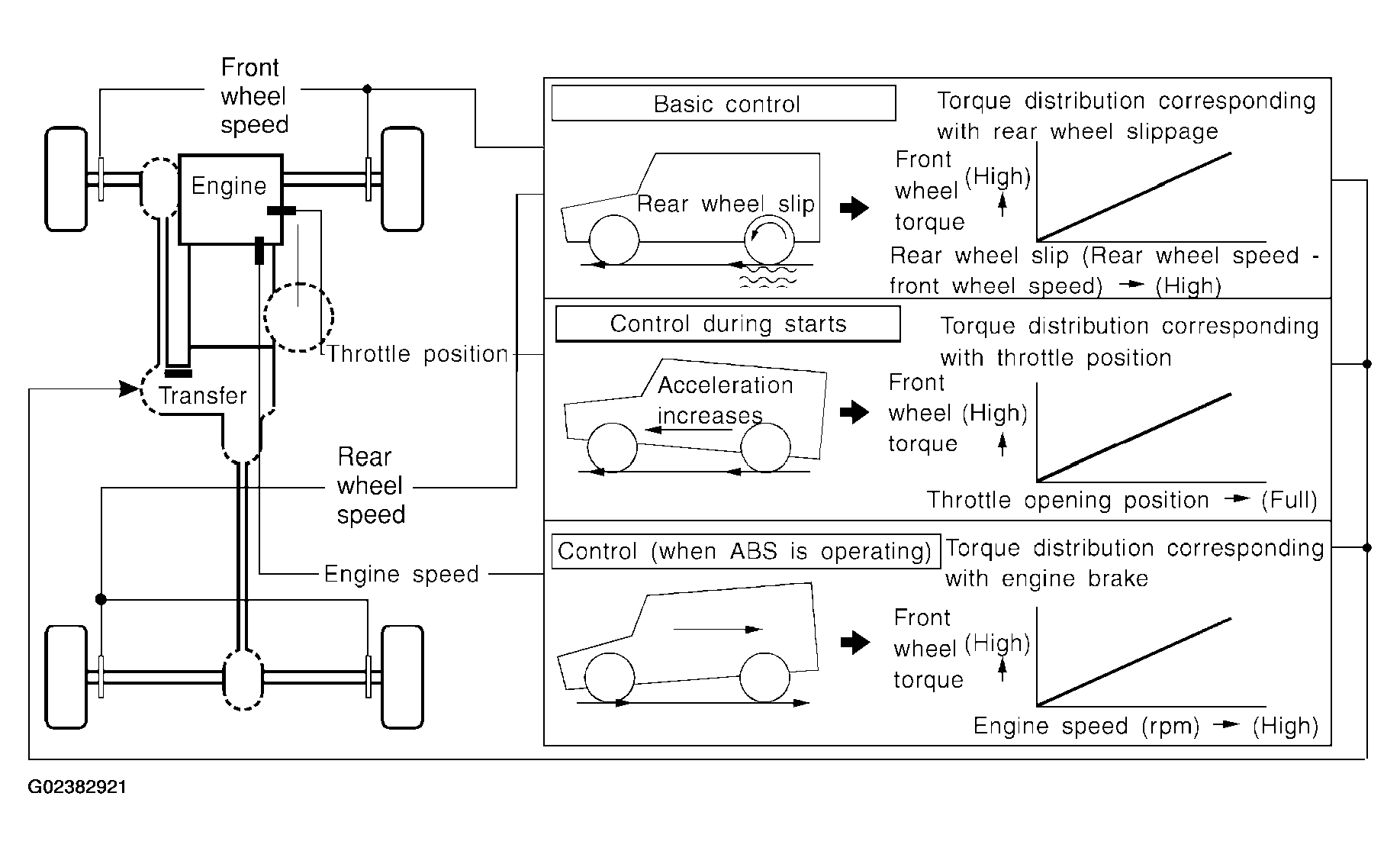

Fig 1: All-MODE 4WD Transfer Basic Control Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
