Disassembly and Assembly: Components

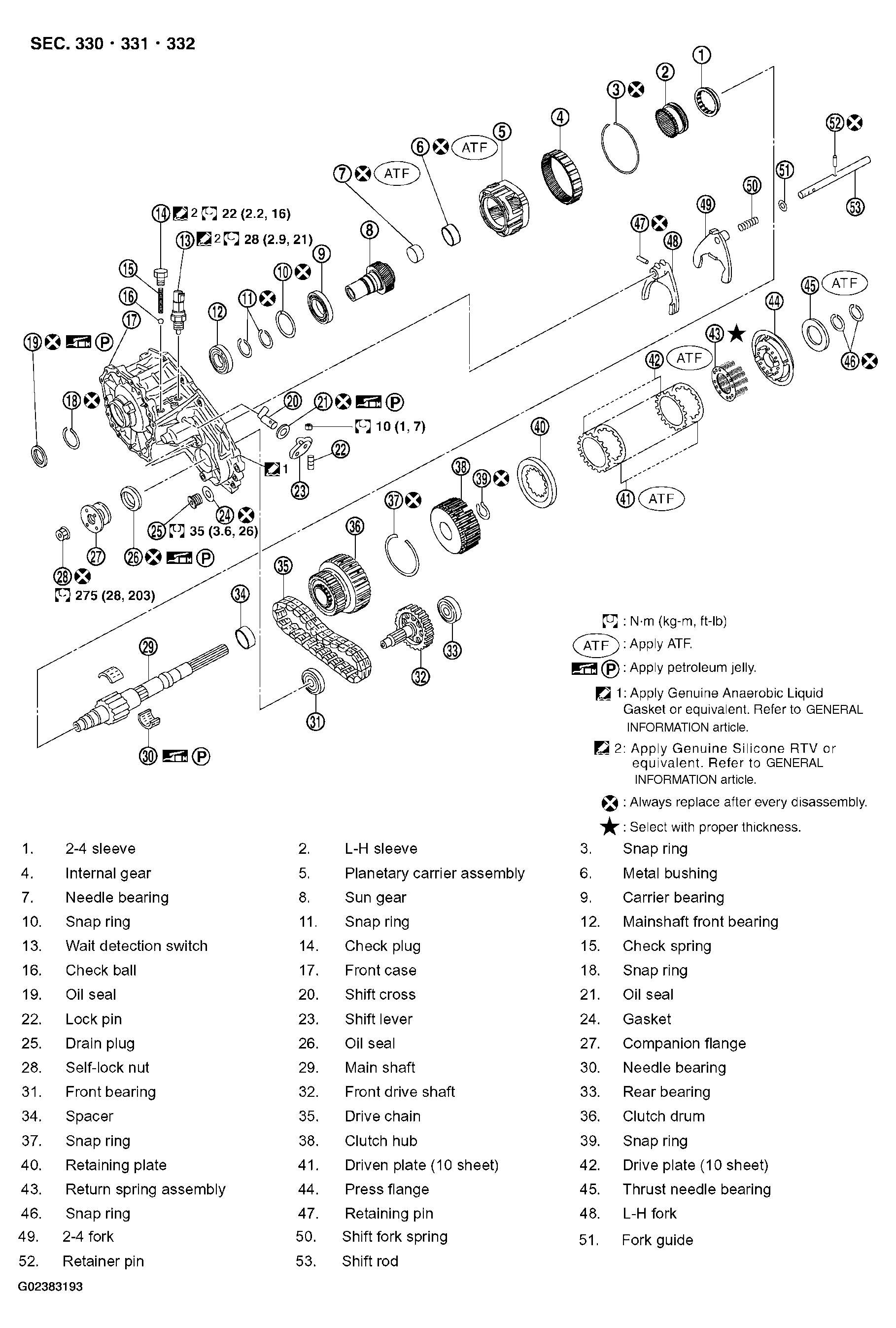

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications (1 Of 2)
G02383193Courtesy of NISSAN MOTOR CO., U.S.A.

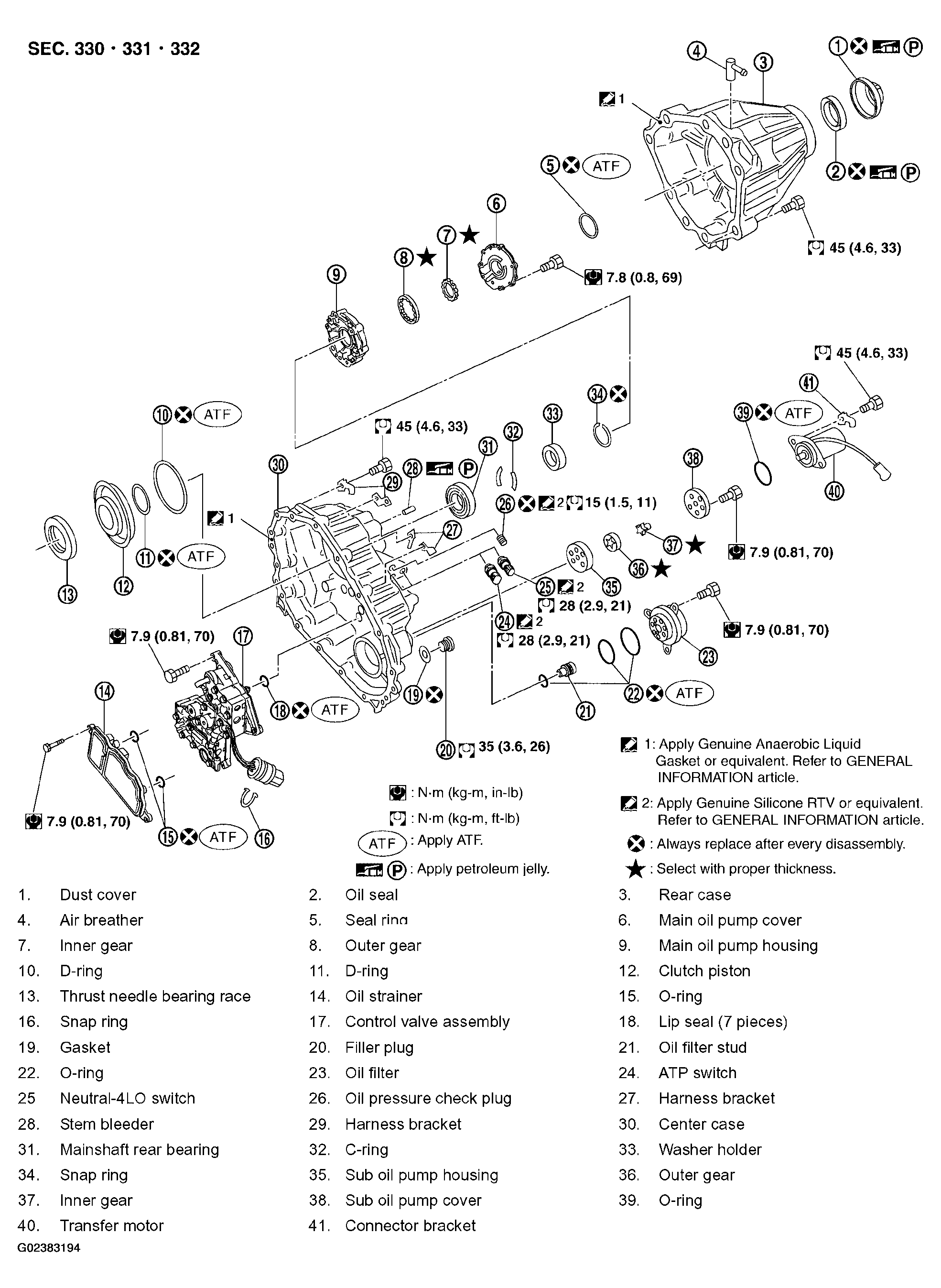

Fig 2: Exploded View Of Transfer Assembly Components With Torque Specifications (2 Of 2)
G02383194Courtesy of NISSAN MOTOR CO., U.S.A.
