Shift Rod Components

Check the working face of the shift rod and fork for wear, partial wear, bending and other abnormality. If any is found, replace with a new one.

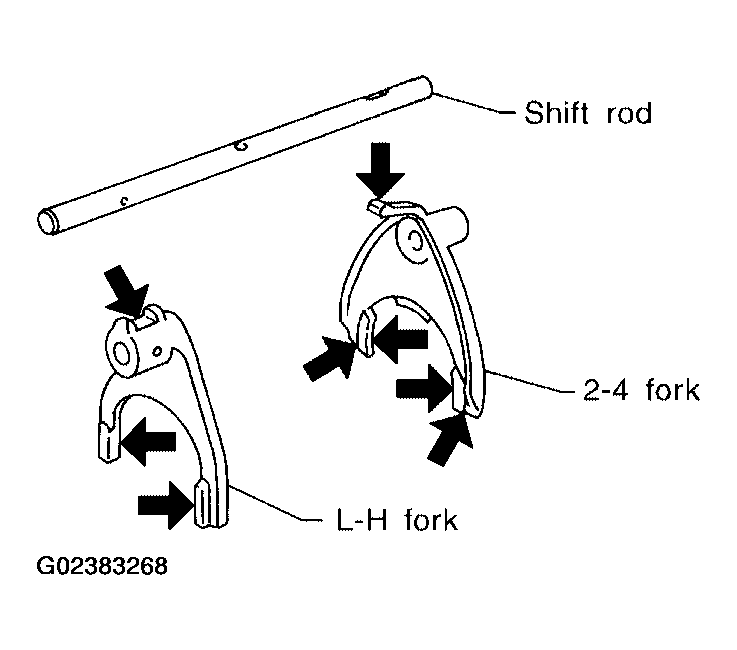

Fig 1: Identifying Shift Rod Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure the clearance between the shift fork and sleeve. If it is out of specification, replace it with a new one.
1. Specification: Less than 0.36 mm (0.0142 in)

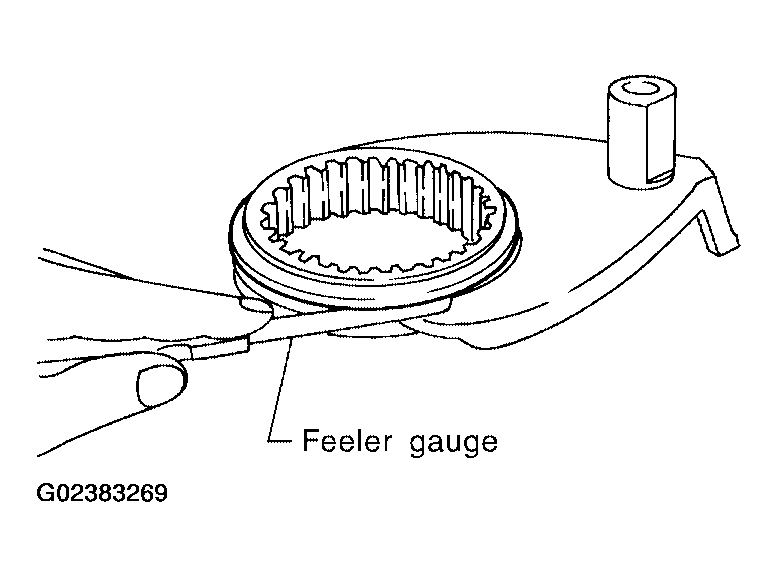

Fig 2: Measuring Clearance Between Shift Fork And Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
