Consult-II Reference Value In Data Monitor Mode
Data are reference value.

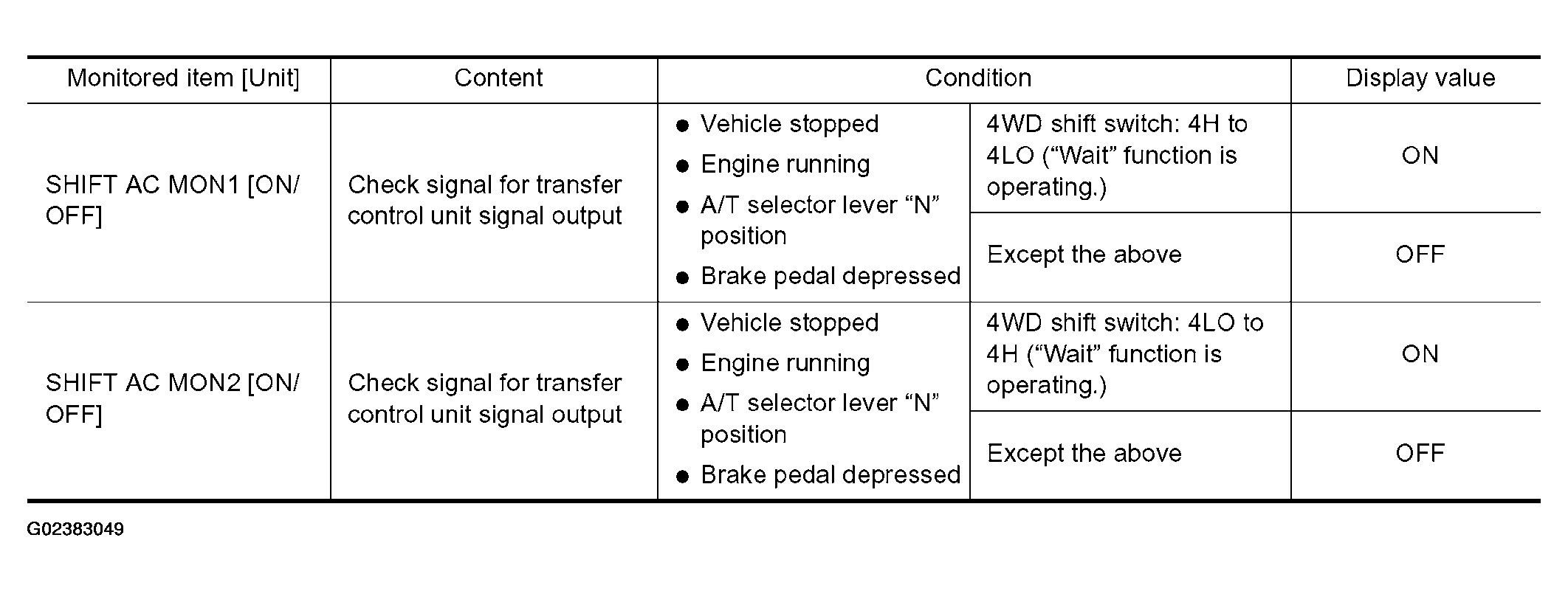

Fig 1: Transfer Control Device - CONSULT-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
