Specifications Between Transfer Control Unit Terminals

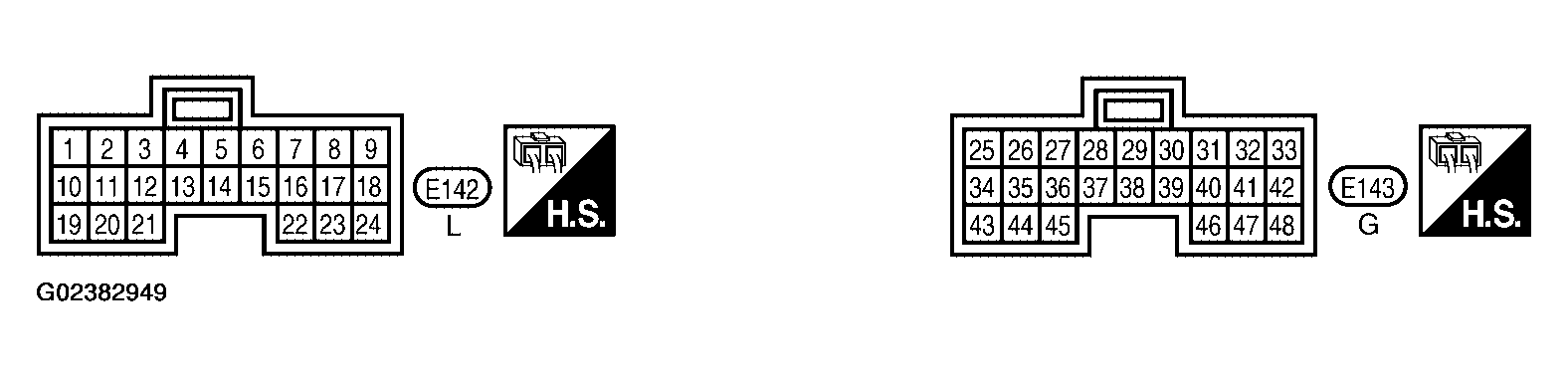

Fig 1: Transfer Control Unit Terminal Connector Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Data are reference value and are measured between each terminal and ground.

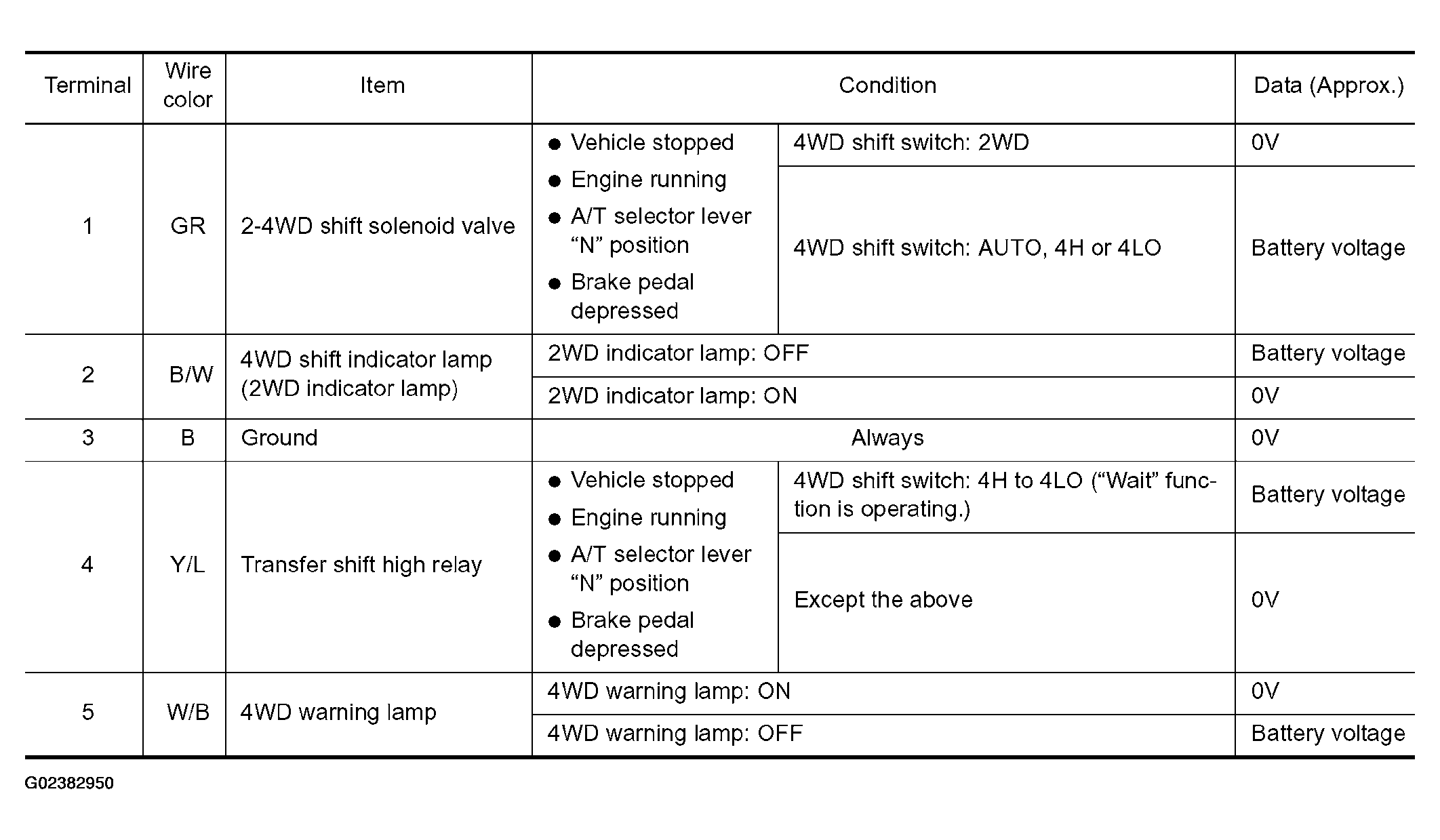

Fig 2: Specifications Between Transfer Control Unit Terminals (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

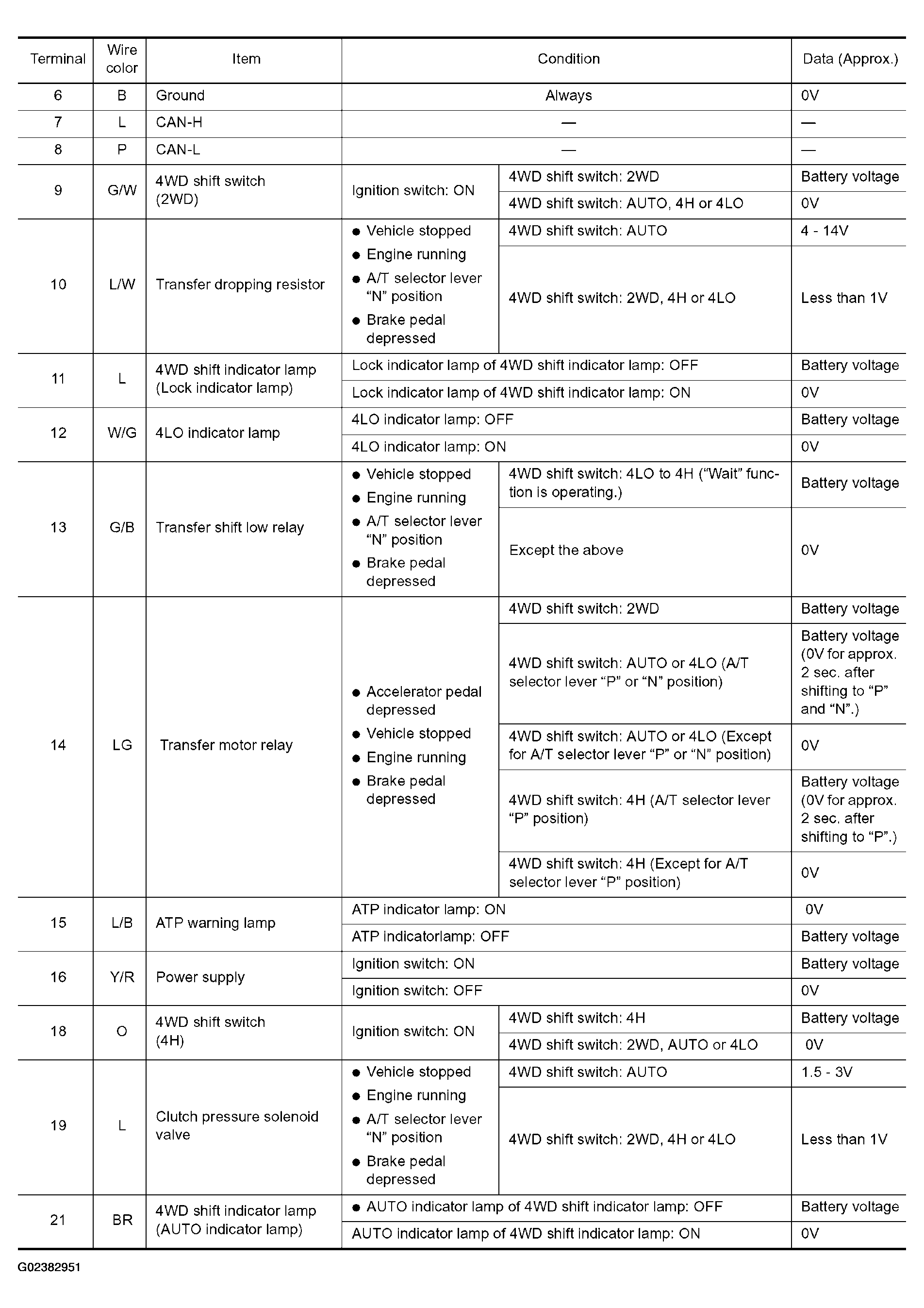

Fig 3: Specifications Between Transfer Control Unit Terminals (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

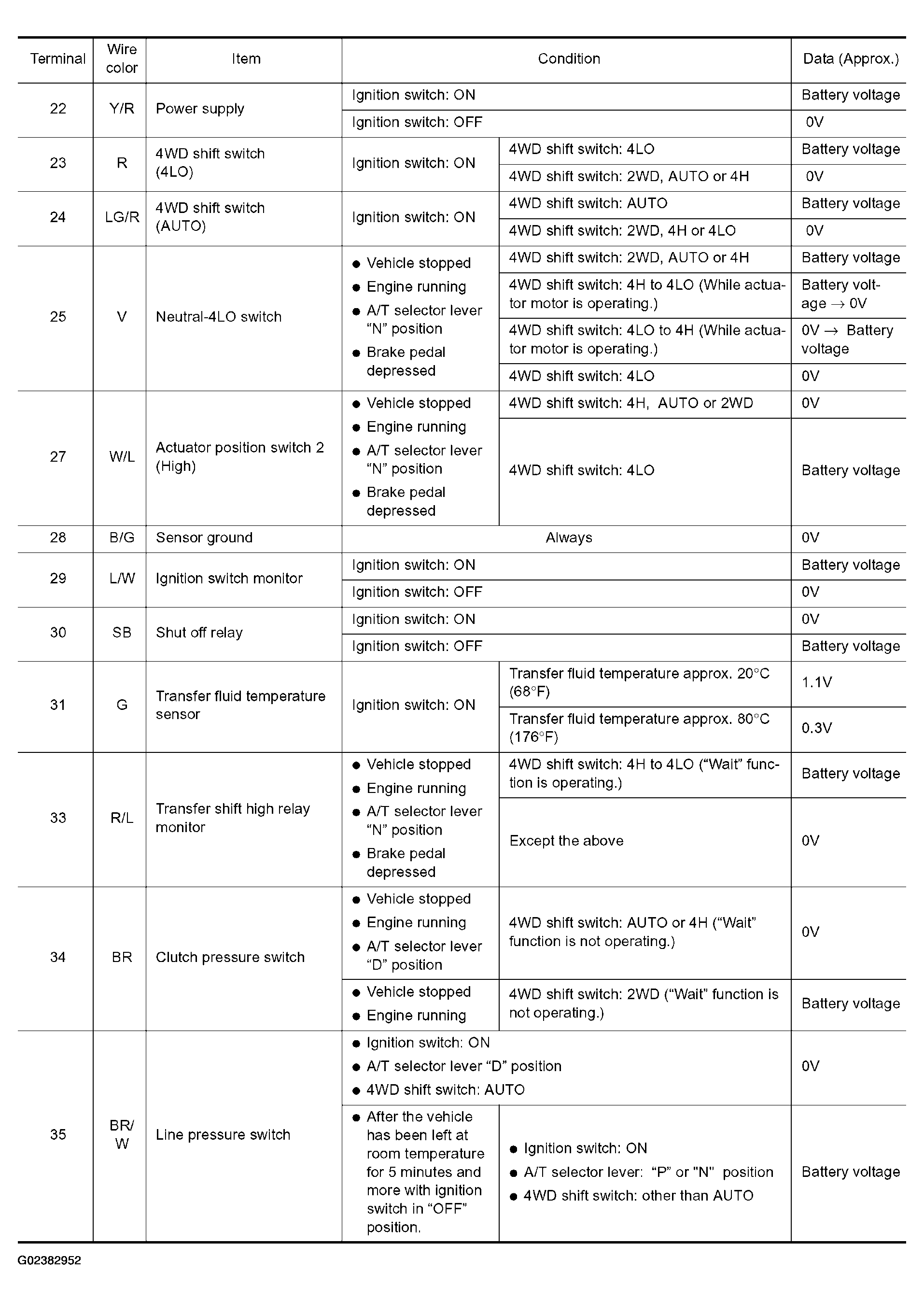

Fig 4: Specifications Between Transfer Control Unit Terminals (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

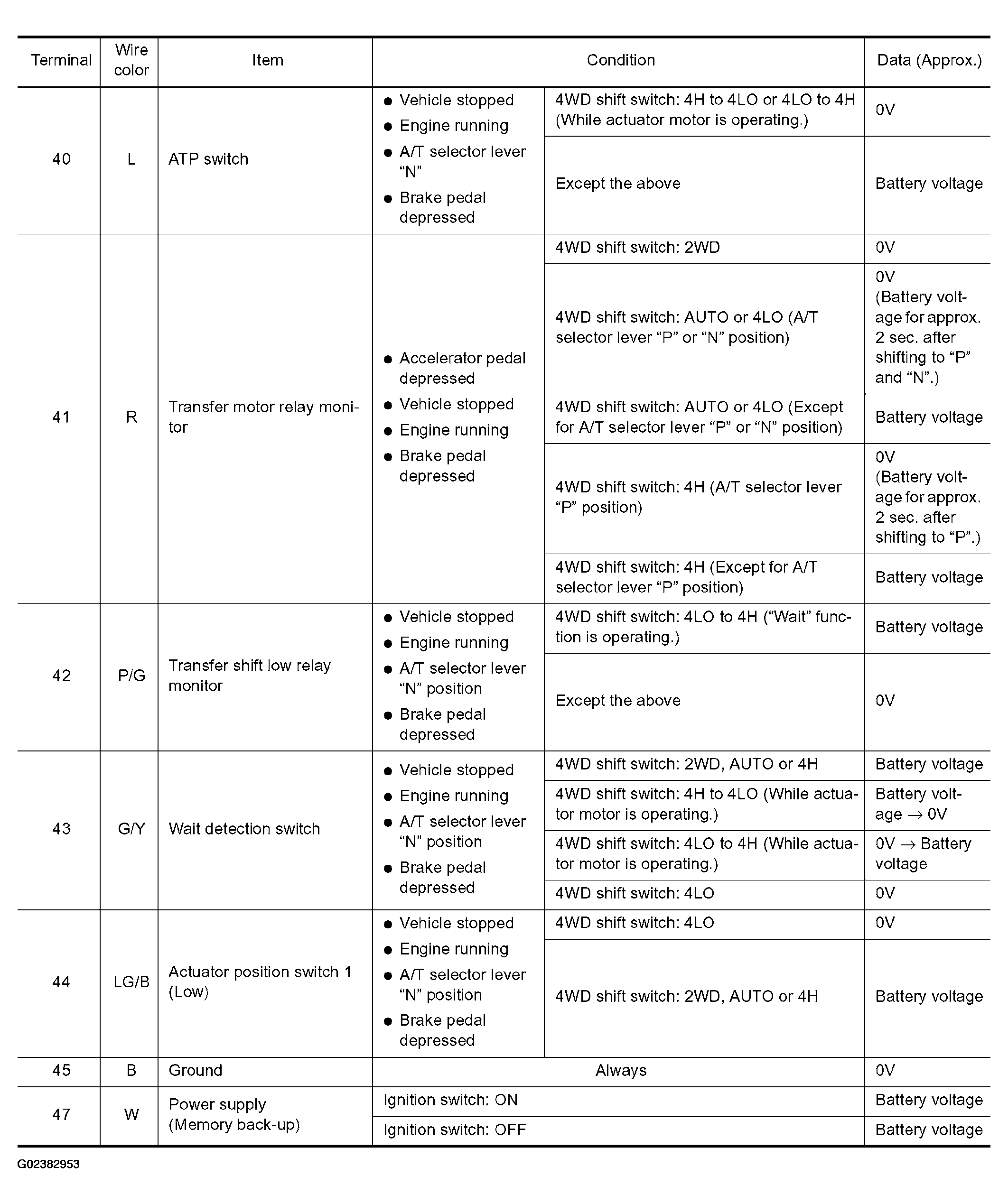

Fig 5: Specifications Between Transfer Control Unit Terminals (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: When using a circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
