Specifications with CONSULT-II

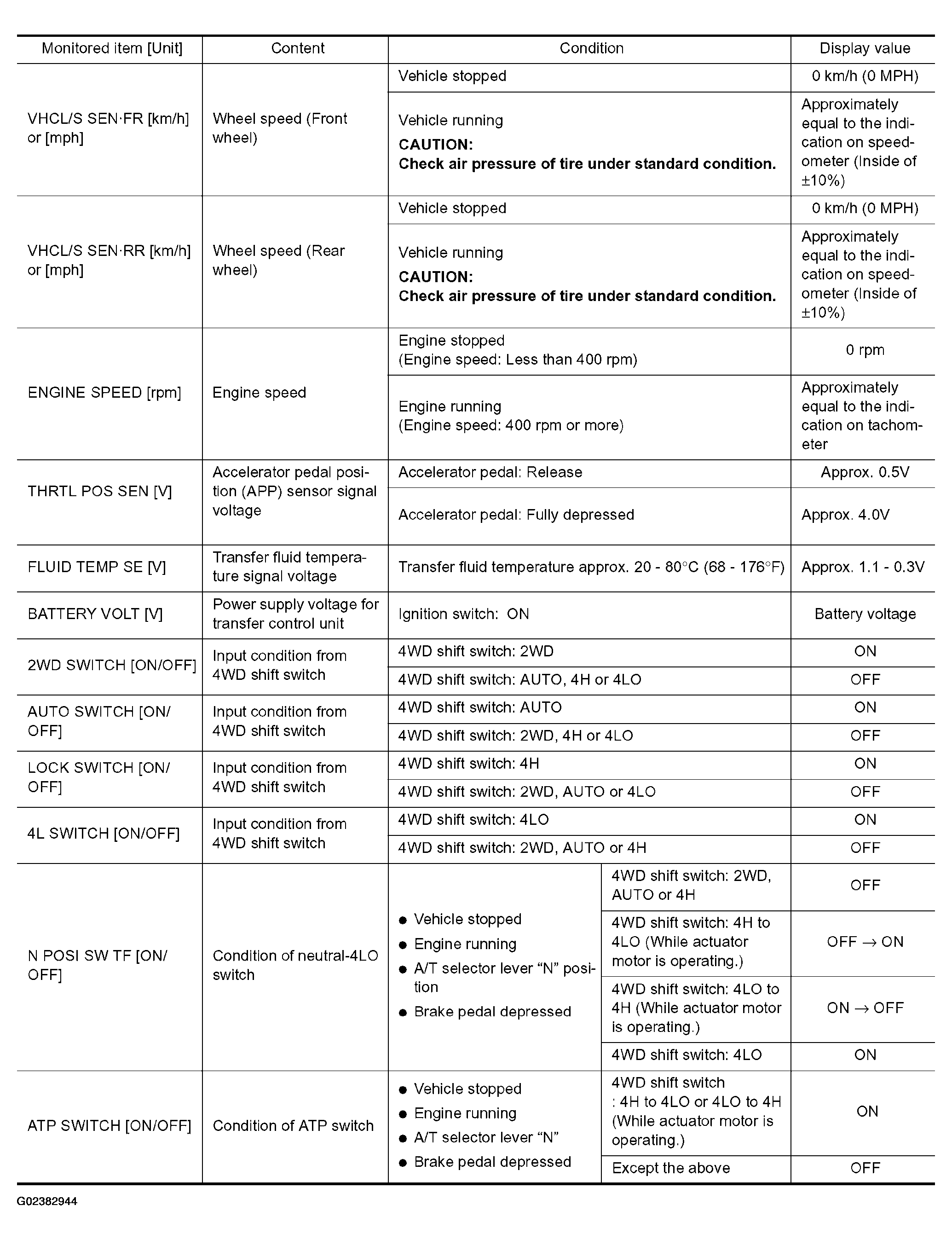

Fig 1: Specifications With CONSULT-II (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

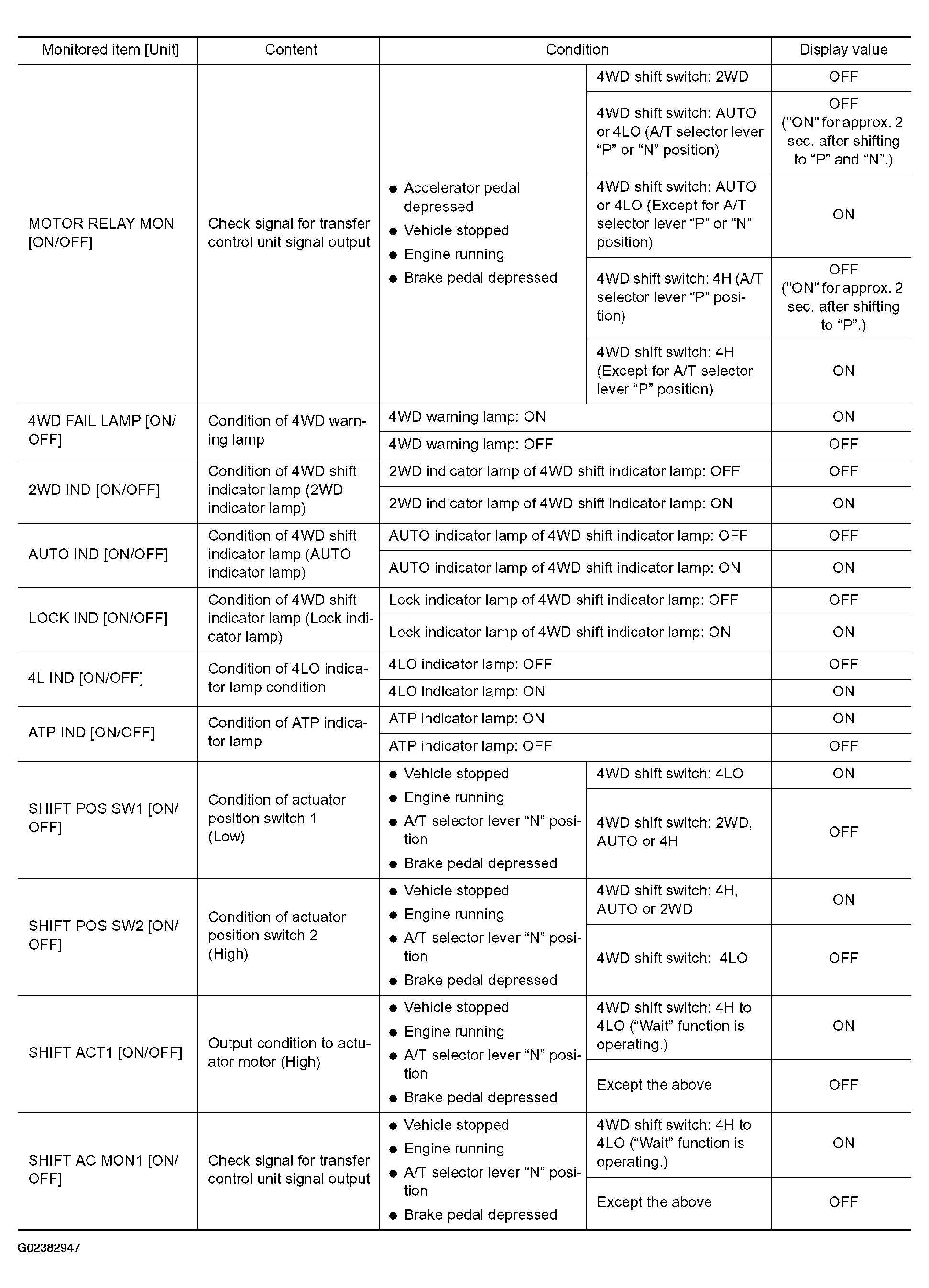

Fig 2: Specifications With CONSULT-II (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

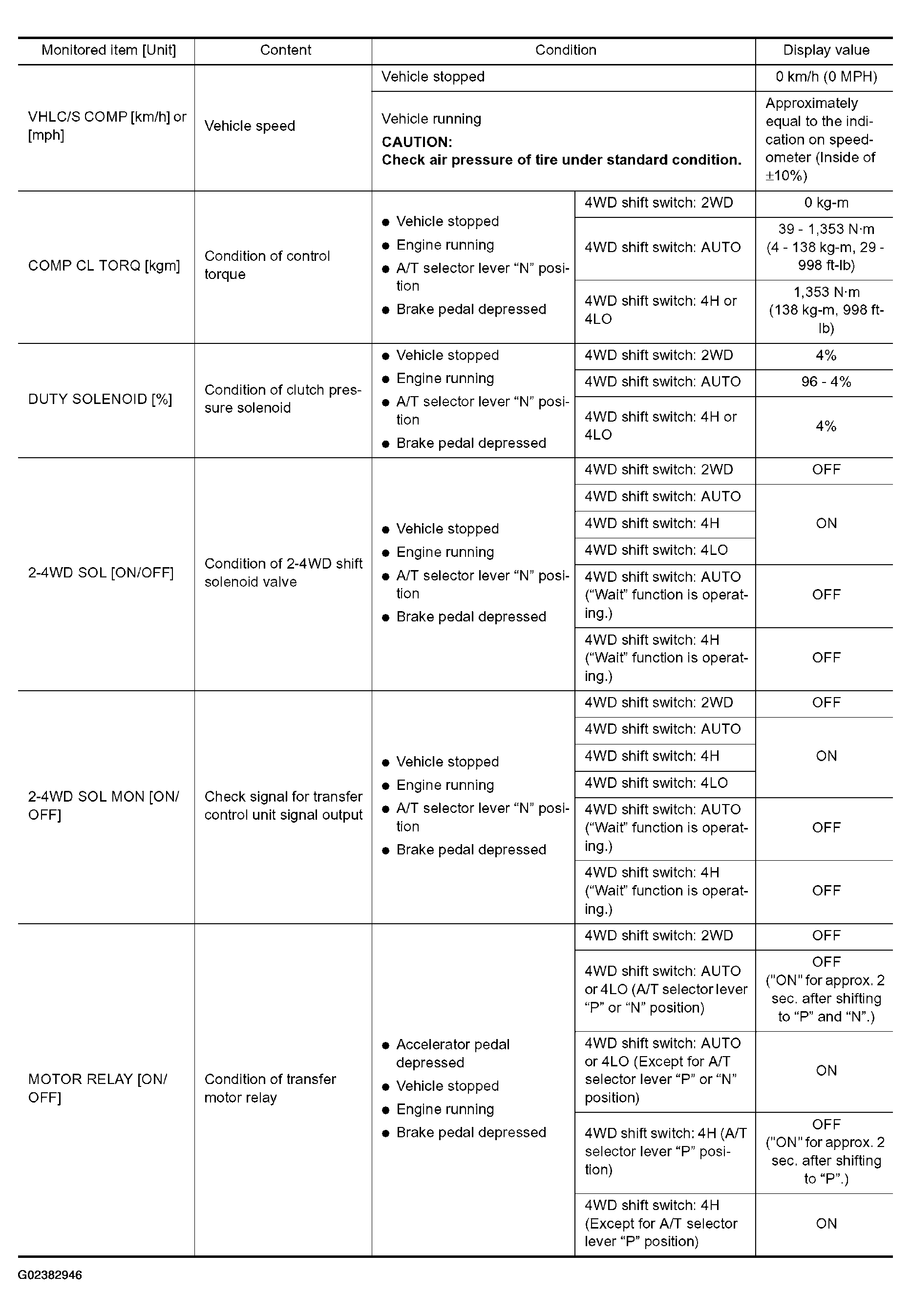

Fig 3: Specifications With CONSULT-II (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

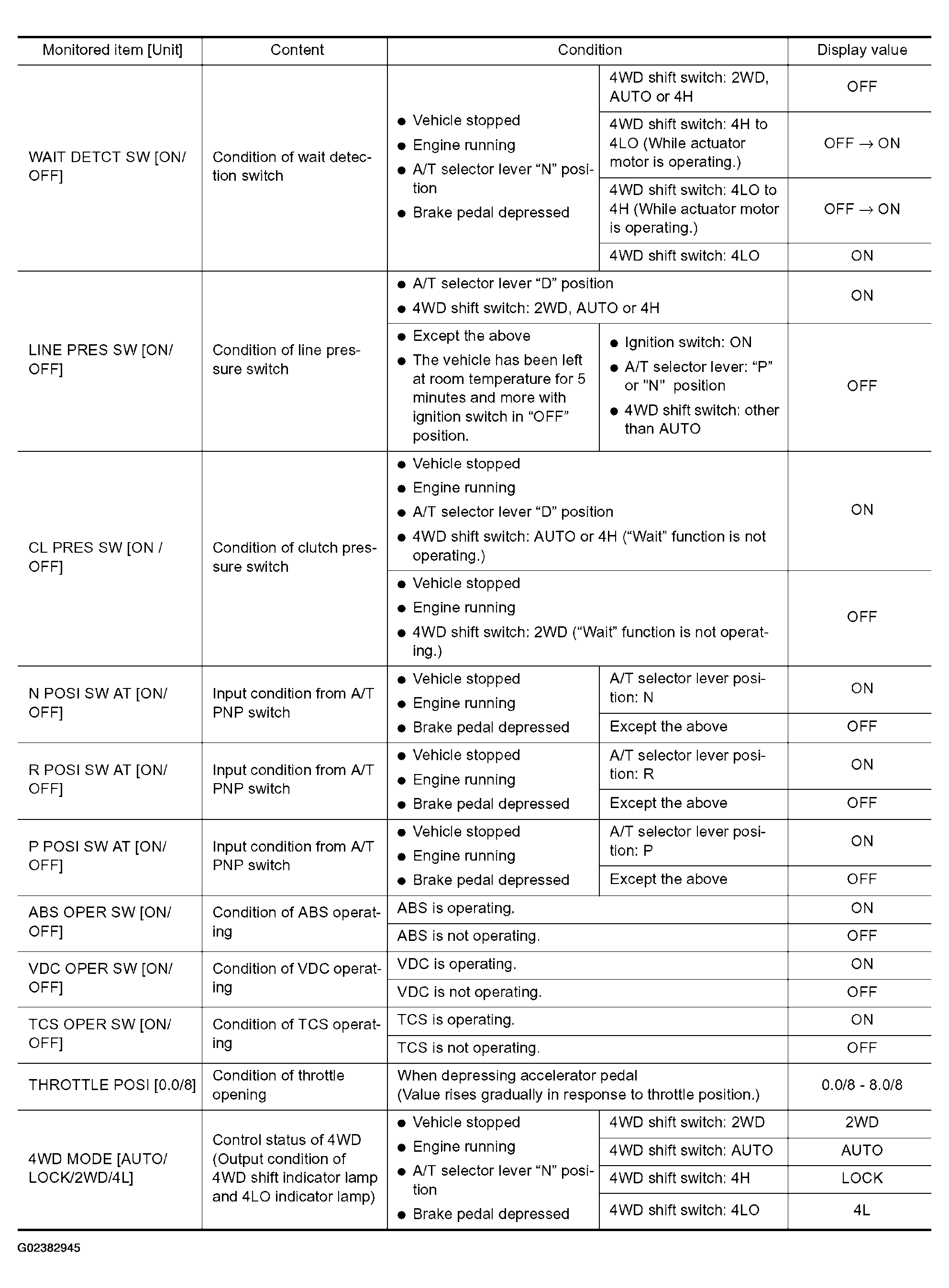

Fig 4: Specifications With CONSULT-II (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

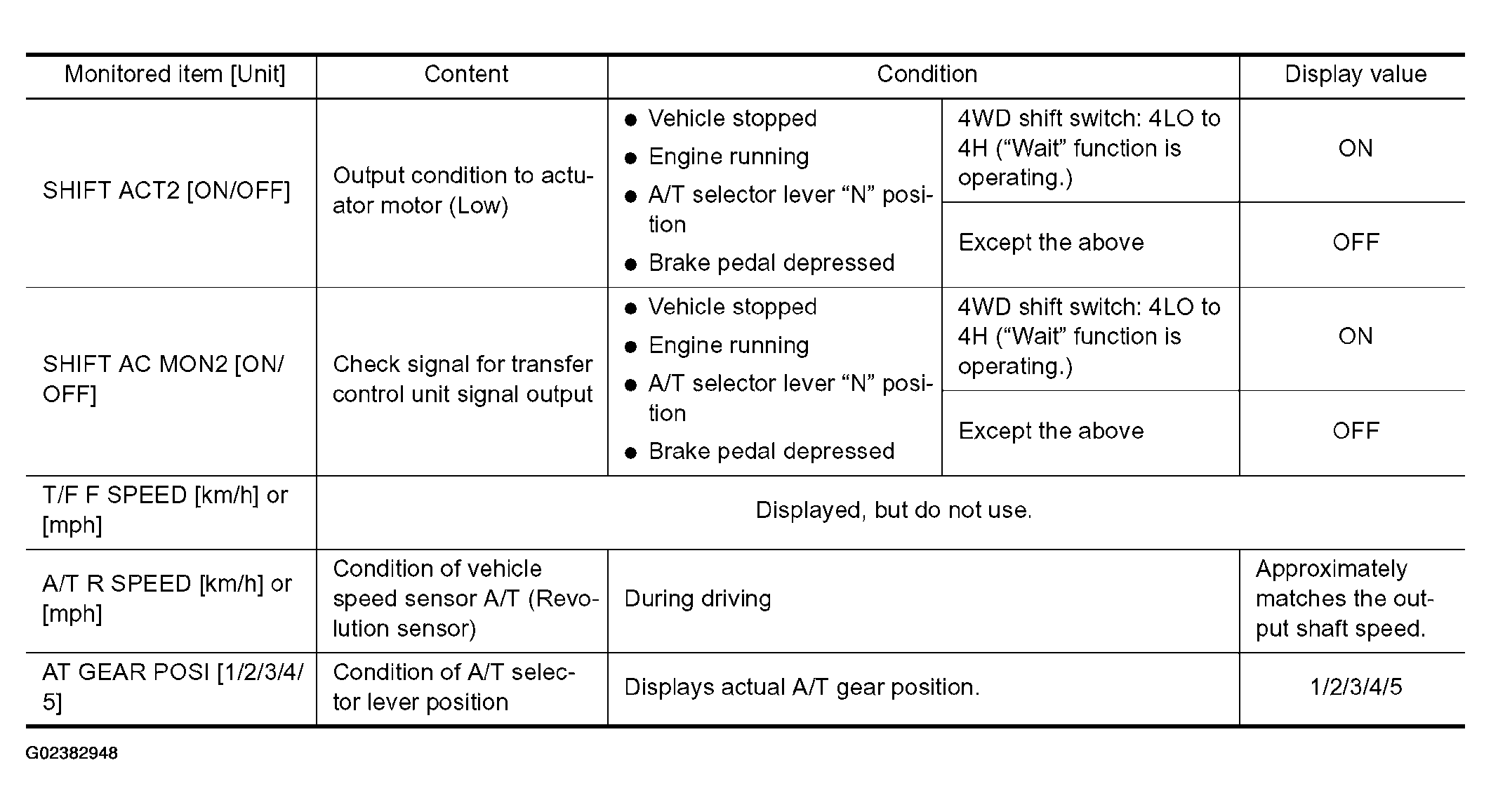

Fig 5: Specifications With CONSULT-II (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
