Removal and Installation: Removal

  1. Remove center console. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove yaw rate/side/decel G sensor attaching nuts.
    CAUTION:
    • Do not use power tools to remove or install yaw rate/side/decel G sensor.
    • Do not drop or strike the yaw rate/side/decel G sensor.
  3. Disconnect harness connector and remove the yaw rate/side/decel G sensor.

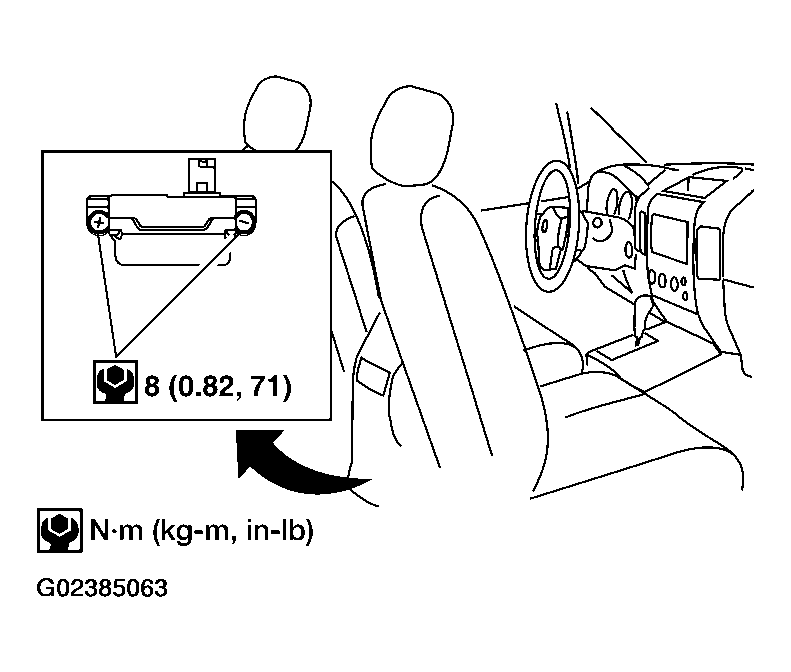

    Fig 1: G Sensor Attaching Nuts With Torque Specifications
    G02385063Courtesy of NISSAN MOTOR CO., U.S.A.
