ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

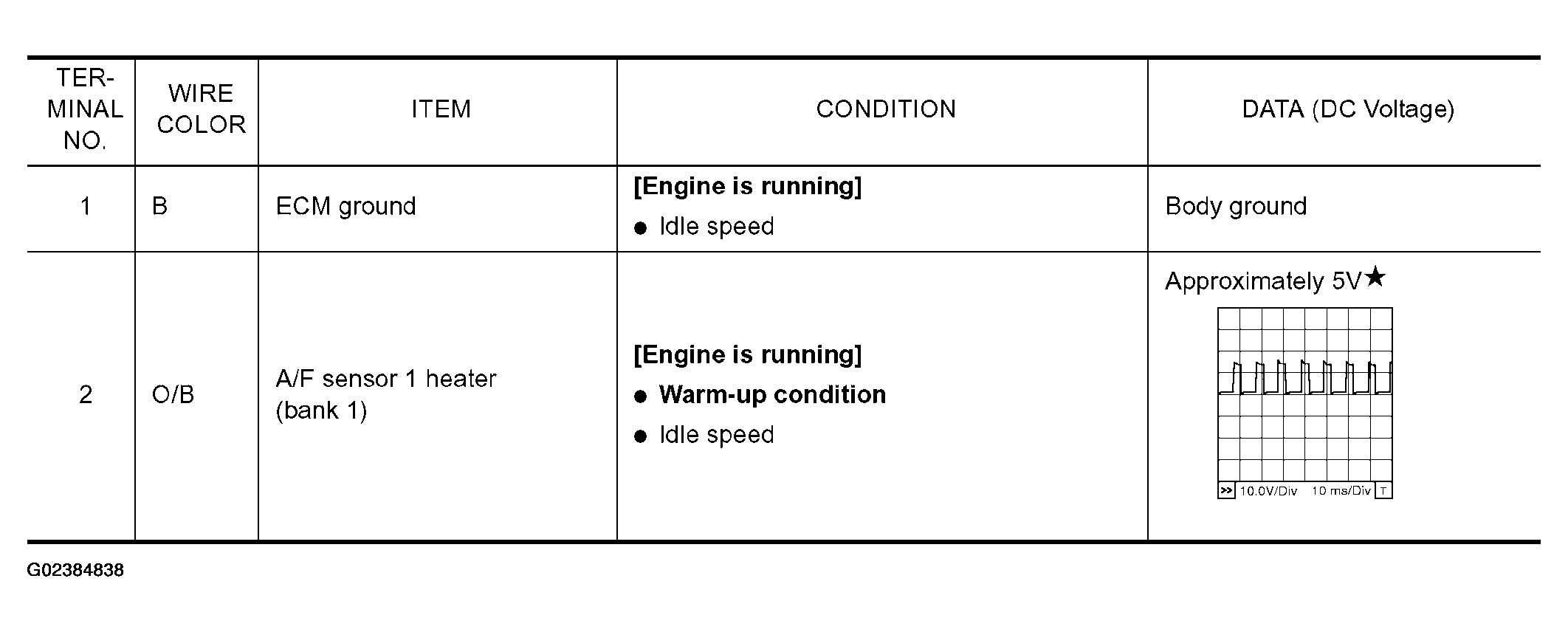

Fig 1: ECM Specification Data (1 Of 8)

G02384838

Courtesy of NISSAN MOTOR CO., U.S.A.

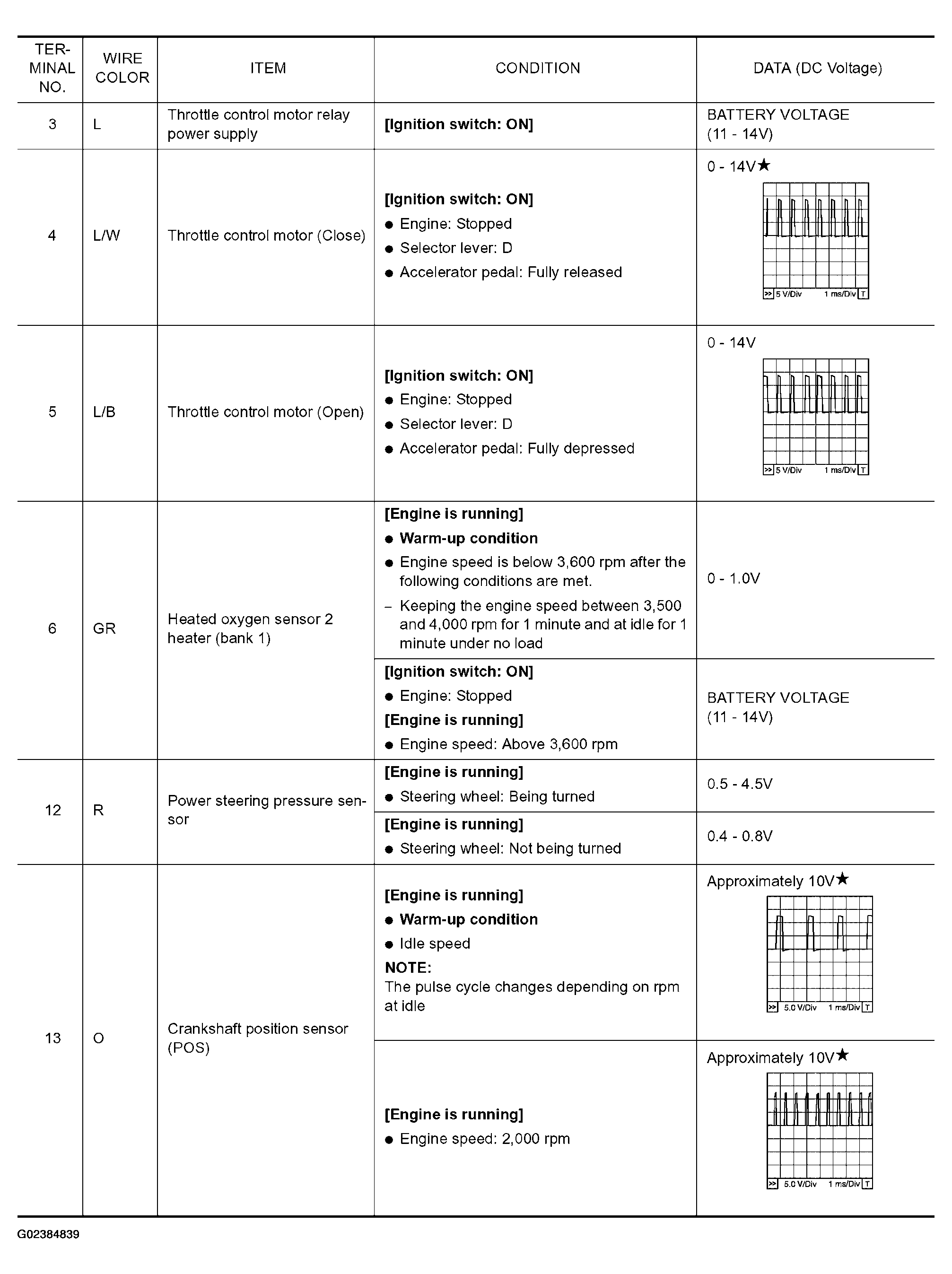

Fig 2: ECM Specification Data (2 Of 8)

G02384839

Courtesy of NISSAN MOTOR CO., U.S.A.

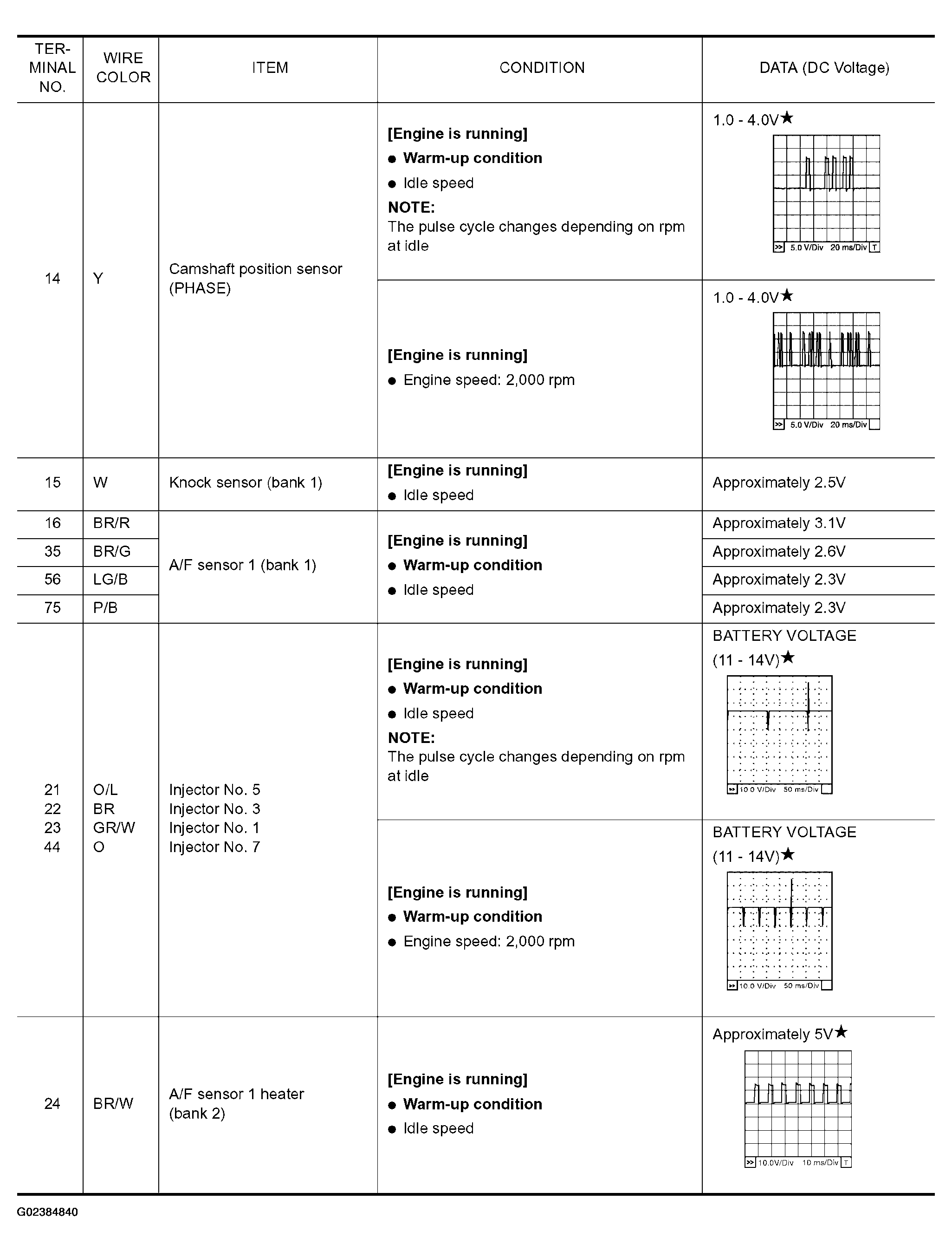

Fig 3: ECM Specification Data (3 Of 8)

G02384840

Courtesy of NISSAN MOTOR CO., U.S.A.

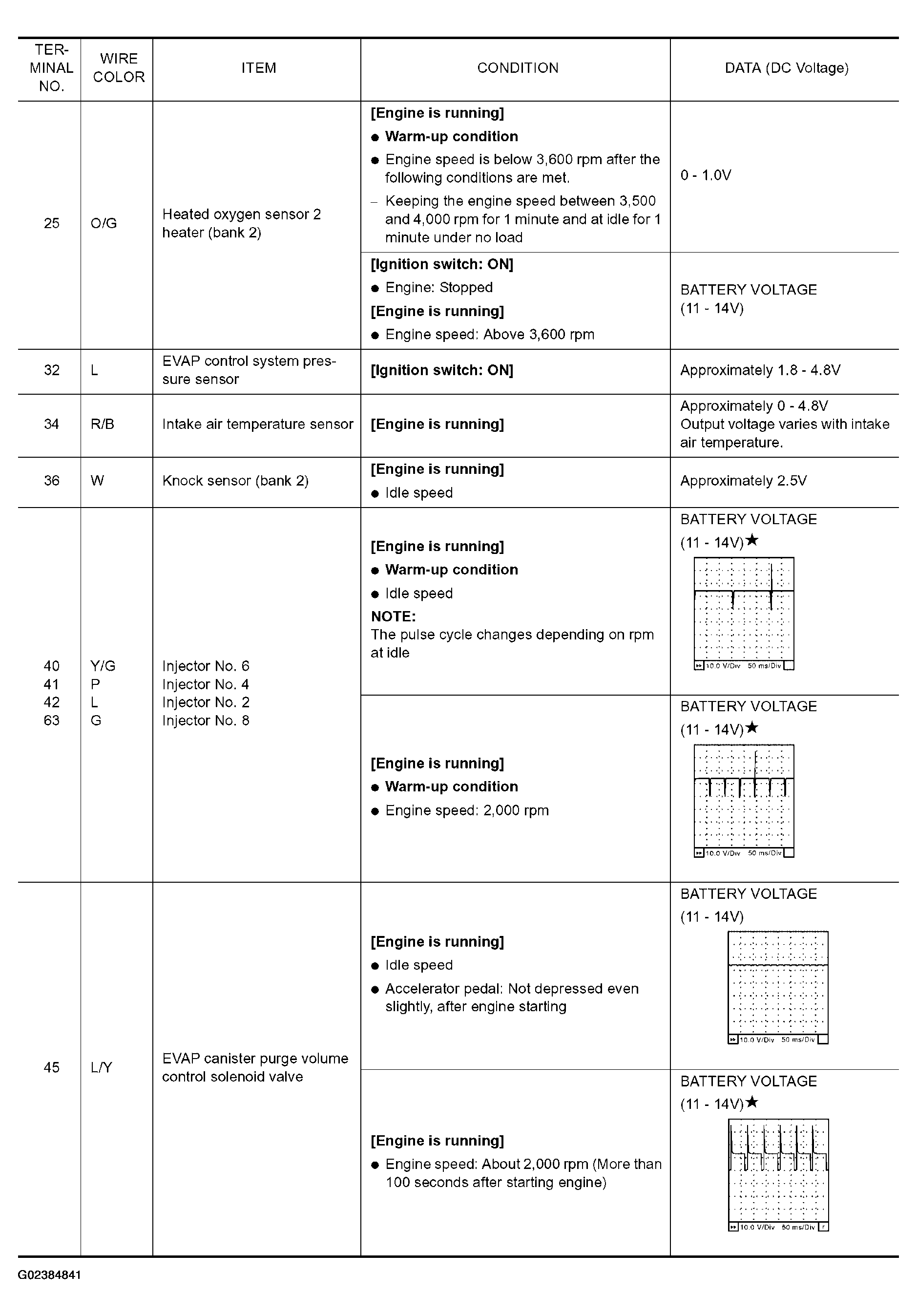

Fig 4: ECM Specification Data (4 Of 8)

G02384841

Courtesy of NISSAN MOTOR CO., U.S.A.

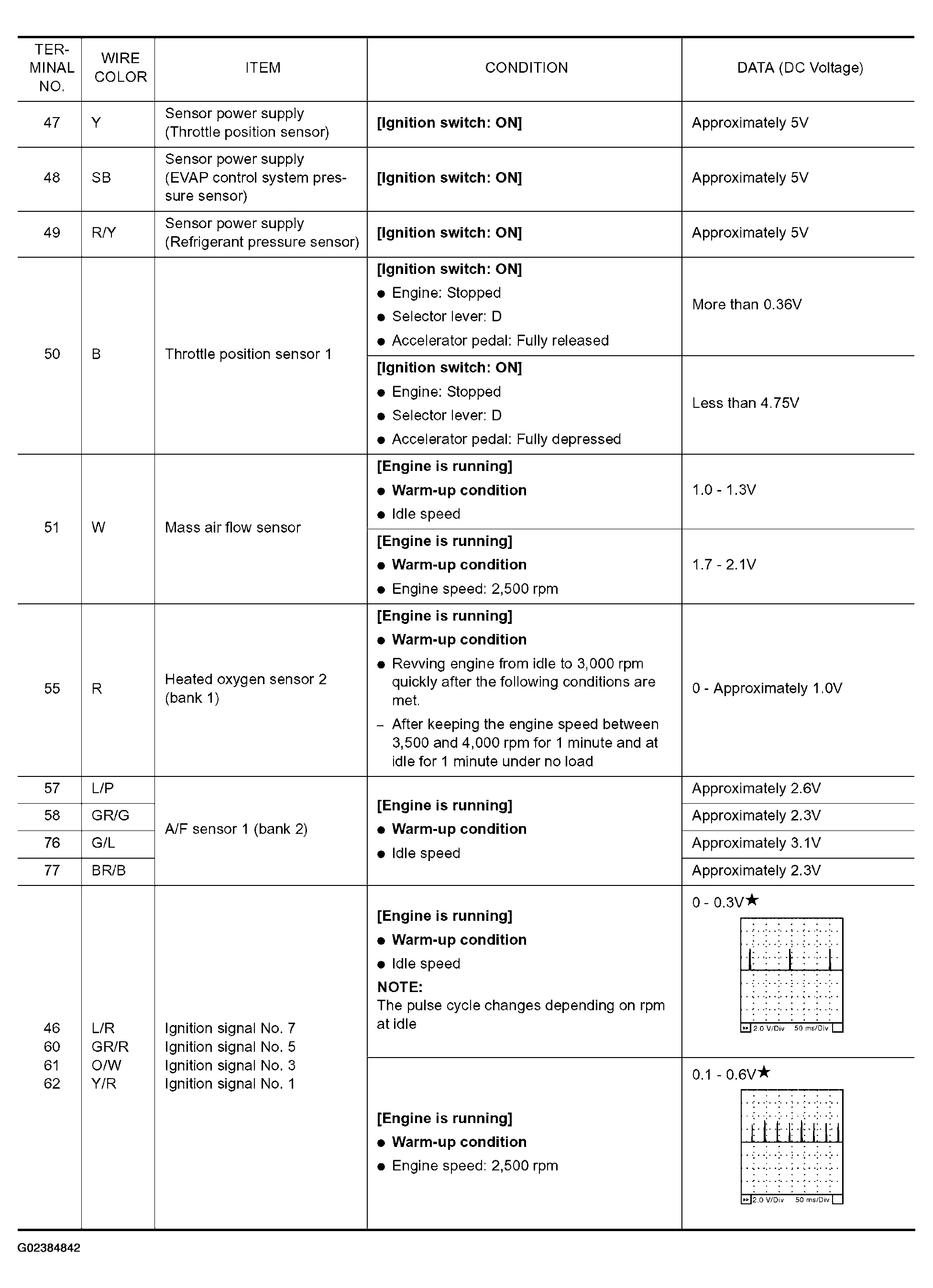

Fig 5: ECM Specification Data (5 Of 8)

G02384842

Courtesy of NISSAN MOTOR CO., U.S.A.

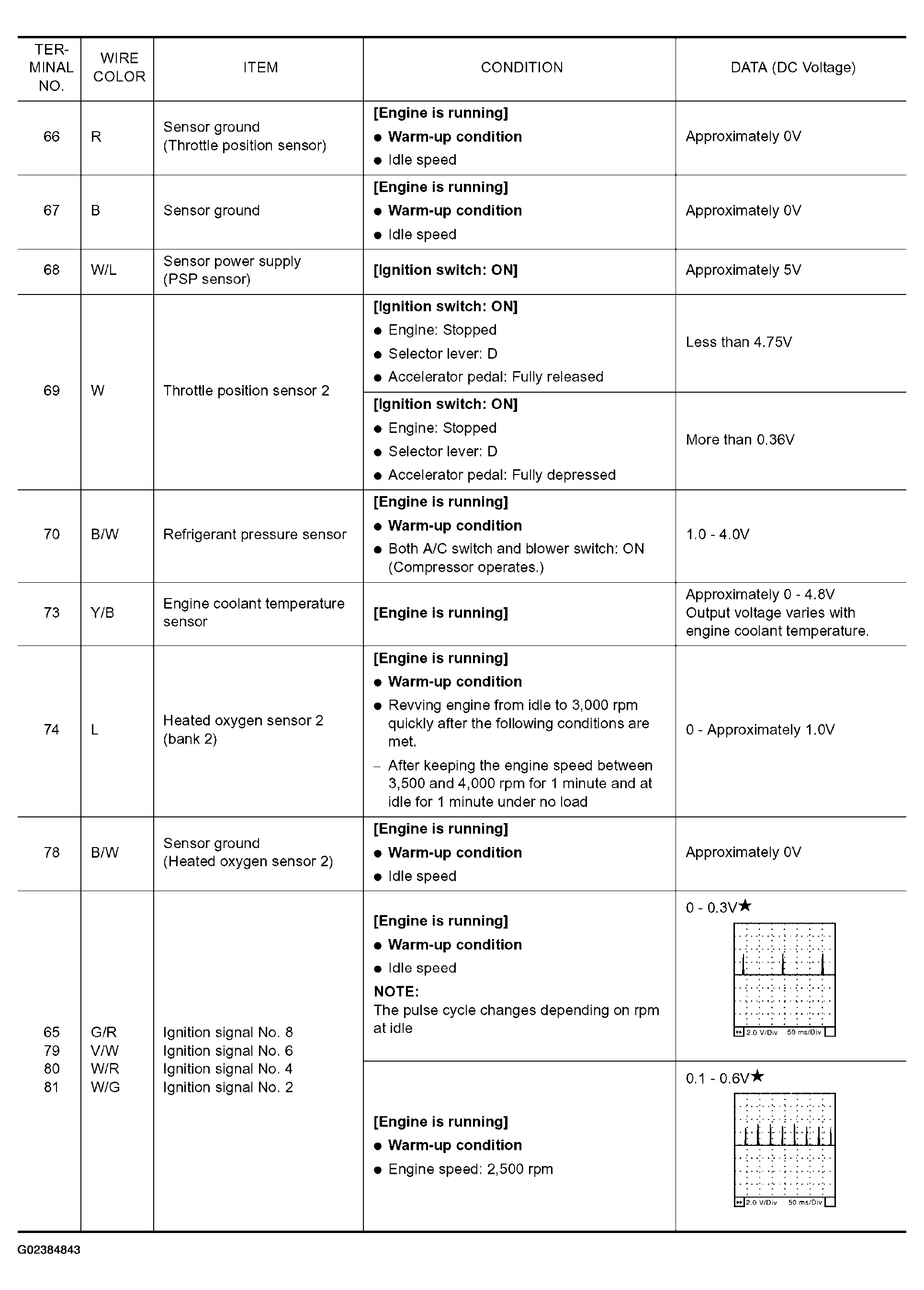

Fig 6: ECM Specification Data (6 Of 8)

G02384843

Courtesy of NISSAN MOTOR CO., U.S.A.

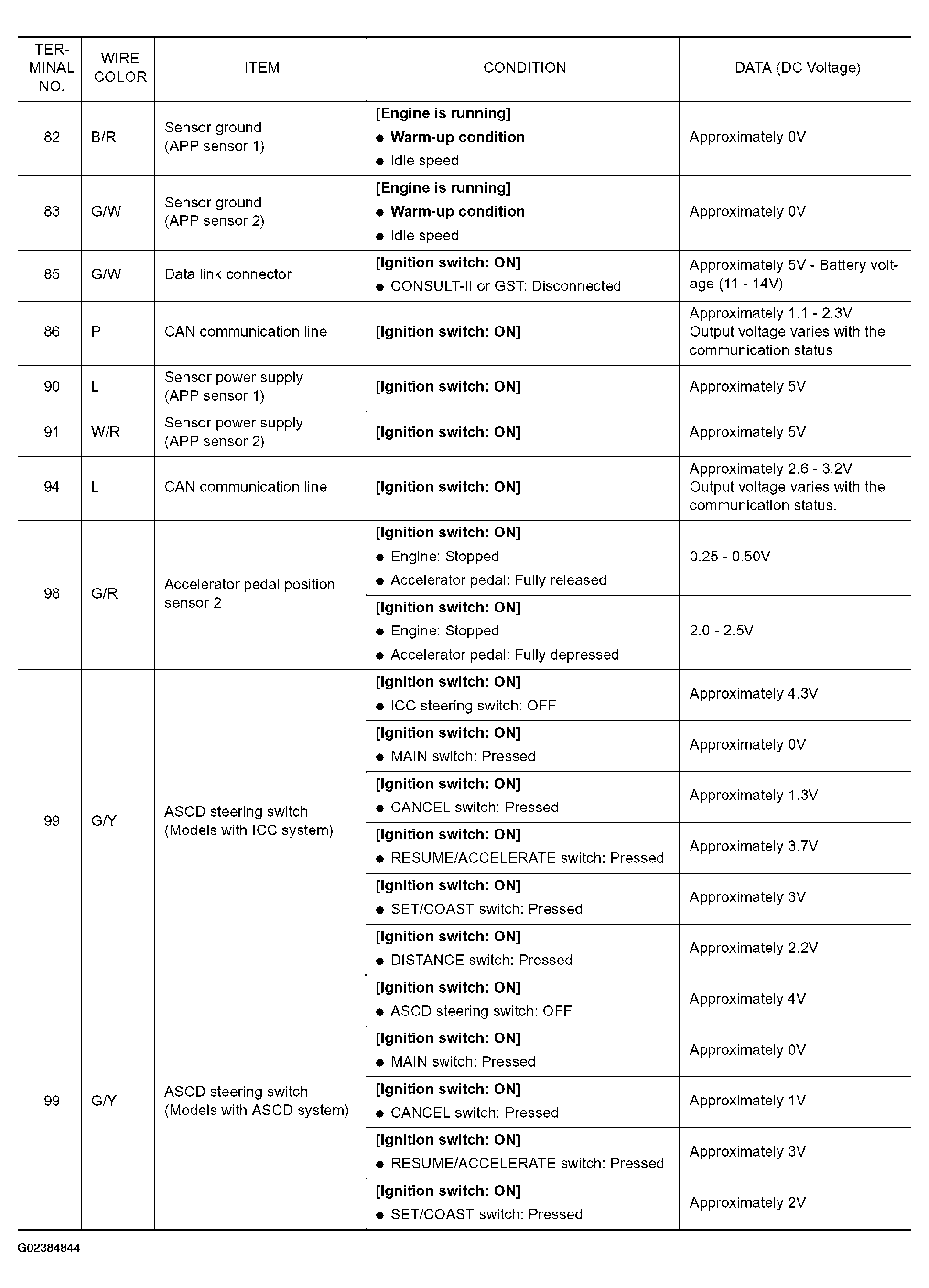

Fig 7: ECM Specification Data (7 Of 8)

G02384844

Courtesy of NISSAN MOTOR CO., U.S.A.

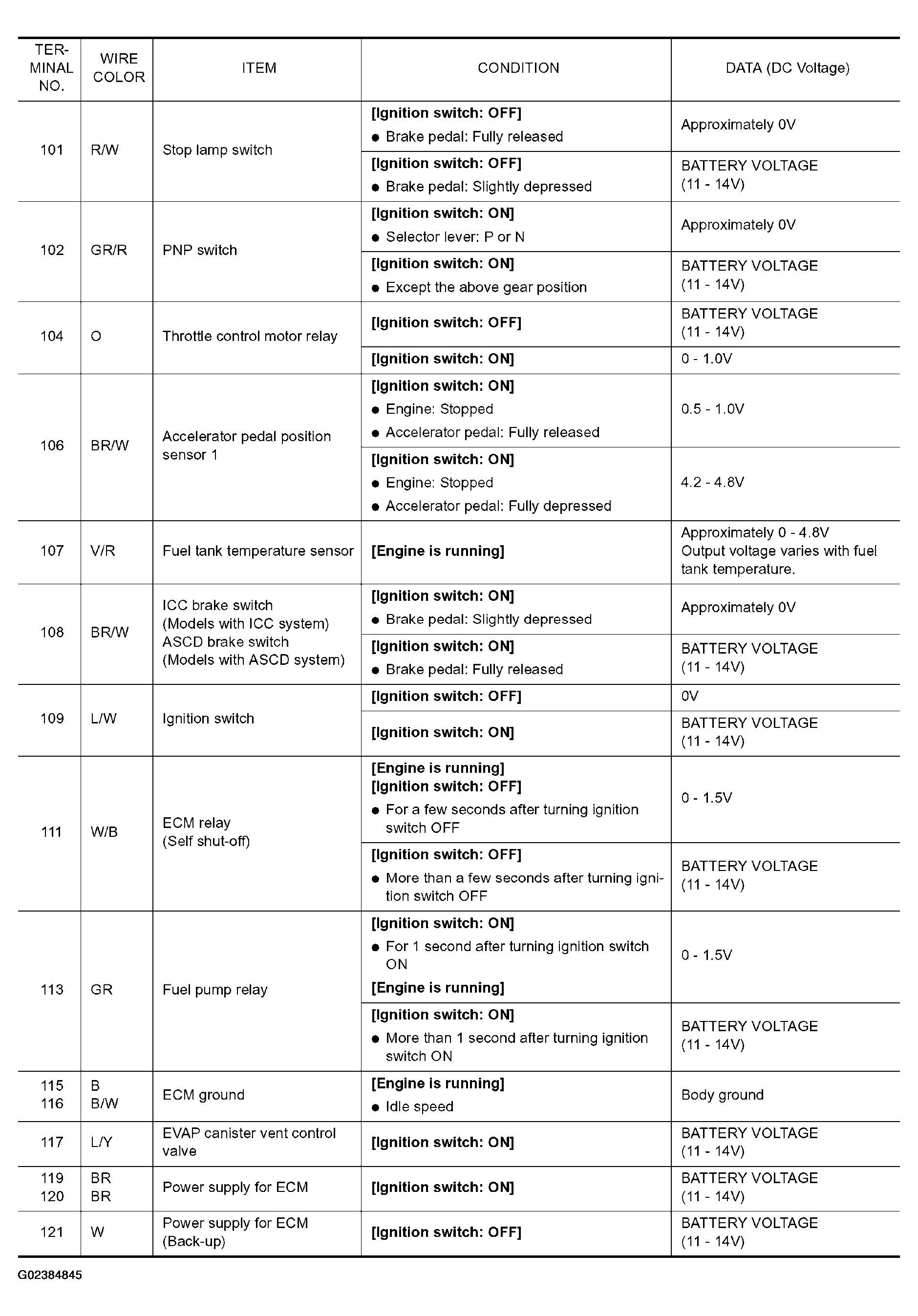

Fig 8: ECM Specification Data (8 Of 8)

G02384845

Courtesy of NISSAN MOTOR CO., U.S.A.
