Disassembly and Assembly: Notes

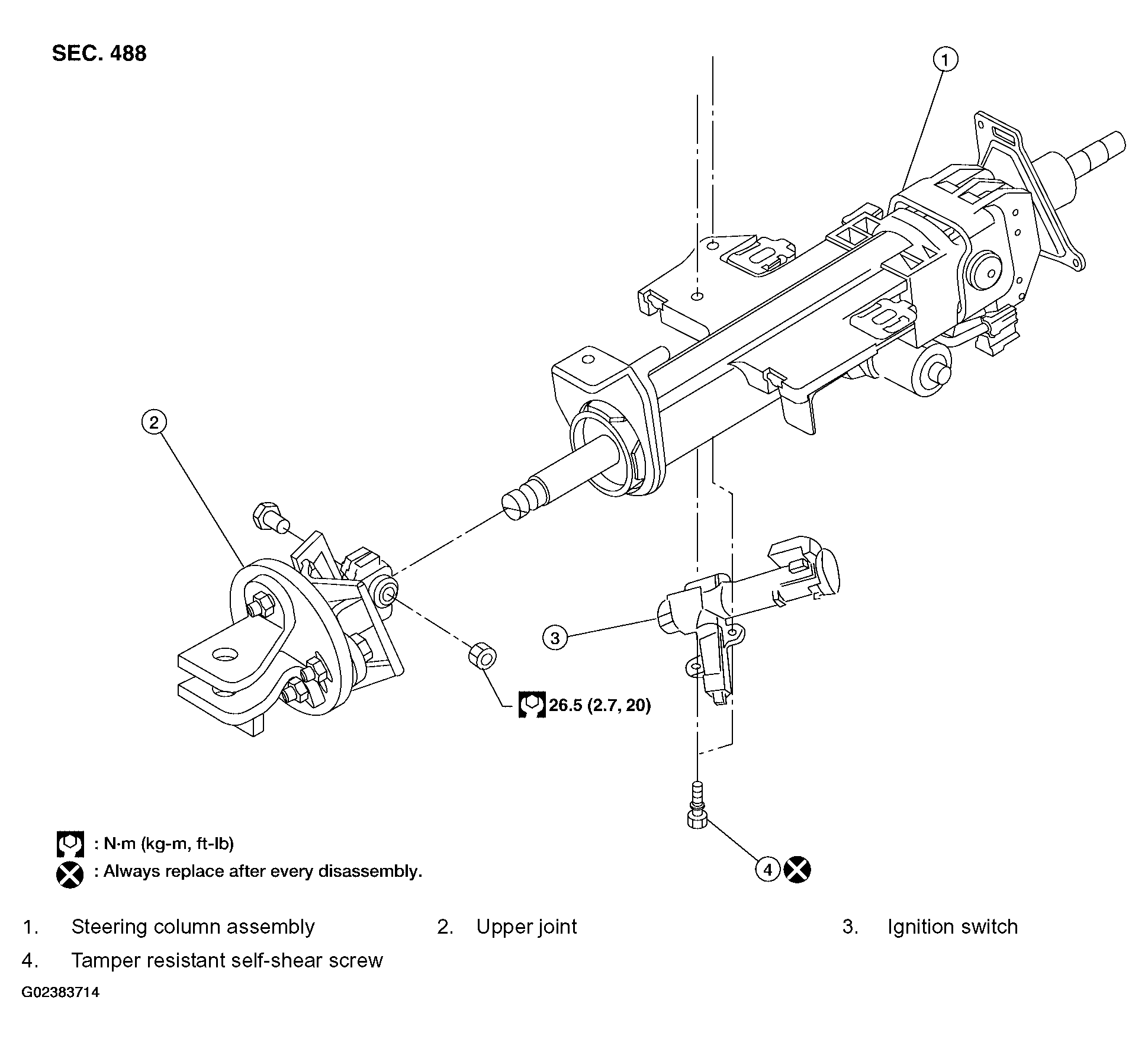

Fig 1: Steering Column Assembly Components With Torque Value Specifications
G02383714Courtesy of NISSAN MOTOR CO., U.S.A.
