Assembly (2)

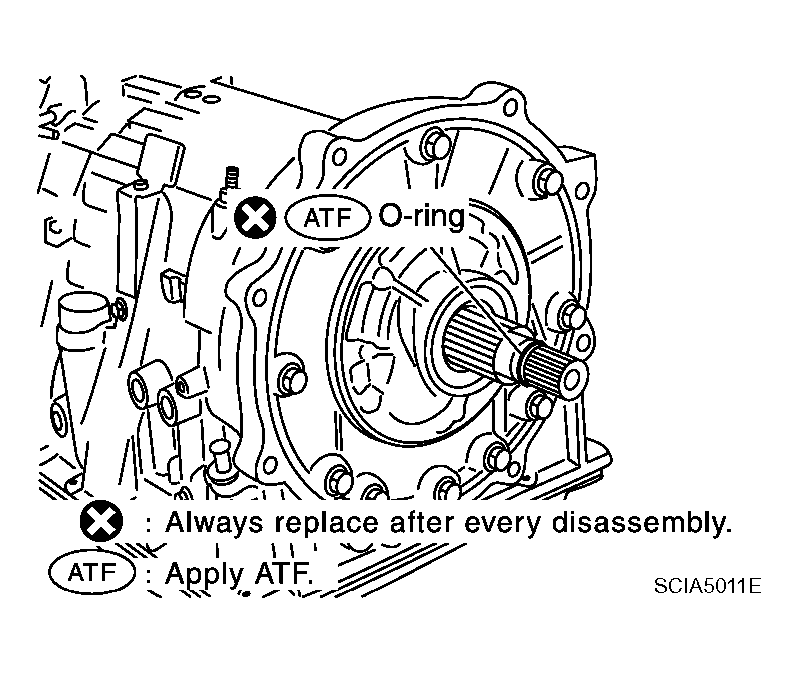

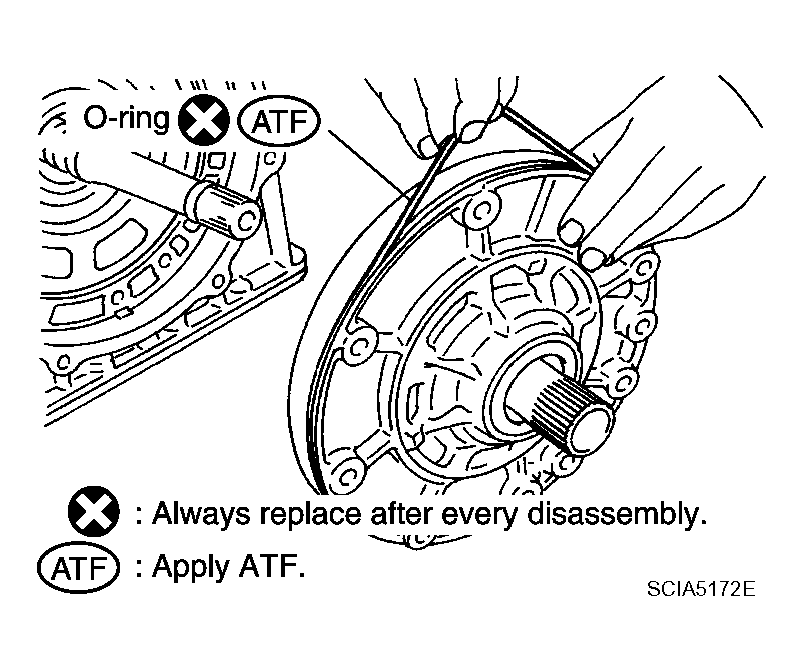

Install O-ring to oil pump assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 1: Installing O-Ring To Oil Pump Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

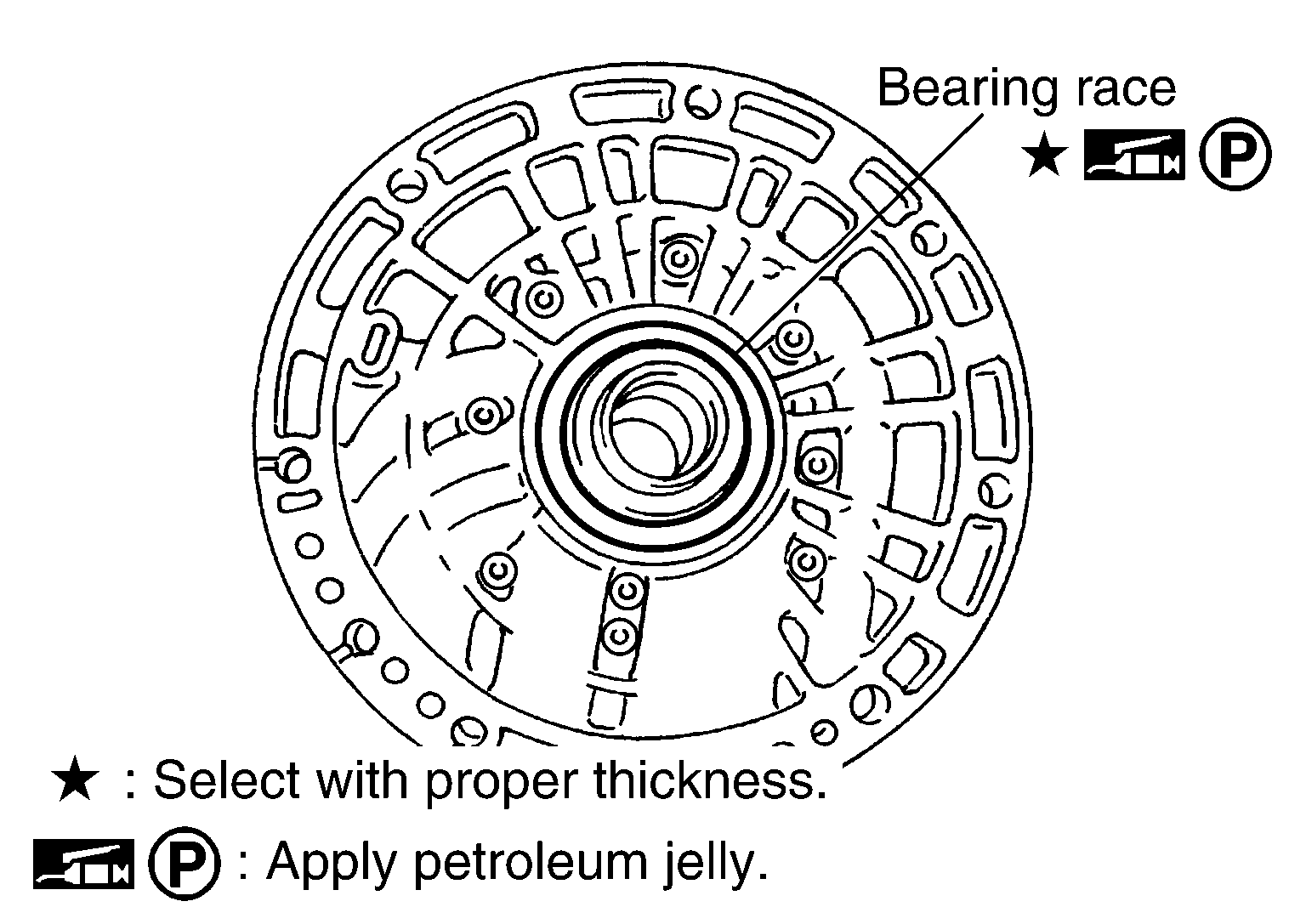

Install bearing race to oil pump assembly.
CAUTION: Apply petroleum jelly to bearing race.

Fig 2: Identifying Bearing Race To Oil Pump Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump assembly in transmission case.
CAUTION: Apply ATF to oil pump bearing.

Fig 3: Installing Oil Pump Assembly In Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

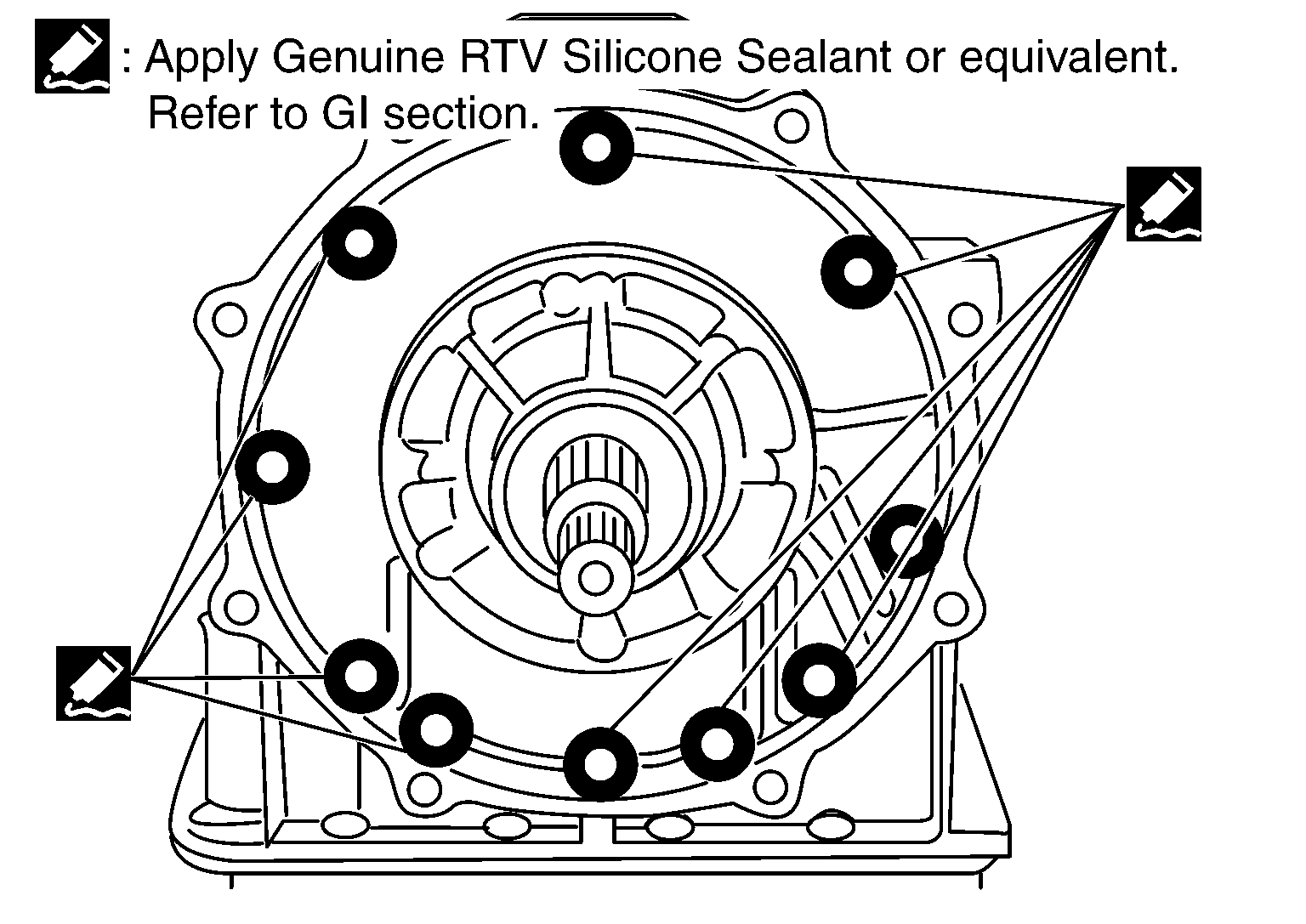

Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown in the figure.
CAUTION: Completely remove all moisture, oil and old sealant, etc. From the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.

For GI, go to GENERAL INFORMATION .

Fig 4: Identifying Sealant On Oil Pump Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

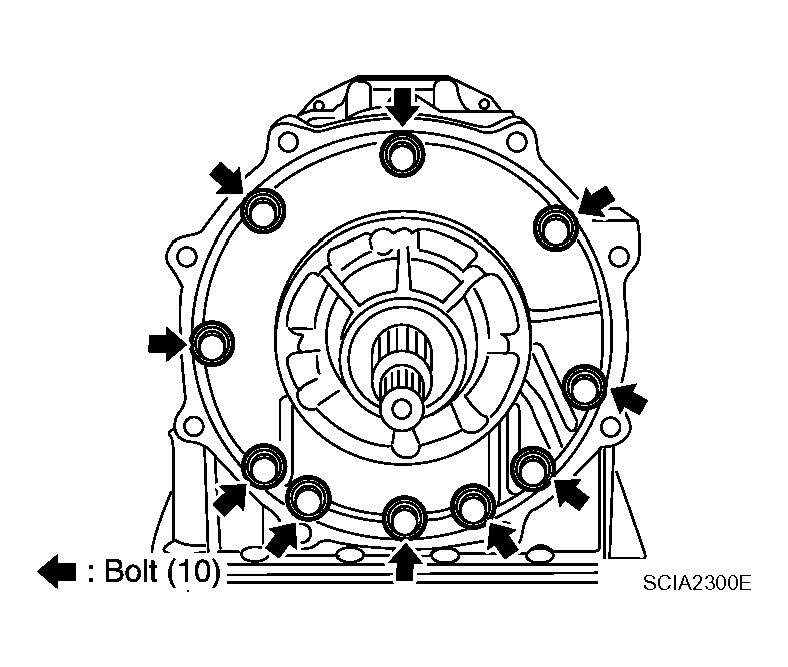

Tighten oil pump mounting bolts to specified torque. Refer to "COMPONENTS ".
CAUTION: Apply ATF to oil pump bushing.

Fig 5: Identifying ATF To Oil Pump Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to input clutch assembly.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 6: Identifying O-Ring To Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

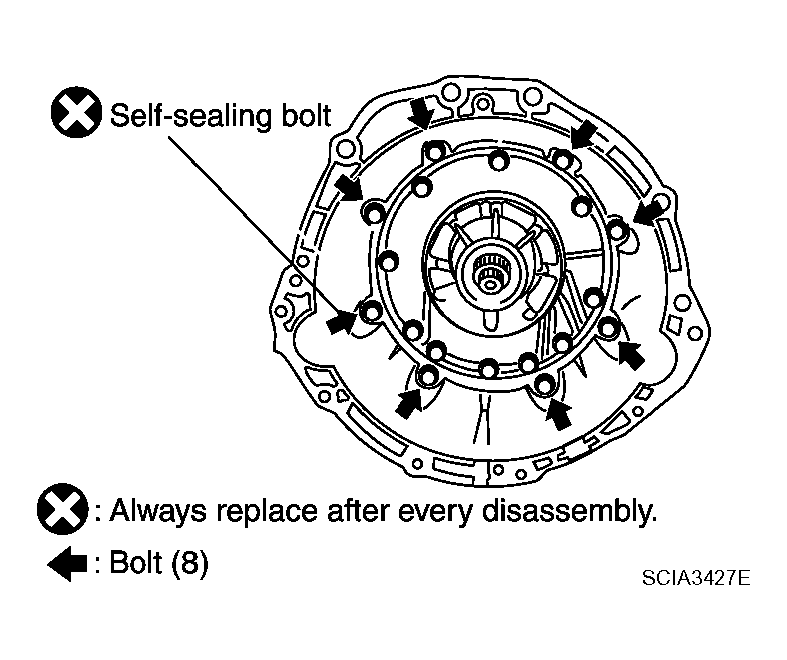

Install converter housing to transmission case, and then tighten converter housing mounting bolts to the specified torque. Refer to "COMPONENTS ".
CAUTION: Do not reuse self-sealing bolt.

Fig 7: Identifying Converter Housing To Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.

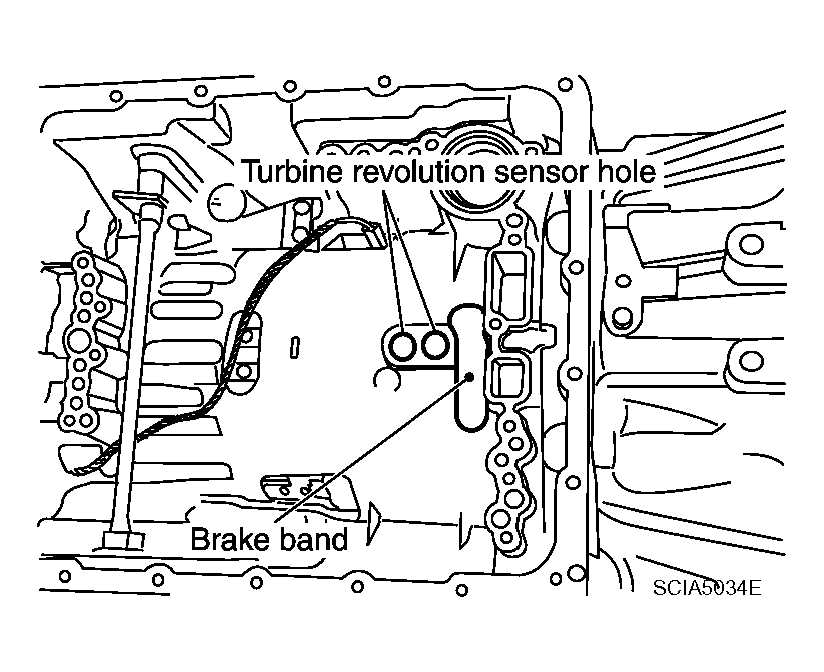

Make sure that brake band does not close turbine revolution sensor hole.

Fig 8: Locating Turbine Revolution Sensor Hole And Brake Band
Courtesy of NISSAN MOTOR CO., U.S.A.

Install control valve with TCM.

Connect TCM connector and park/neutral position switch connector.

Fig 9: Locating TCM And Park Neutral Position Switch Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T assembly harness connector from control valve with TCM.

Fig 10: Identifying A/T Assembly Harness Connector From Control Valve With TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect TCM connectors.

Fig 11: Locating TCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to A/T assembly harness connector.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 12: Locating Harness Connector O Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 to bracket.

Fig 13: Locating A/T Fluid Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM, and then tighten A/T fluid temperature sensor 2 mounting bolts to the specified torque. Refer to "COMPONENTS ".
CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.

Fig 14: Identifying A/T Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve with TCM in transmission case.
CAUTION:
- Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
- Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
- Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

  Fig 15: Locating Turbine Revolution Sensor Hole And Brake Band
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Assemble it so that manual valve cutout is engaged with manual plate projection.

  Fig 16: Identifying Control Valve With Manual Plate Projection
  Courtesy of NISSAN MOTOR CO., U.S.A.

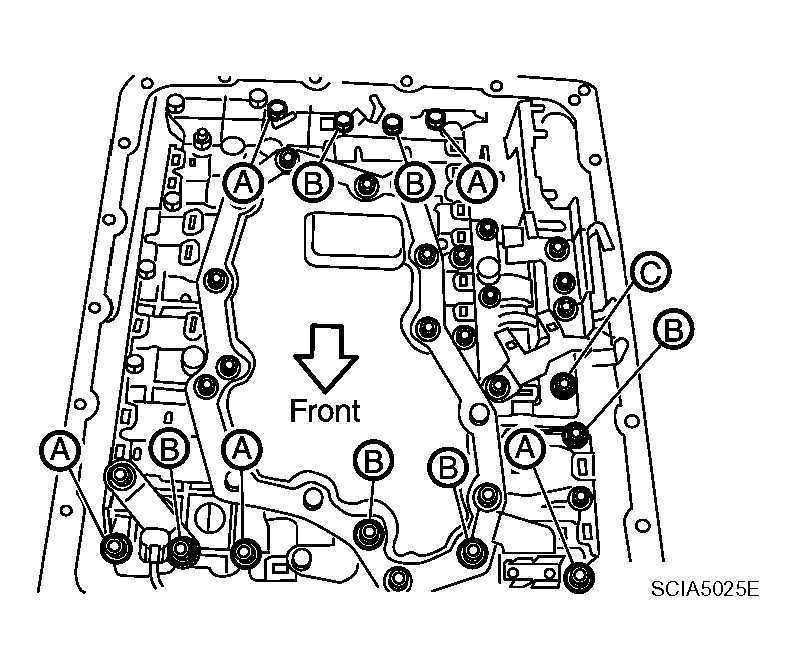

Install bolts A, B and C to control valve with TCM.

BOLT SPECIFICATION

Bolt symbol	Length mm (in)	Number of bolts
A	42 (1.65)	5
B	55 (2.17)	6
C	40 (1.57)	1

Fig 17: Identifying Bolts A, B And C To Control Valve With TCM

Courtesy of NISSAN MOTOR CO., U.S.A.

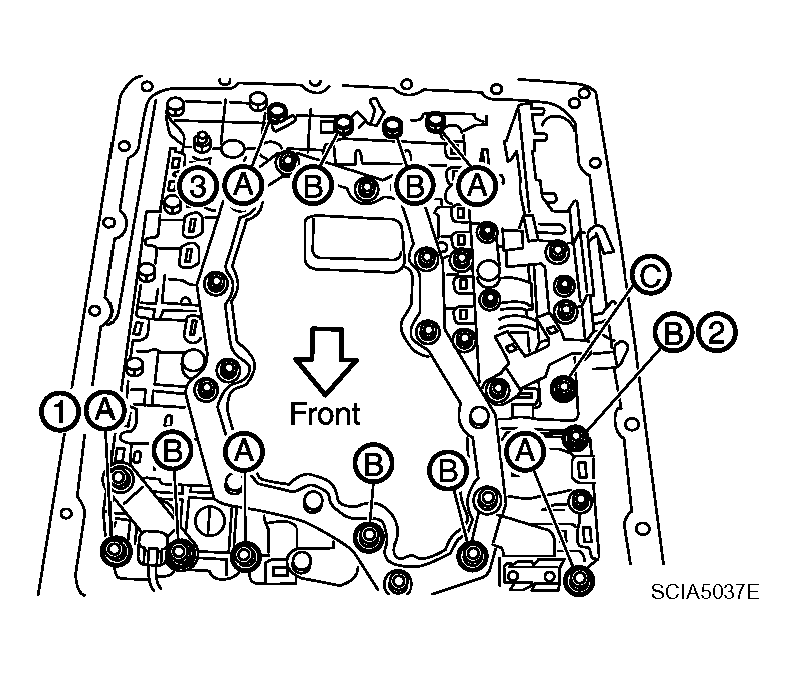

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts to the specified torque. Refer to "COMPONENTS ".

Fig 18: Identifying Tightening Bolts In Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.

Connect A/T fluid temperature sensor 2 connector.

Fig 19: Locating A/T Fluid Temperature Sensor 2
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.

Fig 20: Locating A/T Fluid Temperature Sensor 2 And Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.

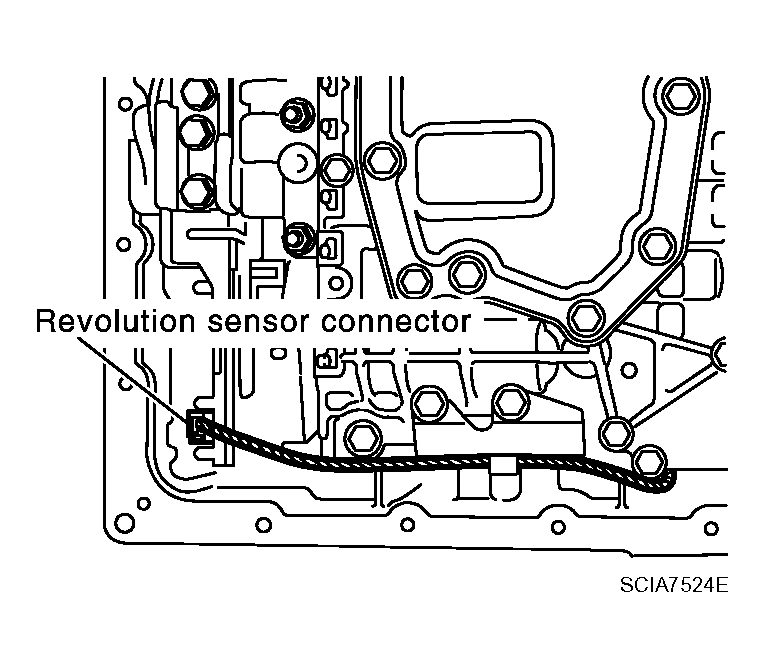

Connect revolution sensor connector.

Fig 21: Connecting Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

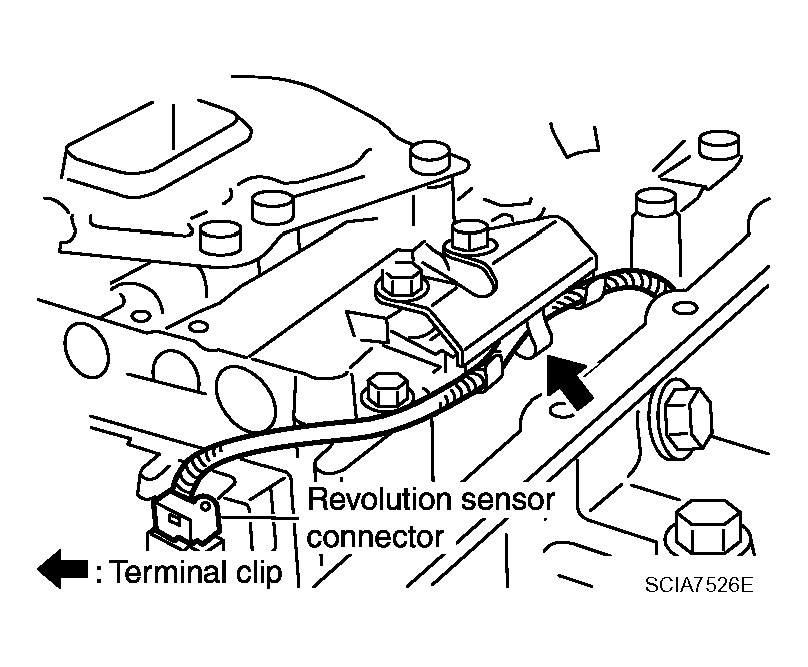

Securely fasten revolution sensor 2 harness with terminal clip.

Fig 22: Fastening Revolution Sensor Harness With Terminal Clip
Courtesy of NISSAN MOTOR CO., U.S.A.

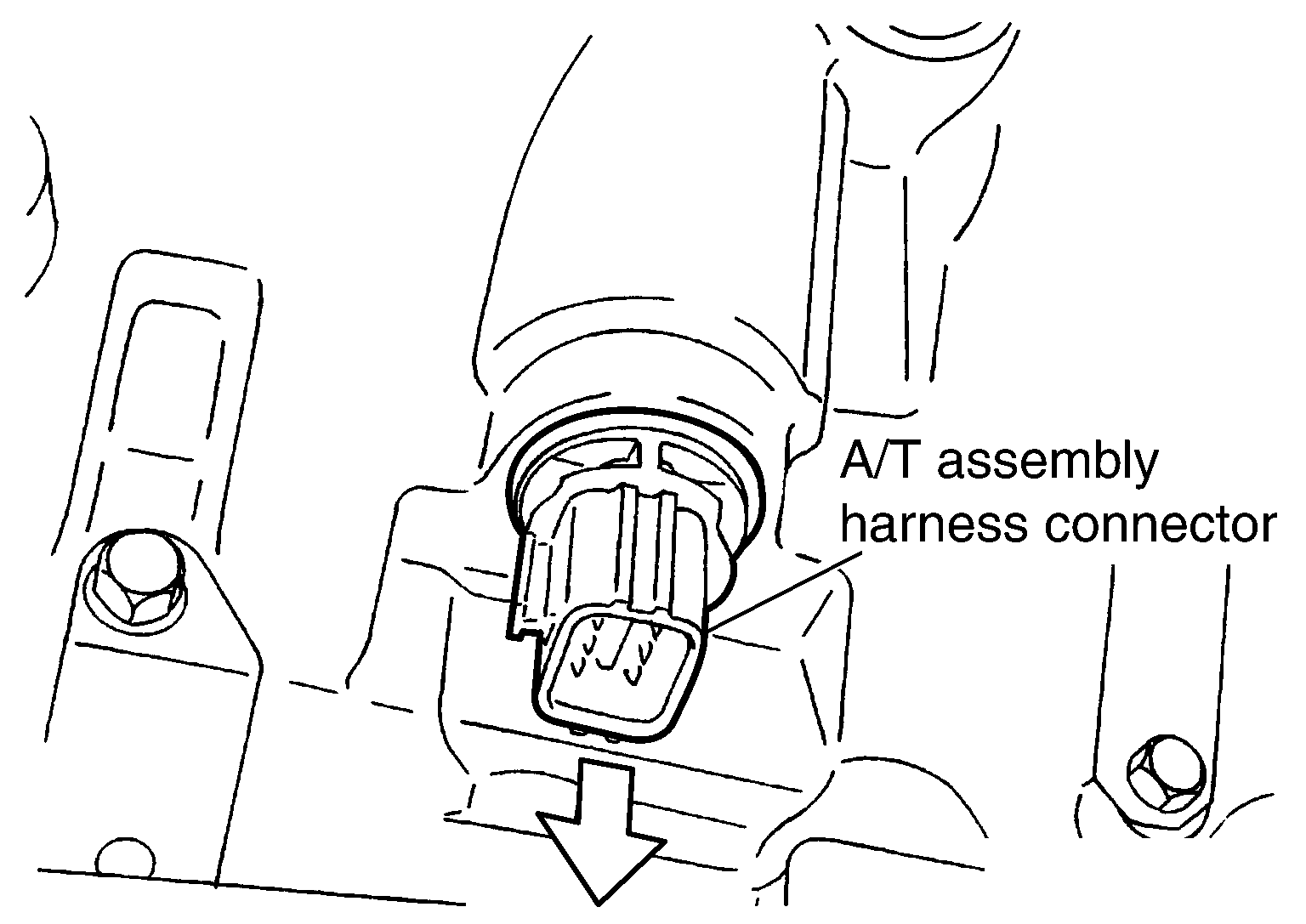

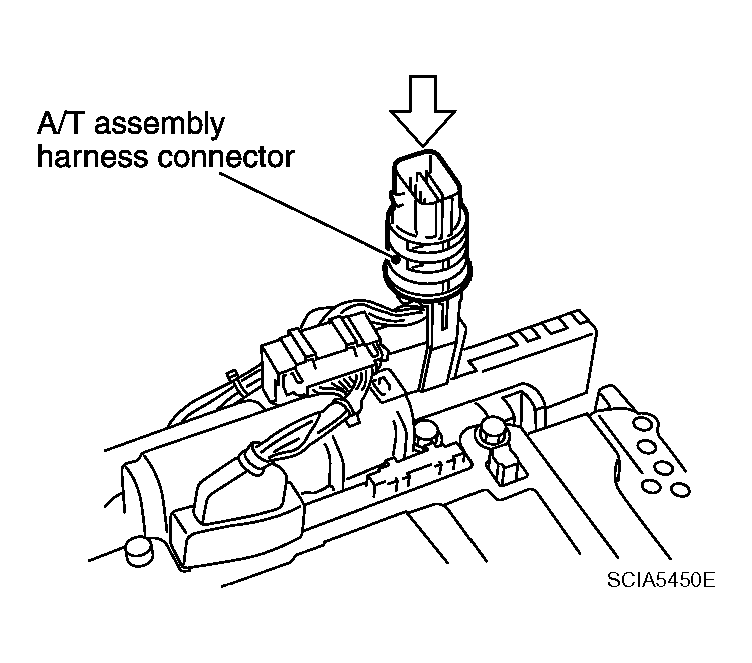

Pull down A/T assembly harness connector.
CAUTION: Be careful not to damage connector.

Fig 23: Pulling Down A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to A/T assembly harness connector.

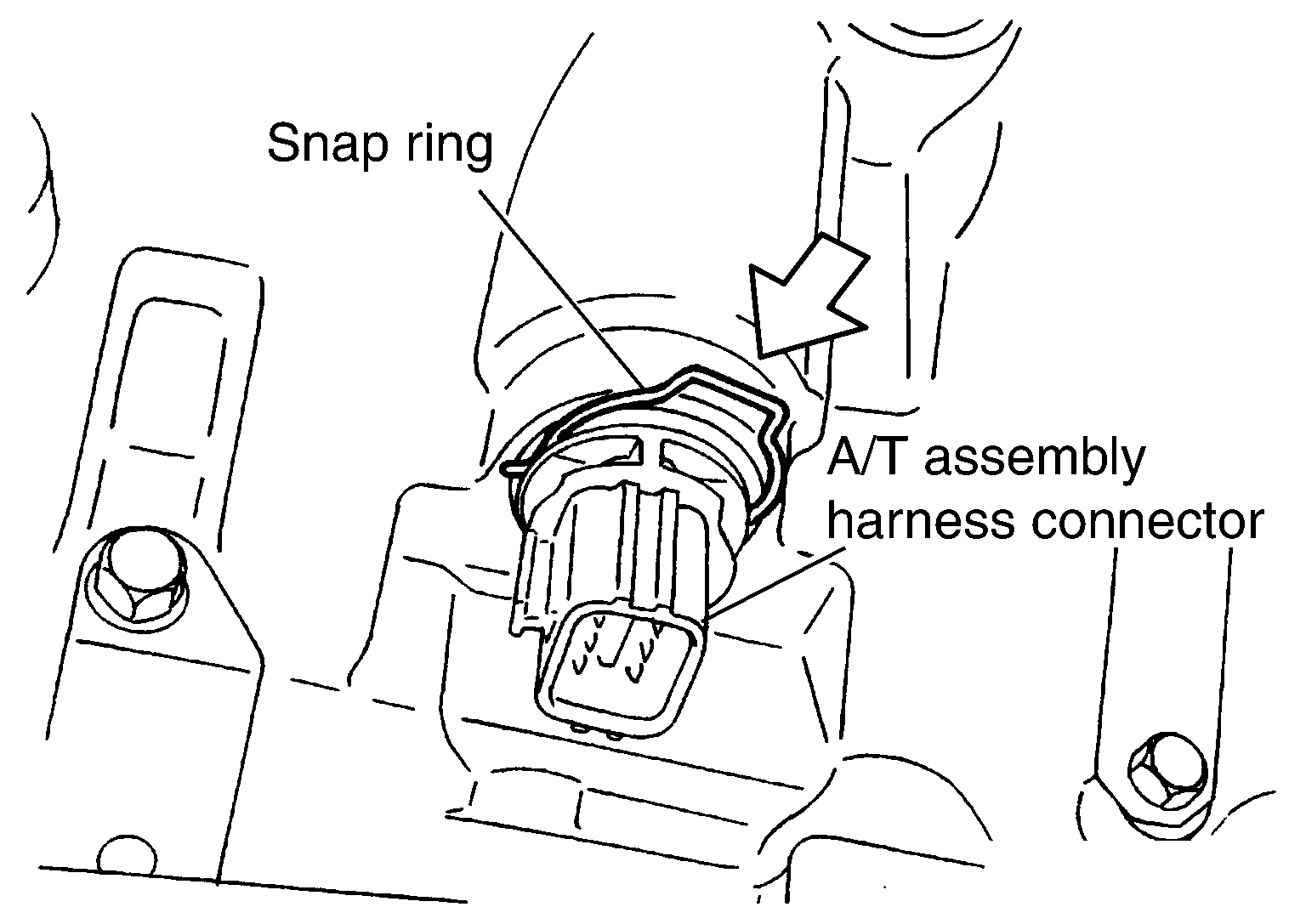

Fig 24: Installing Snap Ring To A/T Assembly Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Install magnets in oil pan.

Fig 25: View Of Magnets In Oil Pan
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan to transmission case.
1. Install oil pan gasket to transmission case.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
  - Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
2. Install oil pan to transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown in the figure.
  - Be careful not to pinch harnesses.
  - Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

    Fig 26: Identifying Oil Pan Bolts
    Courtesy of NISSAN MOTOR CO., U.S.A.

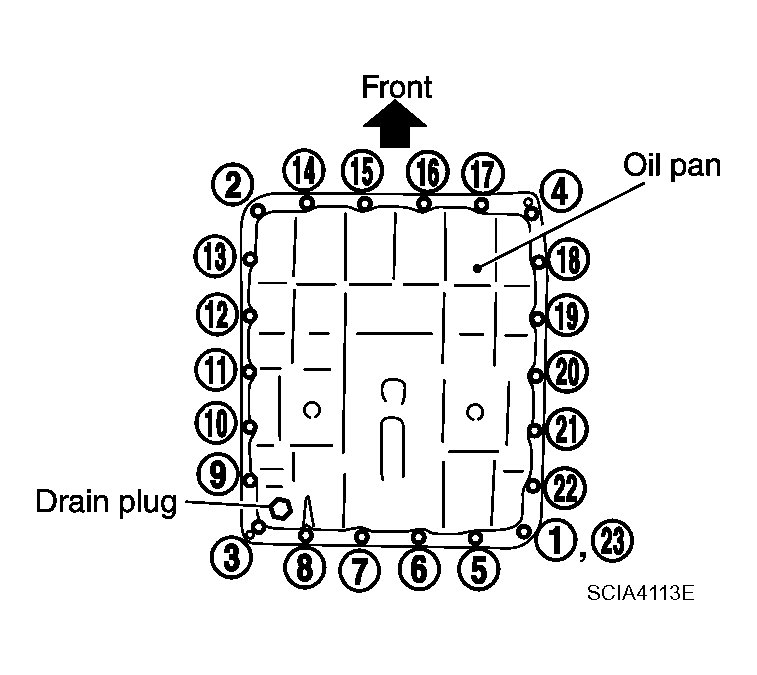

3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".
  CAUTION: Do not reuse oil pan mounting bolts.
Install drain plug to oil pan, and then tighten drain plug mounting bolts to the specified torque. Refer to "COMPONENTS ".
CAUTION: Do not reuse drain plug gasket.

Fig 27: Tightening Drain Plug Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter.
1. Pour ATF into torque converter.
  - Approximately 2 liter (2-1/8 US qt, 1-3/4 lmp qt) of ATF is required for a new torque converter.
  - When reusing old torque converter, add the same amount of ATF as was drained.

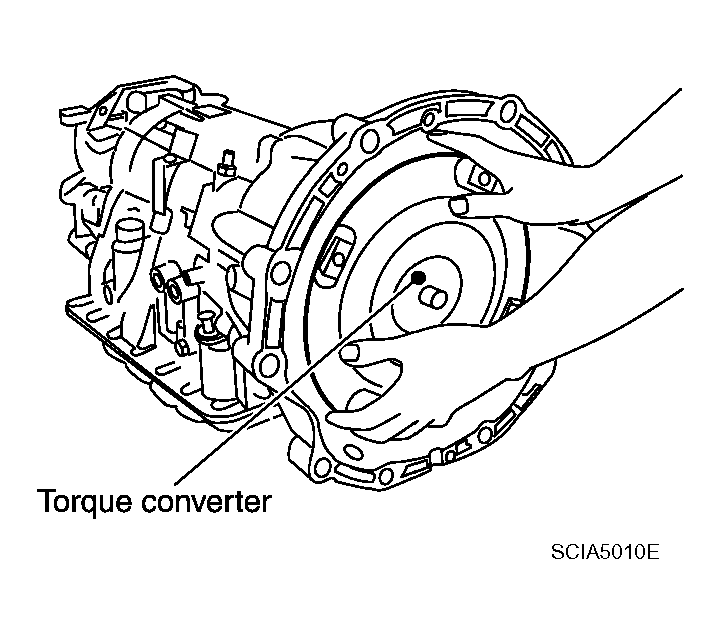

    Fig 28: Installing Torque Converter
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install torque converter while aligning notches of torque converter with notches of oil pump.
  CAUTION: Install torque converter while rotating it.

  Fig 29: Installing Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.

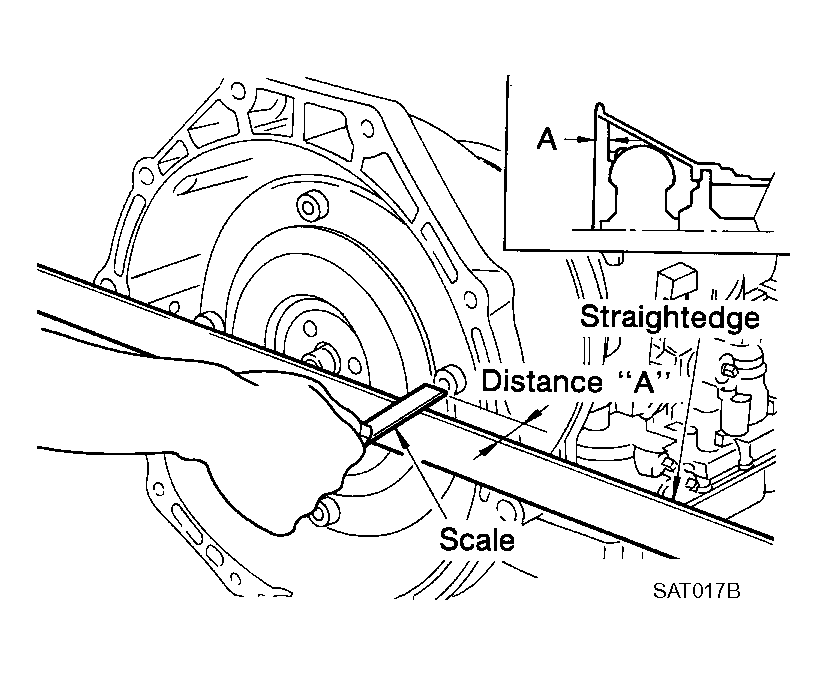

3. Measure distance "A" to check that torque converter is in proper position.
  Distance "A"

  VQ35DE models : 25.0 mm (0.98 in) or more

  VK45DE models : 22.0 mm (0.87 in) or more

  Fig 30: Measuring Distance
  Courtesy of NISSAN MOTOR CO., U.S.A.
